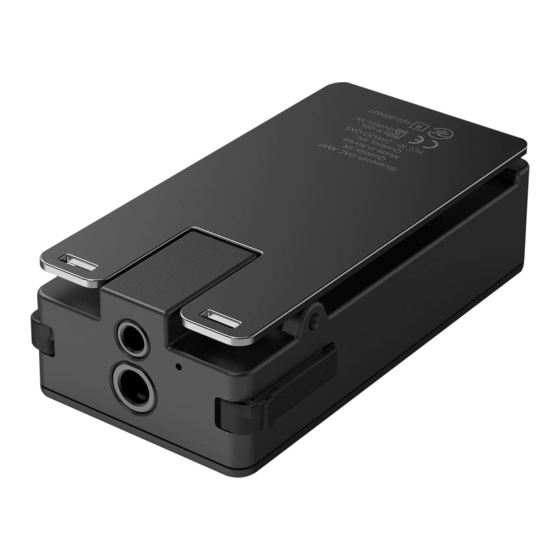

Qudelix-5k DAC AMP
User Manual
MARCH 2020
This document contains confidential information that is proprietary to Qudelix, Inc.
No part of its contents may be copied, disclosed, or conveyed to any party in any manner whatsoever without prior written permission from Qudelix, Inc.
Copyright
2019 by Qudelix, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Qudelix-5k and is the answer not in the manual?

Questions and answers

Related Manuals for SiliconDust Qudelix-5k

Summary of Contents for SiliconDust Qudelix-5k

  • Page 1 Qudelix-5k DAC AMP User Manual MARCH 2020 This document contains confidential information that is proprietary to Qudelix, Inc. No part of its contents may be copied, disclosed, or conveyed to any party in any manner whatsoever without prior written permission from Qudelix, Inc.
  • Page 2 Key Specification Bluetooth 5.0 • Qualcomm QCC5124 Bluetooth Chipset • Dual ES9218P SABRE HiFi® DAC • Note: 3.5mm output works with single DAC only. Dual DAC is available with 2.5mm output. • aptX Adaptive, LDAC, AAC, aptX-HD, aptX, SBC • High-Resolution USB DAC 96KHz / 24-bit •...
  • Page 3 Audio Output & Microphone 2.5mm Balanced Audio Output Max. 2V RMS (80mWatt/Ch) Built-In Microphone 3.5mm Unbalanced Audio Output Max. 4V RMS (240mWatt/Ch)
  • Page 4 USB-C Connector WARNING Warranty void if opened DO NOT disassemble or open the case. The top and bottom parts are tightly bonded internally and can't be opened even if the screws are removed. USB-C 500mA Battery (2.5 Hours Charging Time) USB Audio Class 1.0 44.1/48/88.2/96KHz 24-bit NOTE:...
  • Page 5 Buttons & RED LED Volume Down (-0.5dB) RED LED Volume Up (+0.5dB) NOTE: A firmware update may change the button functionality.
  • Page 6 Buttons & BLUE LED Pairing Mode (long press 3 sec) Play/Pause (Single Click) Next Track (Double Click) Answer Incoming Call (Single Click) BLUE LED Power On/Off (long press 3 sec) Previous Tack (Double Click) NOTE: A firmware update may change the button functionality.
  • Page 7 RF ANTENNA 3-Dimensional LDS(Laser Direct Structuring) ANTENNA LDS Antenna is printed on the bottom case. Between the top case and the red LED button. NOTE: 5K provides the best RF performance in most use cases. However, for the optimal performance, please keep this area away from any metallic surfaces.

  • Page 8: Warranty

    Warranty One year warranty • From the date of the first app connection • Automatically activated from the first connection with the companion mobile app • Any problem arises due to a defect in manufacturing the product will be repaired or replaced by Qudelix •...

  • Page 9: Fcc Information To User

    Class B FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
