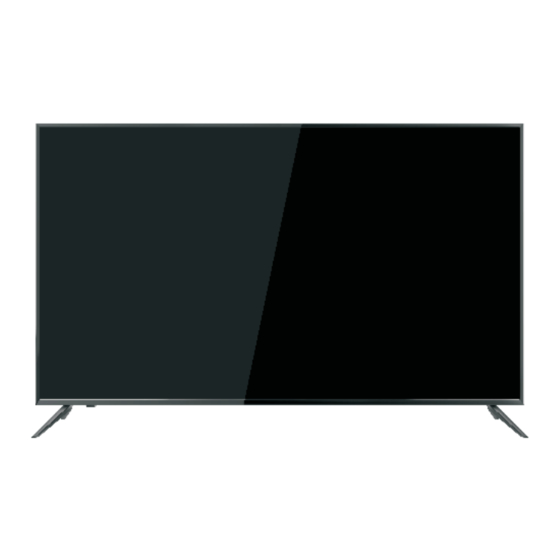

4K Ultra-HD LED TV
LT-43MA770
INSTRUCTIONS
If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the
required programming code.
FOR RECYCLING INFORMATION, PLEASE CONTACT CUSTOMER SERVICE.
(43" class/ 42.51 diagonal)
ATTENTION
PLEASE HAVE THE MODEL NUMBER READY PRIOR TO CALLING
CUSTOMER SERVICE - 1-888-582-8870
Before operating the unit, please read this manual thoroughly.
"
Advertisement
Related Manuals for JVC LT-43MA770
Summary of Contents for JVC LT-43MA770
- Page 1 4K Ultra-HD LED TV LT-43MA770 (43" class/ 42.51 diagonal) " INSTRUCTIONS ATTENTION If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code. PLEASE HAVE THE MODEL NUMBER READY PRIOR TO CALLING FOR RECYCLING INFORMATION, PLEASE CONTACT CUSTOMER SERVICE.
-
Page 2: Safety And Warnings
SAFETY AND WARNINGS The lightning flash with arrowhead symbol,within an equilateral triangle is intended to alert the user to the presence CAUTION of uninsulated dangerous voltage within the product’s RISK OF ELECTRIC SHOCK! DO NOT OPEN! enclosure that may be of sufficient magnitude to constitute a ATTENTION RISQUE DE CHOC ELECTRIQUE! risk of electric shock. - Page 3 SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions The symbol indicates that dangerous voltages constituting a risk of electric shock 1) Read these instructions. are present within this unit. 2) Keep these instructions. 3) Heed all warnings. The symbol indicates that there are 4) Follow all instructions.
- Page 4 SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not remove the cabinet back from your set. its stand. You should pay special attention to children. Refer servicing to qualified service personnel.
-
Page 5: Table Of Contents
Contents Safety and warnings..................1-3 Introduction....................5 Installation....................6-9 Wall Mount ....................10 Remote Control...................11 Operation.....................12-15 Trouble Shooting..................16... -
Page 6: Introduction
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. “This product is manufactured, distributed, serviced and warranted exclusively by SHENZHEN MTC CO., LTD.. “JVC” is the trademark of JVC KENWOOD Corporation, used by such company under license.”... -
Page 7: Installation
INSTALLATION Front panel 1: Remote control sensor. 2: Indicator LED: RED STANDBY. 3: Key board ≤8m KEYBOARD The keyboard is located at the bottom left near the right side of signal indicator. Rocker Bottom 1. Middle Button: press longtime for “power” function; press once for “source”... - Page 8 INSTALLATION Antenna ADAPTER (NOT SUPPLIED) OUTDOOR OR INDOOR ANTENNA (NOT SUPPLIED) PLUG 75Ω CABLE ANTENNA OR CABLE TV TWIN-LEADER FEEDER (300Ω) Note: Aerial connections:F connector. Input impendance:75 unbalanced. Power connection Please note: After unpacking, allow the TV to reach ambient room temperature before connection the TV to the mains power socket.
- Page 9 INSTALLATION Base Stand Assembly Instruction base stand Prepare to place the TV with the display side down on a flat surface. Due to the size and weight of this TV, the use of 2 people is recommended when moving it. Ensure the table or desk you use provides a flat, totally clean surface, and use a soft cloth between the face of the TV and the table to protect the TV's screen.
- Page 10 INSTALLATION AV Equipment You can use the rear input terminals as follows. HEADPHONE HDMI1(ARC) HDMI2 HDMI3 YPbPr HDMI VIDEO EQUIPMENT with YPbPr OPTICAL VIDEO VIDEO EQUIPMENT Audio Receiver TO VIDEO OUTPUTS TO AUDIO OUTPUTS Video Equipments: VCR, Multi Disc Player, DVD Player, Camcorder, Video Game, etc. Video format that YPbPr supports: 480i, 576i, 480p, 720p, 1080i, 1080p...
-
Page 11: Wall Mount
Wall Mount Instruction for Wall Mount A wall mount kit (purchased separately) would allow you to mount your JVC TV on the wall. For detailed information on installing the wall mount, refer to the instructions provided by the wall mount manufacturer. It is strongly recommended to contact a technician for professional assistance for wall mount installation. -
Page 12: Remote Control
REMOTE CONTROL 1: POWER To set the TV standby or on. 2: NUMBER KEY For direct access to program. Displays the main on-screen menu. 4: CURSOR To move within the menu. SLEEP 5: EXIT Used to exit menu. 6: VOL+/- To adjust sound level. -
Page 13: Operation
OPERATION 1. PICTURE MENU 3. TIMER MENU In this menu,you can adjust the picture effect, such as In this menu, you can adjust the sleep timer, time zone, contrast, brightness, etc. etc. Press to select,press OK to adjust. Press to select, press OK to adjust. Sleep Timer Time Zone Pacific... - Page 14 OPERATION 1).CC Mode: Switching close caption mode. 5.3 Favorite: 2). Advanced selection: Available only for ATSC Press OK button to choose/delete the favorite channel. program. 5.4 Show/Hide 3).Option: Used to edit CC font. Press OK button to display or hide current channel. 5.5 DTV signal Display DTV strength signal.
- Page 15 OPERATION Content Description Rating Rating Content (Fantasy (Violence) (Sexual (Adult (Sexually Children: Intended for younger children under the age of 8 years. violence) situation) language) suggestive dialog) Pays careful attention to themes that could threaten their sense of security and well-being. TV-Y (All children) C8+ Children over 8 years old: Contains no portrayal of violence as the...
- Page 16 OPERATION 7. Displaying JPEG and MJPEG files by using USB Port If in photo mode , Press to select folder which contains JPEG picture. You can display the JPEG and MJPEG files by using 7.6 If in movie mode, Press to select folder the USB port that is located on the rear panel: which contains MJPEG movie.
-
Page 17: Trouble Shooting
