- Page 1 Instruction Manual for SL-800A COUNTER TOP MIXER Installation, Operation and Maintenance Instructions Revised in December, 2009...
-
Page 2: Table Of Contents

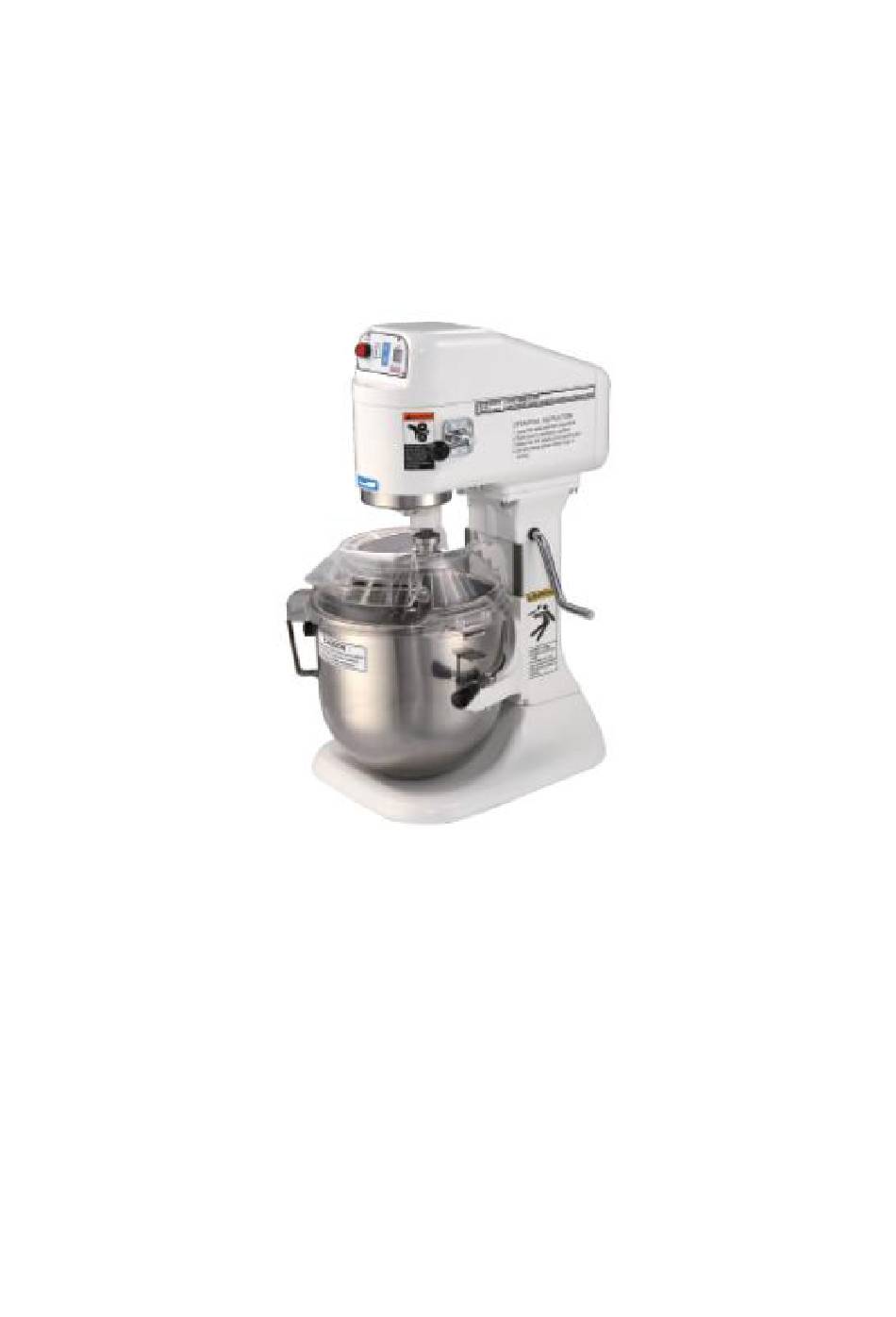

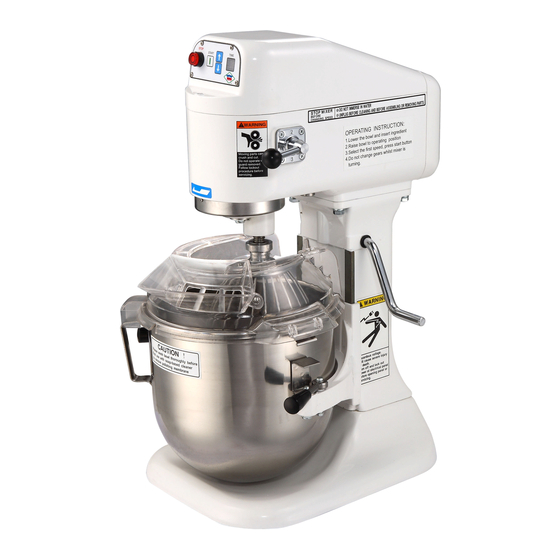

SL-800A SPECIFICATION Model SL-800A Bowl Size 8 Quarts (7.6 Liters) SL-800A is a desk top planetary mixer Motor 1/4HP (0.20KW) designed for commercial use by the professional Electrics 110V/60HZ, caterer. It has a total bowl capacity of 8 Quarts, 220V/50HZ... - Page 3 Moving parts can crush and cut. (1) Push STOP button ON and OFF only Do not operate with guard removed. Follow lockout procedure before servicing. Do not pull or twist!! OPERATING INSTRUCTION: 1. Lower the bowl and insert ingredient 2. Raise bowl to operating position 3.
-
Page 4: Installation
INSTALLATION - The minimum requirement for all electrical The machine is supplied factory lubricated and equipment is correct operation between air temperature of +5°C and +4°C. ready to run. It can be positioned on any substantial - Electrical equipment is capable of operating work surface or bench which is capable of correctly when the relative humidity does not supporting a load of 30kg. -
Page 5: Correct Use Of The Mixer
TOOL SELECTION CORRECT USE OF THE MIXER The beater, whisk and spiral dough hook are It is the responsibility of the users to use the meant for the work implied by their names. mixer correctly within the recommended limitations. Do not use the beater for dough making or the Always follow the instructions on the side of the whisk for anything other than whisking, aerating or machine when changing speed. -
Page 6: Fitting The Mixing Tool
FITTING THE MIXING TOOL Slide the bayonet fitting of the tool onto the drive shaft and twist clockwise to secure it in position. CAPACITY To remove the mixing tool, The following table lists the recommended slide the tool up the shaft slightly capacities of finished weights of regular mixes. -
Page 7: Controls
CONTROLS Noise Test Report (1) Model No.: SL-800A (2) Background noise: Add Flour: background noise level is 54.0dB(A). Dry running: background noise level is The control panel is shown above, start the mixer by pressing the “start”... -
Page 8: Fault Finding Chart
should be washed in hot soapy water, rinsed and dried before being put into storage. Do not wash the tools in a dishwasher as the polished finish will be adversely affected by the dishwashing chemicals. - Steady state voltage: 0.9-1.1 of nominal voltage. - Frequency: 0.99-1.01 of nominal frequency continuously. -
Page 9: Maintenance
MAINTENANCE Regular maintenance is necessary on all machines if they are to remain in good working order. It is strongly recommended that this be carried out by trained technicians. GEARBOX LUBRICANT Please refill the lubricant inside the gearbox every 5 years. We recommended that this servicing or maintenance work must be carried out by trained technicians. - Page 10 Item Description Aker Part number Overload Protection SANG MAO 110V/5A 220V/4A Microswitch of Safety Guard ROUZET 125V/250V 5A Microswitch of Height Adjuster Omron V-212-1C6 Terminal Block 300V/12V IC Board ZEON 2-MH 29009 Emergency Stop Button Switchlab DC/6A 24V AC/5A 250V Start Button, Timer IC Control Microchip PAC 16C57-C/P...
- Page 13 ITEM QTY. DESCRIPTION REMARK screw:M5x20 screw:M4x30 transmission case cover gasket digital control panel screw:M3x6 emergency stop button hex screw:M6x16 spring washer:M6 pin:M6x15 transmission case label, cleaning instructions warning label warning label label, agitator direction nut:M6 washer:M6x16x1 pinion beater:17T ball bearing:#6001Z planetary gear:56T planetary holder planetary holder cover...
- Page 14 ITEM QTY. DESCRIPTION REMARK spring, for planetary shaft planetary washer:13.1x1 gear arm gasket o-ring:3x18 ball socket spring spring gear arm plate Gear Arm Assembly black plastic gear knob gear arm plate gear arm shaft screw nut:M4x10 nut:M10 pin:3x10 Parts Configuration may vary. Please specify worm gear frequency when ordering.
- Page 15 ITEM QTY. DESCRIPTION REMARK spring washer:M8 hex screw:M8x25 strain reliever cord and plug screw:M5x20 screw:M5x21 circuit breaker motor capacitor capacitor attachment hex screw:M5x45 bowl cradle screw:M4x4 clip bolw locking latches plastic knobs spring Bowl Clamp Assembly washer:M5 nut-stop:M5 screw:M5x10 bowl lift bracket bowl lock pins spring washer:M8 nut-stop:M8...
- Page 16 ITEM QTY. DESCRIPTION REMARK o-ring:S15 Parts Configuration may vary. oil bushing- 28mm o-ring:S15 Parts Configuration may vary. s/s flat wahser:M8x22x2 screw and nut:M8 rollers:6.5x12.9 slice spring clutch sleeve drive shaft key-way:5x5x18 key-way:4x4x28 key-way:5x5x26 ball bearing:#6200Z transmission shaft Parts Configuration may vary. key-way:5x5x12 key-way:5x5x14 third speed gear:36T...
- Page 17 ITEM QTY. DESCRIPTION REMARK 152_1 sleeve, for microswitch 152_2 nut:M3 screw:M5 microswitch fixture microswitch for bowl lifting screw:M3 digital control board washer:M6x1 screw:M3x10 fan-cooling...
