JVC AV32X10EUS Service Manual page 9

*

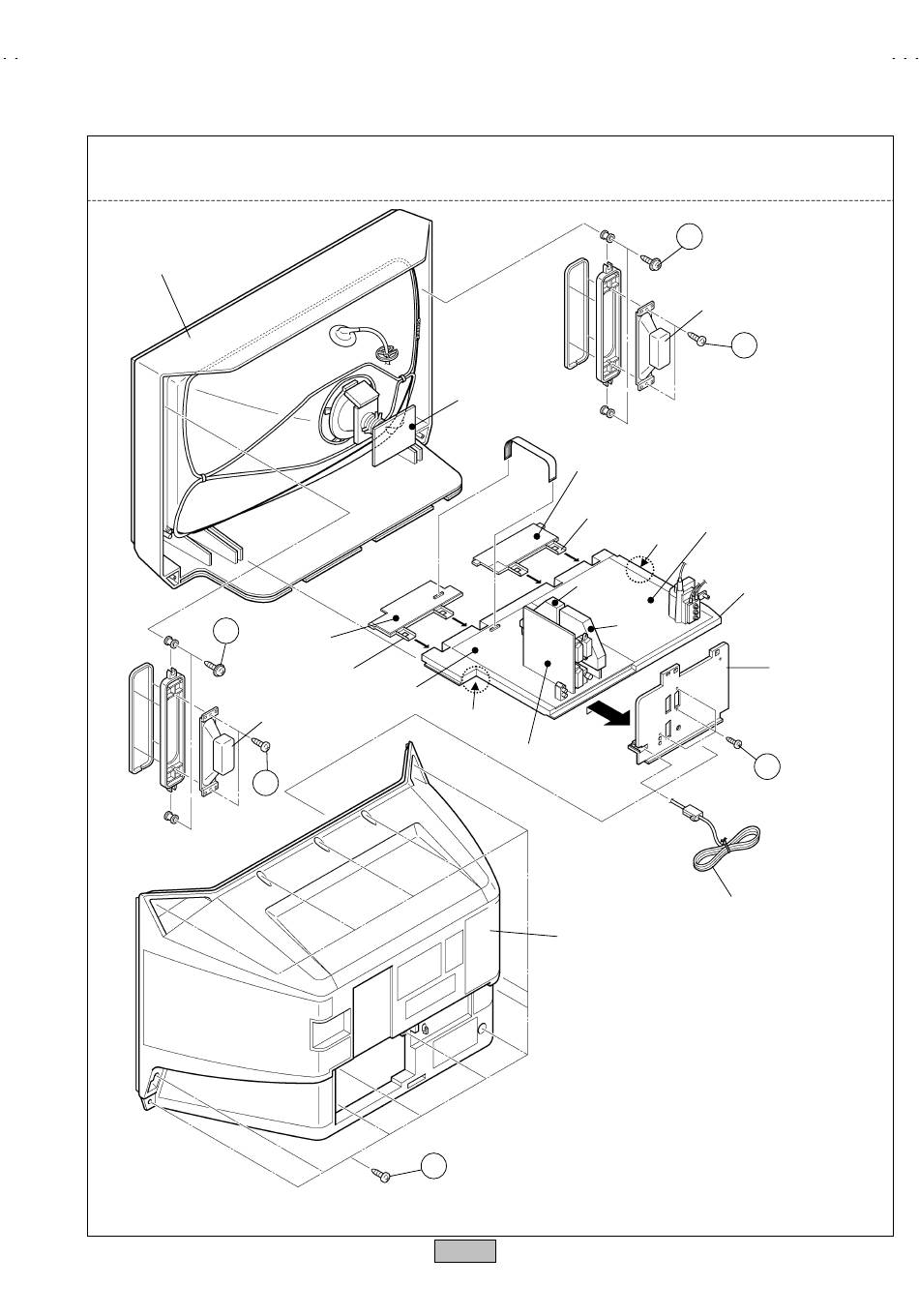

This exploded view describes about the AV32X10EUS (32inch).
Although the 28inch is slightly different from this figure, you can use the exploded view for disassembling the 28inch
in the same step as for this one.
FRONT CABINET
FRONT
D
CONTROL
PWB (R)
SPEAKER
C
CRT
SOCKET
PWB
CONTROL
BASE
MAIN PWB
CLAW
( × 13)
A
Fig. 1
No.51780
FRONT
CONTROL
PWB (L)
CONTROL
BASE
CLAW
MICON
PWB
100Hz
PWB
AV SW PWB
REAR COVER
AV32X10EUS
AV28X10EUS
AV28X10EKS
AV28X10EIS
D
SPEAKER
C
POWER & DEF
PWB
CHASSIS
AV TERMINAL
BOARD
B
( × 3)
POWER CORD
9
