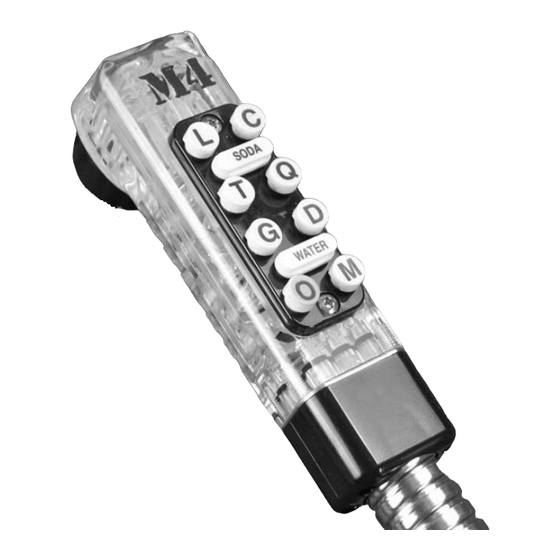

Wunder-Bar Mark 4 Manual

Mark 4
POST-MIX
BEVERAGE
DISPENSER
For 1 to 14 Button
Post-Mix
and
Juice Dispensers
Standard and Flow Regulator Manifold
CONTENTS
Installation..........................................................................................
Brixing—Standard Manifold..............................................................
Flow Regulator Manifold....................................................................
Configuration and Maintenance........................................................
Repair..................................................................................................
Model Numbers, Buttons, and Butterfly Plates..............................
Butterfly Maps....................................................................................
Sanitizing and Cleaning..........................................................
Troubleshooting....................................................................
Exploded Parts Drawings.......................................................
Copyright 1988, 2010 by Automatic Bar Controls, Inc.
SERVICE AND FACTORY ASSISTANCE:
Please record your Installer/Service Agent's name and phone number here for future reference:
SERVICE AGENT NAME:
SERVICE AGENT PHONE: ___________________
Or, call the Wunder-Bar Service Hotline 1-866-WUNDERBAR (1-866-986-3372) anytime or
(707) 448-5151 Monday through Friday, 7:00 AM to 5:00 PM Pacific Time.
MARK 4 MANUAL
___________________
www.wunderbar.com
PAGE NUMBER
2
3
4
5
6-8
9
10-11
12-13
14
15-26
DATE OF INSTALLATION: _______________
SERIAL NUMBER: ______________________
REV041410
