The SR5i stove has been exempted under the clean air act of 1993 as suitable for use in smoke control areas when
burning seasoned wood logs. The stove contains a factory fitted secondary air stop which ensures that the
secondary air is permanently open 3.5mm minimum. Please carefully read the instructions on wood burning
contained in this manual, these MUST be adhered to at all times. Please see page 15 of the manual for further
reference to the clean air act of 1993
Please hand these instructions to the stove user when the installation is complete. Leave the stove ready for
operation and instruct the user in the correct use of the appliance and operation of controls.
Important: – This product must be installed by a suitably qualified installer.
For safety reasons it is essential that your stove is correctly installed and operated. Heat Design
cannot accept responsibility for any fault or consequential problems arising through incorrect
installation or operation.

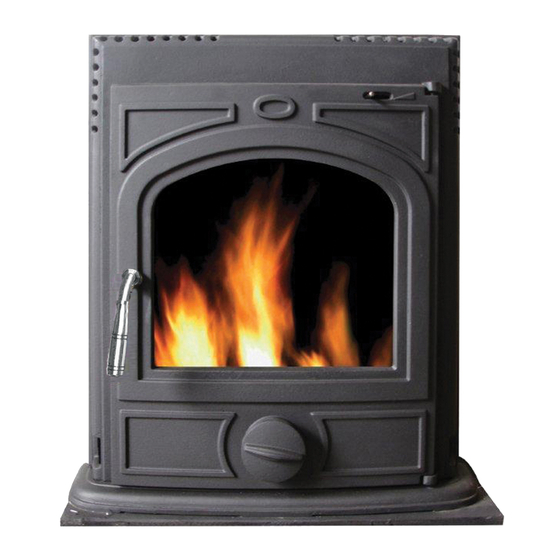

San Remo Range
INSERT STOVE
Please fix label with serial number and stove
type here before putting manual into stove
Installation and Operating
Instructions
Heat Design Ltd.
Western Industrial Estate,
PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY!
SR5i
30-60 Hawthorn Road
Naas Road,
Dublin 12
www.heatdesign.ie
Advertisement
Table of Contents
Related Manuals for Heat Design San Remo Series
Summary of Contents for Heat Design San Remo Series
- Page 1 Dublin 12 www.heatdesign.ie PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY! For safety reasons it is essential that your stove is correctly installed and operated. Heat Design cannot accept responsibility for any fault or consequential problems arising through incorrect installation or operation.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Page No 1. List of Components 2. Component Identification and Installation 3. Installation Instructions Warnings and important safety information 4 Installation Information Chimney Ventilation Flue Draught Connection to Chimney Material Clearances Hearths Commissioning & Handover 5. Technical Data 6. -
Page 3: List Of Components
Fig 2 – SR5i Stove Assembly and controls 2. Component Identification and Installation Your Heat Design Stove comes packed in a cardboard box. Carefully remove any straps and remove all cardboard and any plastic packaging, open the door and remove all the contents. See List of Components section and check contents carefully. -
Page 4: Installation Instructions
6:1 vermiculite/cement mix or any other good non-combustible insulating material. Connect the connecting flue or flue liner/adaptor to the stove spigot and seal from the inside. It is essential that a fireback is present where the Heat Design insert stove is to be fitted. 3 Installation Instructions... -
Page 5: Installation Information
Keep all ventilation clear and free of blockage. Health And Safety Precautions Handling Adequate facilities must be available for unloading and site handling. Heat Design Stoves are very heavily built so always ask for assistance when lifting and siting the stoves. Fire Cement Some types of fire cement are caustic and should not be allowed to come into contact with the skin. -
Page 6: Connection To Chimney
Hearths: Heat Design stoves require a 125mm thick non-combustible constructional hearth beneath them to protect the building, this can include any solid non-combustible floor. A non-combustible superimposed hearth forming an apron of at least 225mm at the front of the stove and 150mm on either side must also be provided. -
Page 7: Technical Data
Advise the user on what to do should smoke or fumes be emitted into the room from the stove – see Safety Notes section. The user should be warned that they MUST use a suitable fireguard in the presence of children, aged and/or infirm persons. -
Page 8: Cleaning
The SR5i stove has a powerful “air wash” system. This secondary air supply to the stove is controlled via a sliding air control located on the top right of the stove. If you want clean glass, always leave this control open some way whilst burning unless the stove is being shut right down for a long period. -
Page 9: Fuels
Fuels The appliance is fitted with a versatile multifuel grate and has been tested using wood and coal. Notes on Wood burning With a full load of wood, the stove will need to be refuelled approximately every 1 to 1.5 hours depending on burn rate. -
Page 10: Refuelling Onto A Low Firebed
by first de-ashing and then using small pieces of wood and plenty of air to get flames issuing from the wood again. Refuelling on to a low fire bed If there is insufficient burning material in the fire bed to light a new fuel charge, excessive smoke emission can occur. -
Page 11: Safety Notes For Your Guidance
7.0 Safety Notes for your guidance FIRES CAN BE DANGEROUS – Always use a fireguard in the presence of children, the elderly or the infirm. DO NOT perform modifications to the appliance as this could seriously compromise safety in operation. DO NOT OVERFIRE –... -
Page 12: Stove Dimensions
8.0 Stove Dimensions Fig. 3 – SR5i Insert Stove All dimensions in mm unless otherwise stated. Dimensions are approximate and are subject to change without prior notice. SR5i 02/05/13... - Page 13 SR5i 02/05/13...
-
Page 14: Frequently Asked Questions
A call out charge will apply if our engineer attends any stove problem that is not related to product failure. 6 Where can I get spare parts? Your local Heat Design Stove retailer will be pleased to supply spare parts and to provide any other information you require. -
Page 15: Sr5I Spare Parts List & Codes
10.0 SR5i Spare Parts List & Codes Component SR5i Component SR5i Door Glass Y1HDI04D01E Ashpan Y1HDID28E Glass Brackets and Screws Y1HDID02E Glove Y1HD29E Door Handle assembly Y1SRF08D03E Ashpan Tool Y1HD31E Coalcatcher Y1HDI04D04D Door Y1SRI04D32E Back Plate/fireboard Y1HDI04D05E Primary Air Control including handle Y1FWF08D33E Side Plate Left/fireboard Y1HDI05D06A... - Page 16 SR5i 02/05/13...
- Page 17 Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke control areas and you can contact them for details of Clean Air Act requirements” Heat Design, 30-60 Hawthorn Road, Western Industrial Estate, Naas Road, Dublin 12. T: 01 408 9192 F: 01 408 9193...
