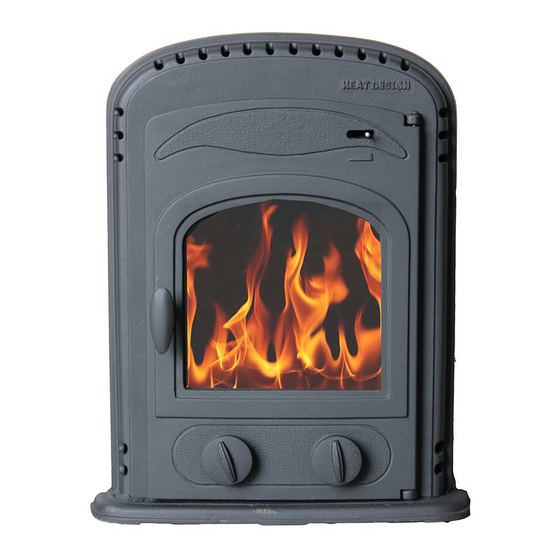

ARCHED
AR5i
INSERT STOVE
Please fix label with serial number and stove
Type here before putting manual into stove
Installation and Operating
Instructions
Please hand these instructions to the stove user when the installation is complete. Leave the stove ready for
operation and instruct the user in the correct use of the appliance and operation of controls.
Important: – This product must be installed by a suitably qualified installer.
Heat Design
30 – 60 Hawthorn Road
Western Industrial Estate
Naas Road
Dublin 12
www.heatdesign.ie
PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY!
For safety reasons it is essential that your stove is correctly installed and operated. Heat Design
cannot accept responsibility for any fault or consequential problems arising through incorrect
installation or operation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR5i and is the answer not in the manual?

Questions and answers

Related Manuals for Heat Design AR5i

Summary of Contents for Heat Design AR5i

  • Page 1 Dublin 12 www.heatdesign.ie PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY! For safety reasons it is essential that your stove is correctly installed and operated. Heat Design cannot accept responsibility for any fault or consequential problems arising through incorrect installation or operation.

  • Page 2: Table Of Contents

    Air controls Cleaning Fuels Notes on Wood Burning Notes on Burning Solid Fuel Re-fuelling Refuelling onto a Low Firebed Fuel Overloading Shutting down Maintenance Seasonal Use 7. Safety Notes for your Guidance 8. Stove Dimensions 9. Frequently Asked Questions AR5I 28/12/13...

  • Page 3: List Of Components

    Touch up paint Spare rope Warranty Card Fig 2 – AR5i Stove Assembly and controls 2. Component Identification and Installation Your Arched Stove comes packed in a cardboard box. Carefully remove any straps and remove all cardboard and any plastic packaging, open the door and remove all the contents. See List of Components section and check contents carefully.

  • Page 4: Installation Instructions

    Ventilation No purpose provided ventilation is normally required for stoves rated under 5KW. However for newer build properties or properties that have been modified so that the design air permeability is less than /h.m a permanent ventilator will need to be fitted. Approved document J of the building Regulations AR5I 28/12/13...

  • Page 5: Installation Information

    Handling Adequate facilities must be available for unloading and site handling. Heat Design Stoves are very heavily built so always ask for assistance when lifting and siting the stoves. Fire Cement Some types of fire cement are caustic and should not be allowed to come into contact with the skin.

  • Page 6: Connection To Chimney

    Hearths: Heat Design stoves require a 125mm thick non-combustible constructional hearth beneath them to protect the building, this can include any solid non-combustible floor. A non-combustible superimposed hearth forming an apron of at least 225mm at the front of the stove and 150mm on either side must also be provided.

  • Page 7: Technical Data

    The primary air is used when lighting the stoves or when the fuel bed goes very low. The primary air inlet will usually be closed when burning wood and open when burning coal type fuel. AR5I 28/12/13...

  • Page 8: Cleaning

    Secondary Air (Air Wash) The AR5i stove has a powerful “air wash” system. This secondary air supply to the stove is controlled via a slider assembly control located on the top right of the stove. If you want clean glass, always leave this control open some way whilst burning unless the stove is being shut right down for a long period.

  • Page 9: Notes On Burning Solid Fuel

    Four good size logs is a sufficient quantity of fuel to achieve the rated output from this appliance. Never exceed this amount of fuel and never stack the fuel too high in the stove so as it touches the baffle or blocks the tertiary air holes as this may cause smoke to be produced. AR5I 28/12/13...

  • Page 10: Shutting Down

    Let the fire out Check for flue or chimney blockage and clean if required Do not attempt to re-light the fire until the cause of the fume emission has been identified and corrected. If necessary seek expert advice. AR5I 28/12/13...

  • Page 11: Stove Dimensions

    If the wall is becoming hot, move the furniture away. Ensure that the Fire Brigade can gain access to your roof space in order to check this area for signs of fire spread 8.0 Stove Dimensions Fig. 3 – AR5i Insert Stove All dimensions in mm unless otherwise stated. Dimensions are approximate and are subject to AR5I 28/12/13 change without prior notice.

  • Page 12: Frequently Asked Questions

    A call out charge will apply if our engineer attends any stove problem that is not related to product failure. 6 Where can I get spare parts? Your local Heat Design Stove retailer will be pleased to supply spare parts and to provide any other information you require.
