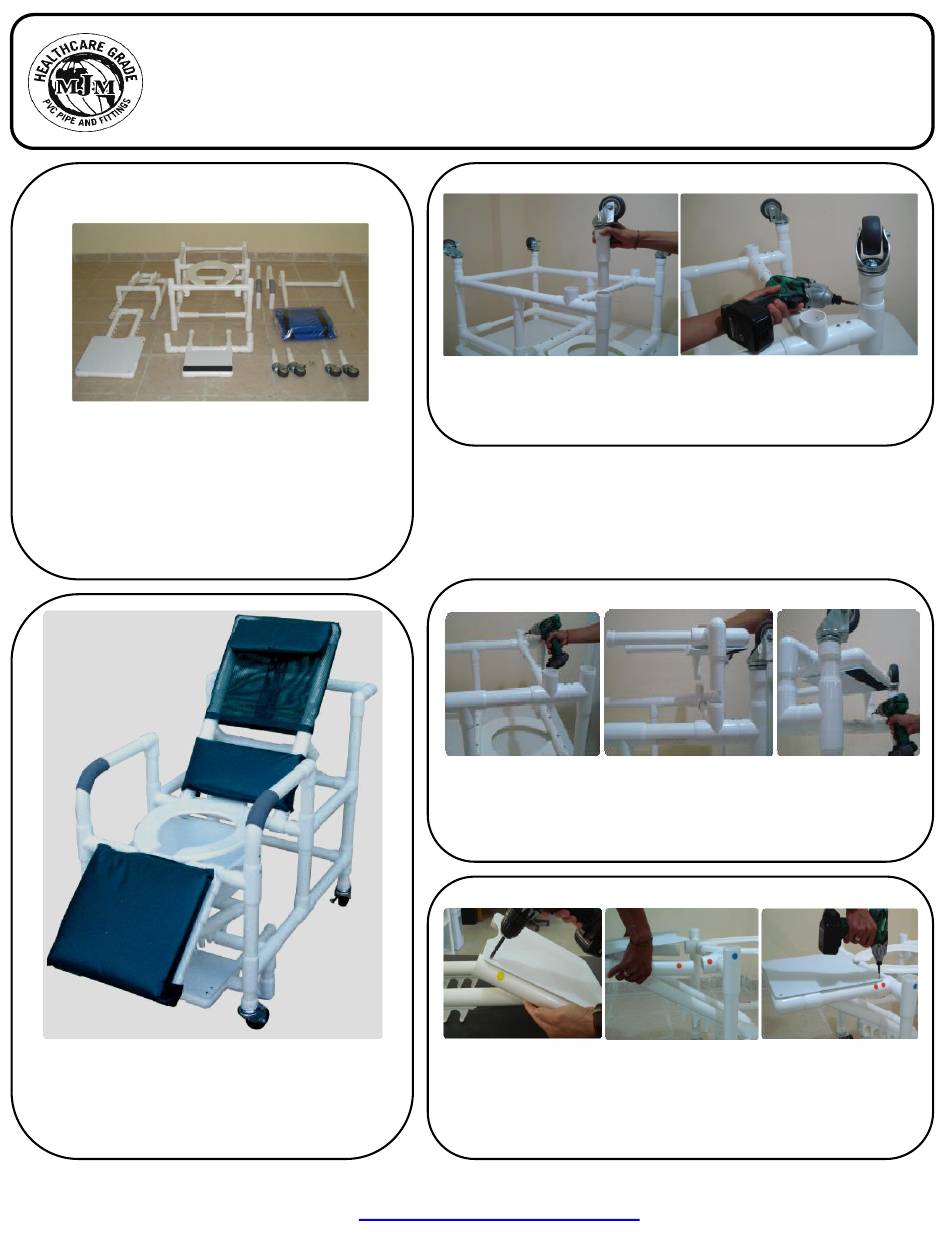

MJM 193 Assembly Instructions

MJM INTERNATIONAL CORPORATION
RECLINING SHOWER CHAIRS
EXAMPLE - 196 COMPONENTS
IDENTIFY ALL COMPONENTS TO START ASSEMBLY
4 CASTERS W/ LEGS STEMS
(2 BRAKE & 2 NON-BRAKE)
1 SLIDING FOOTREST SUPPORT
2 ARMREST
ELEVATED LEGREST/WITH CUSHION.
RECLINING BACKREST/LUMBAR SUPPORT
CUSHION/SLING SUPPORT.
PUSH PULL HANDLE
16 (SIXTEEN) ½'' SCREWS.
4 (FOUR) 1'' SCREWS.

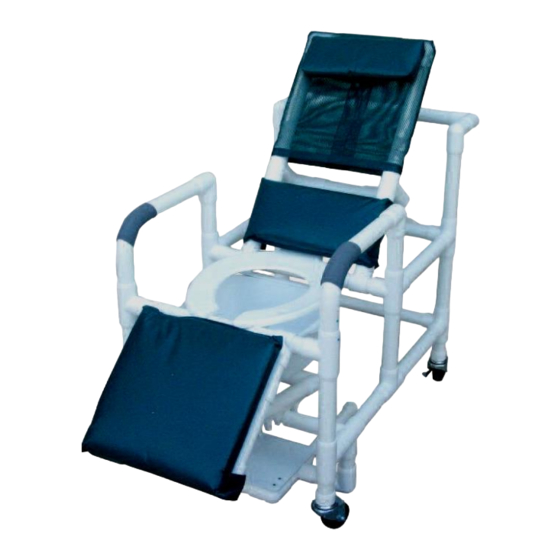

196 RECLINING SHOWER CHAIR
FACILITATE SHOWERING & TOILETING
SHOWN WITH
OPTIONAL COMMODE PAIL
MJM International Corporation
ASSEMBLY INSTRUCTIONS
1-800-270-6199
www.mjminternational.com
193, 194, 195, 196
STEP 2
PLACE 196 RECLINING SHOWER CHAIR ON A FLAT SURFACE UPSIDE
DOWN TO INSERT (4) CASTERS.
SECURE CASTERS USING ½'' RETAINING SCREWS.
(USE PREDRILLED HOLES AS REFERENCE).
NOTE: A PHILLIPS SCREWDRIVER OR A CORDLESS
HAND DRILL IS REQUIRED TO TIGHTEN / SECURE
ALL SCREWS.
NOTE: PLEASE MATCH EACH COLOR-CODED DOT
ACCORDINGLY.
STEP 3
PREMOVE ½'' RETAINING SCREWS, (4) FROM 4-WAY FITTINGS TO
INSTALL SLIDING FOOTREST.
CENTER AND INSERT SLIDING FOOTREST.
SECURE SLIDING FOOTREST USING ½'' RETAINING SCREWS.
(USE PREDRILLED HOLES AS REFERENCE).
STEP 4
REMOVE (2) 1'' RETAINING SCREWS FROM ELEVATED LEGREST
SUPPORT AND SEPARATE FROM PVC PIPE.
CENTER AND INSERT LEGREST SUPPORT INTO SWIVEL FITTINGS.
SECURE ELEVATED LEGREST SUPPORT USING 1'' RETAINING
SCREWS.
(USE PREDRILLED HOLES AS REFERENCE).
FOR
Fax: (956) 781-5552
REV. B Date: 02-02-09 Page 1 of 2
