MJM 450-PED Assembly Instructions

450-PED, CHILD AND ADULT PLATFORM WALKER
WARNING!!!!!!! CASTERS, REMOVABLE VELCRO PADDED TRAY, TOP AND BOTTOM SECTIONS MUST BE CHECKED AND
SECURED PRIOR TO USING 450-PED, CHILD AND ADULT PLATFORM WALKER.
NOT SECURING ALL THE ABOVE PROPERLY CAN CREATE A SERIOUS SAFETY HAZSERIOUS SAFETY HAZARD.

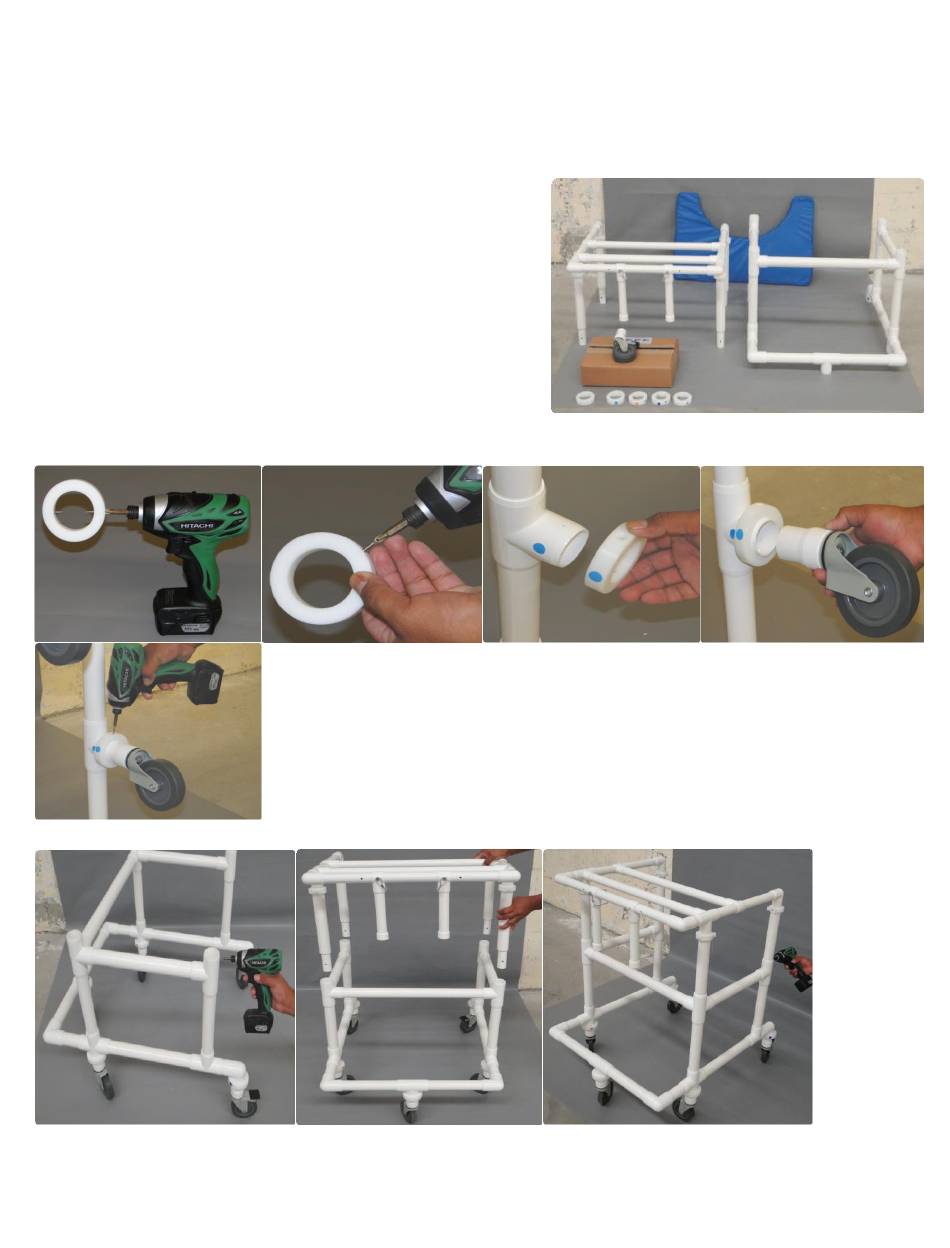

IDENTIFY COMPONENTS TO START ASSEMBLY
PARTS INCLUDED
1 REMOVABLE VELCRO PADDED TRAY.
5 CASTERS WITH LEG STEMS (IN BROWN BOX)
(2 BRAKE & 3 NON-BRAKE).
1 BOTTOM SECTION.
1 TOP SECTION.
5 REINFORCEMENT RINGS.
4 – 6 x 3/8'' RETAINING SCREWS (ON FRAME).
10 – 8 x 1'' RETAINING SCREWS (IN BROWN BOX).
NOTE: A PHILLIPS SCREWDRIVER OR A CORDLESS HAND DRILL IS
REQUIRED TO TIGHTEN/SECURE ALL SCREWS.
STEP 2 – ASSEMBLING CASTERS.
STEP 3 – ASSEMBLING TOP AND BOTTOM SECTION.
REMOVE FOUR 6 x 3/8'' SCREWS FROM MIDDLE SECTION.
INSERT TOP SECTION INTO BOTTOM FRAME.
SECURE TOP SECTION USING THE FOUR 6 x 3/8'' SCREWS.
MJM International Corporation
ASSEMBLY INSTRUCTIONS
REMOVE 8 x 1'' SCREWS FROM REINFOCEMENT RINGS,
NOTE: PLEASE MATCH EACH COLOR –CODED DOTS ACCORDINGLY.
INSERT REINFORCEMENT RINGS INTO CASTER SECTION ON BOTTOM FRAME (ALIGN RING WITH
PREDRILLED HOLES).
INSERT CASTER LEG STEMS INTO BASE SECTION.
SECURE THE RING AND CASTERS WITH THE 8 x 1'' RETAINING SCREWS.
1-800-270-6199
STEP 1 – IMAGE REFERENCE
REV. B Date: 11-22-09
Fax: (956)
781-5552
Page 1 of 2
