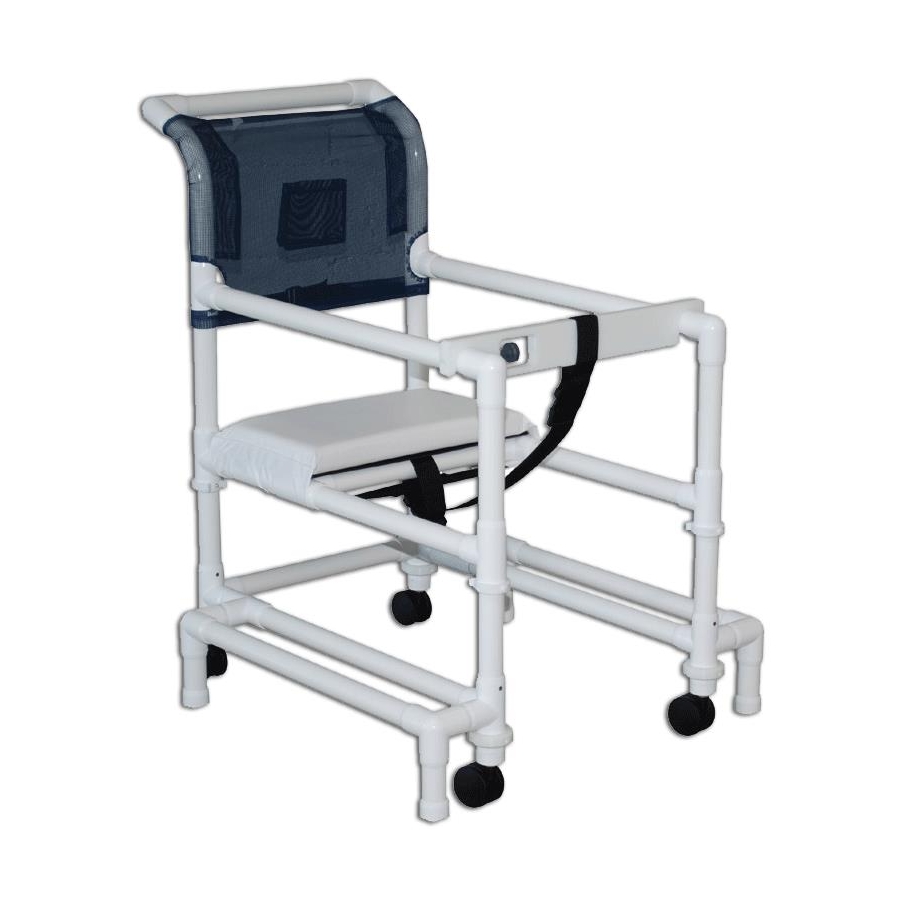

MJM 418-OR-3TW Instructions

MJM INTERNATIONAL CORPORATION
WARNING NOT SECURING ALL PARTS PROPERLY CAN CREATE A SERIOUS SAFETY HAZARD.

IDENTIFY ALL COMPONENTS TO START ASSEMBLY

PARTS INCLUDED FOR WALKER

PARTIALLY ASSEMBLED FRAME.
NOTE: A PHILLIPS SCREWDRIVER OR A CORDLESS HAND DRILL IS REQUIRED TO
4 CASTERS (2 WITH BRAKE & 2 NON BRAKE
TIGHTEN/SECURE ALL SCREWS.
SIDE OUTRIGGERS WITH ANTI--TIPS--2
SIDE RAILS--- 2 MAKE UP THE ARM SECTIONS
SPRING LOADED FLAT GATE---1 IS CONNECTED TO ONE SIDE RAIL
PVC BACK --1
MESH SLING-- 1
SEAT CUSHION--1
SAFETY BELT-- 1
CLAMP LOCKS FOR ADJUSTABLE HEIGHTS
REINFORCEMENT RINGS -- 4
NOTE: A PHILLIPS SCREWDRIVER OR A CORDLESS HAND DRILL IS REQUIRED TO TIGHTEN/SECURE ALL SCREWS.

STEP 2

REMOVE SCREWS FROM REINFORCEMENT
RINGS

STEP 5

INSERT OUTRIGGERS ON THE SIDE OF THE
BOTTOM FRAME BY MATCHING COLOR CODED
DOTS AND SECURE USING SCREWS PROVIDED
USING PILOT HOLES AS REFERENCE
MJM International Corporation
www.mjminternational.com
418-OR-3TW
--
4 PLACED ON BOTTOM FRAME
ATTACHED TO BOTTOM FRAME IN CORNERS

STEP 3

INSERT CASTERS --PLACE BRAKE WHEELS
ON THE REAR OF THE WALKER

STEP 6

REMOVE SCREWS FROM AREA BY SEAT
SECTION
1-800-270-6199

STEP 1

STEP 4

SECURE CASTERS WITH SCREWS PROVIDED
USING PILOT HOLE AS REFERENCE

STEP 7-1

INSERT SIDE RAILS BY MATCHING COLOR CODED
DOTS.
Fax: (956) 781-5552
hmoroles@yahoo.com
REV. B Date: 17-02-11 Page 1 of 2
