Introduction

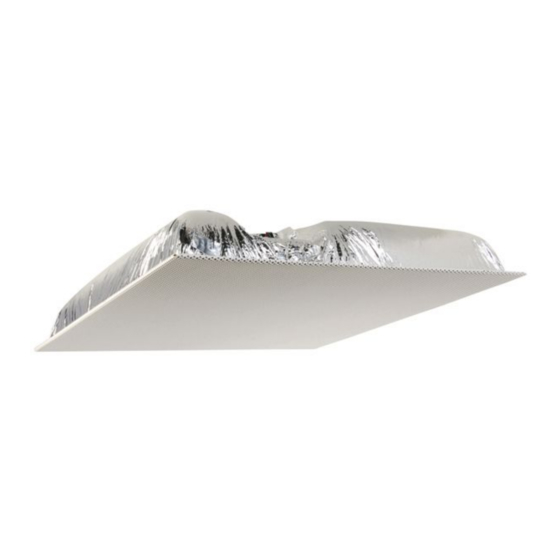

The SPKR-IP-CS is a 2'x2' IP Ceiling Speaker for use as a TalkMaster, SIP
or a combined TalkMaster/SIP client. It includes an integrated 8-Watt
amplifier, an internal microphone to enable 2-way audio and a status LED
visible in the speaker grill.
The SPKR-IP-CS must be configured using the TalkMaster Admin Console.
This Getting Started Guide covers basic hardware installation and software
Configuration of the SPKR-IP-CS.

Specifications

•
8" O.D. Speaker
•
8 Watt Amplifier
•
PoE (802.3af)
•
Integrated Microphone
•
Integrated Back Box
•
Optional external connectors available:
o Line Level Microphone
o Call button w/LED
o Auxiliary analog speaker
o External power (12VDC @ 1.2Amps)
SPKR-IP-CS
Getting Started Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPKR-IP-CS and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Acoustics SPKR-IP-CS

Summary of Contents for Digital Acoustics SPKR-IP-CS

  • Page 1 Getting Started Guide Introduction The SPKR-IP-CS is a 2’x2’ IP Ceiling Speaker for use as a TalkMaster, SIP or a combined TalkMaster/SIP client. It includes an integrated 8-Watt amplifier, an internal microphone to enable 2-way audio and a status LED visible in the speaker grill.
  • Page 2 • The red Ready LED will flash 4x per second • Record the ID# from the label on back of the SPKR-IP-CS for use during software configuration. • Optionally, label the speaker grill with one of the extra ID# labels included in the box •...
  • Page 3 TalkMaster FOCUS Software is a suite of Windows® based applications used to configure and manage Digital Acoustics IP Intercoms and Paging endpoints. TalkMaster FOCUS is available for download on the Digital Acoustics Website. The TalkMaster Server/Admin Console must be installed to configure IP Endpoints.
  • Page 4 • Full Duplex – Select this option to enable Full Duplex operation instead of Half Duplex operation Select the Options 2 tab • Audio Profile – Select the SPKR-IP-CS audio profile if using full duplex or select the Half Duplex audio profile Change any additional IP Endpoint configuration options and then click SAVE.
