- Page 1 Rascal Powerchair Model P321 Owners Manual & Service Record Model P321 Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset T 19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 1: 06/08...
- Page 2 Model P321 Electric Mobility Euro Ltd offers the Rascal P321 Powerchair for indoor and occasional outdoor use. The P321 is a lightweight powerchair providing a comfortable ride for people with disabilities who need a powerchair that can be quickly and easily dismantled.
-
Page 3: Table Of Contents
Dealer information Contents Features and layout Safety information Intended use Safety information Controls - joystick Controls - driving controls & accelerator Freewheel device Brakes Seat height adjustment Joystick controller adjustment rmrest adjustment Footplate adjustment Transferring Driving the vehicle Driving the vehicle - hazards Transporting your powerchair ssembling your powerchair Battery charging... -
Page 4: Dealer Information

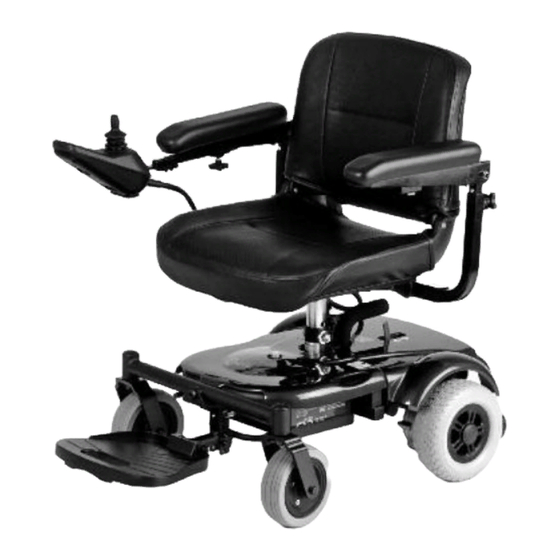

Photo shows the P321 Powerchair. See the specification for detailed weights and performance. Joystick djustable armrests Controller Charging point Front shroud Rear shroud Footrest nti-tip wheels Solid tyres Solid tyres on on drive wheels front castors Rascal P321 Powerchair Owner’s Manual & Service Record... -
Page 5: Safety Information
Safety Information Read this manual thoroughly before driving or operating the vehicle. If you have any doubt about the content of this manual phone your dealer to resolve the problem. Please read this manual, and ensure your powerchair is serviced regularly. Within this manual there are important safety notices. -
Page 6: Safety Information
Do not use armrests as a support when getting in or out of your powerchair. Make sure they are secure before you start off otherwise you might fall out. Warning ! Seat Belt It is advisable to use your seatbelt whenever you use your vehicle. Rascal P321 Powerchair Owner’s Manual & Service Record... - Page 7 Warning ! Battery Charge Before driving off always check the battery indicator. If you are in any doubt, ensure all the batteries are fully charged before starting on a journey. Warning ! Castoring Be aware that, if you set off when the castors are not straight, the initial movement could be sideways.
-
Page 8: Controls - Joystick
Move the joystick to the right and you will turn to the right; move it to the left and you will turn left. Charging Point: The charging point is situated beneath the joystick controller at the front. Rascal P321 Powerchair Owner’s Manual & Service Record... -
Page 9: Controls - Driving Controls & Accelerator
Controls - Driving Controls/ ccelerator Joystick control - To operate, turn on the ignition. Firstly make sure your wrist is supported on the armrests. If it is not supported, a jolt may cause a movement of the joystick and an involuntary change in direction or speed. Find an open level area with no obstructions to practice controlling the vehicle until you are confident that you can drive safely. -
Page 10: Freewheel Device
(see figure right). If the switch should pop out, reset it. If it immediately trips again, switch off your powerchair and report the incident to your dealer. Repeat tripping indicates a fault in the wiring that should be investigated. Rascal P321 Powerchair Owner’s Manual & Service Record... -
Page 11: Seat Height Adjustment
Seat Height djustment • Using two 17mm spanners, loosen the bolt as shown. • djust the height of the seat post as required and tighten bolt. Joystick Controller djustment The joystick controller for and aft position can be adjusted by •... -
Page 12: Footplate Adjustment
Before sitting in your Powerchair, check both the freewheel levers are not in the Freewheel position Check the battery charger is disconnected. Rascal P321 Powerchair Owner’s Manual & Service Record... -
Page 13: Driving The Vehicle - Hazards
Check the backrest is upright Ensure your feet are securely on the footrest. Check you have adjusted the seat as instructed in this manual – get comfortable 10. Make sure the way ahead is clear. 11. Switch on the power. Check the battery level indicator is in the green area. 12. -
Page 14: Transporting Your Powerchair
4. Push the release button and lift the front part from the rear 5. Stow the parts into the boot of the vehicle. 6. Ensure that all parts are secure so that they cannot move while diriving. Rascal P321 Powerchair Owner’s Manual & Service Record... -
Page 15: Ssembling Your Powerchair
ssembling your Powerchair following Transportation Warning! ssembling the Powerchair involves lifting and handling heavy parts. However your P321 Powerchair has been designed to be easily assembled. Your dealer should advise you on the best way to assemble your Powerchair. Warning! Pinching or Crushing. -
Page 16: Battery Charging
Switch off the mains and remove the charging plug from the joystick. Do not leave the charger plugged in with the power off. This will gradually discharge your battery. Rascal P321 Powerchair Owner’s Manual & Service Record... -
Page 17: Battery Care
Battery Care The batteries are the lifeblood of your vehicle. Their characteristics can change depending on charging, temperature, usage and other factors. Listed below are guidelines to prolong battery life. • fter using your vehicle always charge it at the end of the day - even after a short journey. •... -
Page 18: Servicing & Maintenance
This product is designed to be operated by adults. Children should not be allowed to tamper with the controls or play on the vehicle. Do not carry children as passengers. The product is designed for single person use only. Keep all packaging well away from children. They could be harmed. Rascal P321 Powerchair Owner’s Manual & Service Record... -
Page 19: Engineer's Checklist
Engineer’s Checklist for Powerchairs Obtain all comments from the customer on the condition and serviceability of the Powerchair and then complete an Initial diagnostic road test. Record all defects to be corrected. Now check, test and complete the following: • Wheel bearings for wear and lubricate •... -
Page 20: Troubleshooting Guide
Remember correct information will get the problem fixed quicker and save you money. Phone the dealer and explain exactly what the problem is, recounting as much detail as possible including the indicated faults. Rascal P321 Powerchair Owner’s Manual & Service Record... -
Page 21: Diagnostic Table
Diagnostic Table Your Powerchair controller provides diagnostic information by lamp indications on the Battery Level Indicator. Individual lamps will flash to indicate a fault as below: 1 Bar - Low Battery Voltage The battery needs charging or there is a bad connection to the battery. -
Page 22: Frequently Asked Questions
Information regarding other Electric Mobility products contact your dealer or log on to the Electric Mobility Website www.electricmobility.co.uk Each vehicle comes with a copy of the BHT Highway Code. Please make sure you read it. Telephone BHT on 02077 022 141 for a new copy. Rascal P321 Powerchair Owner’s Manual & Service Record... -
Page 23: Guarantee & Warranty
Mobility Euro Limited. ny description, specifications, samples, models, bulletins or similar materials used in connection with the sales of Electric Mobility Euro Limited products are for the sole purpose of identifying the equipment and are not to be construed as expressed warranties. This limited warranty applies only to the original purchaser of the equipment and is not transferable. -
Page 24: Technical Specification - P321
The maximum climbing ability facing upwards degrees of slope 6˚ Ground clearance mm (in) 23 (0.9) Maximum obstacle climbing ability mm (in) 25 (1) Maximum safe descendable kerb height mm (in) 25 (1) Rascal P321 Powerchair Owner’s Manual & Service Record... -
Page 25: Brochure Request
Brochure Request Do you have a friend or colleague that would be interested in an Electric Mobility product? If so cut out this coupon and send it to the address shown on the back of the manual. My Dealer’s Company name is: Please can I have a free no-obligation home demonstration. - Page 26 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, T 19 9Z Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, T 19 9Z...
-
Page 27: Service Log
Service Log Notice for the Service Engineer. Please make sure this part is stamped and dated after each service. Dealer stamp - 1st Service Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service... - Page 28 Rascal Powerchair Model P321 Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset T 19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 1: 05/09...
