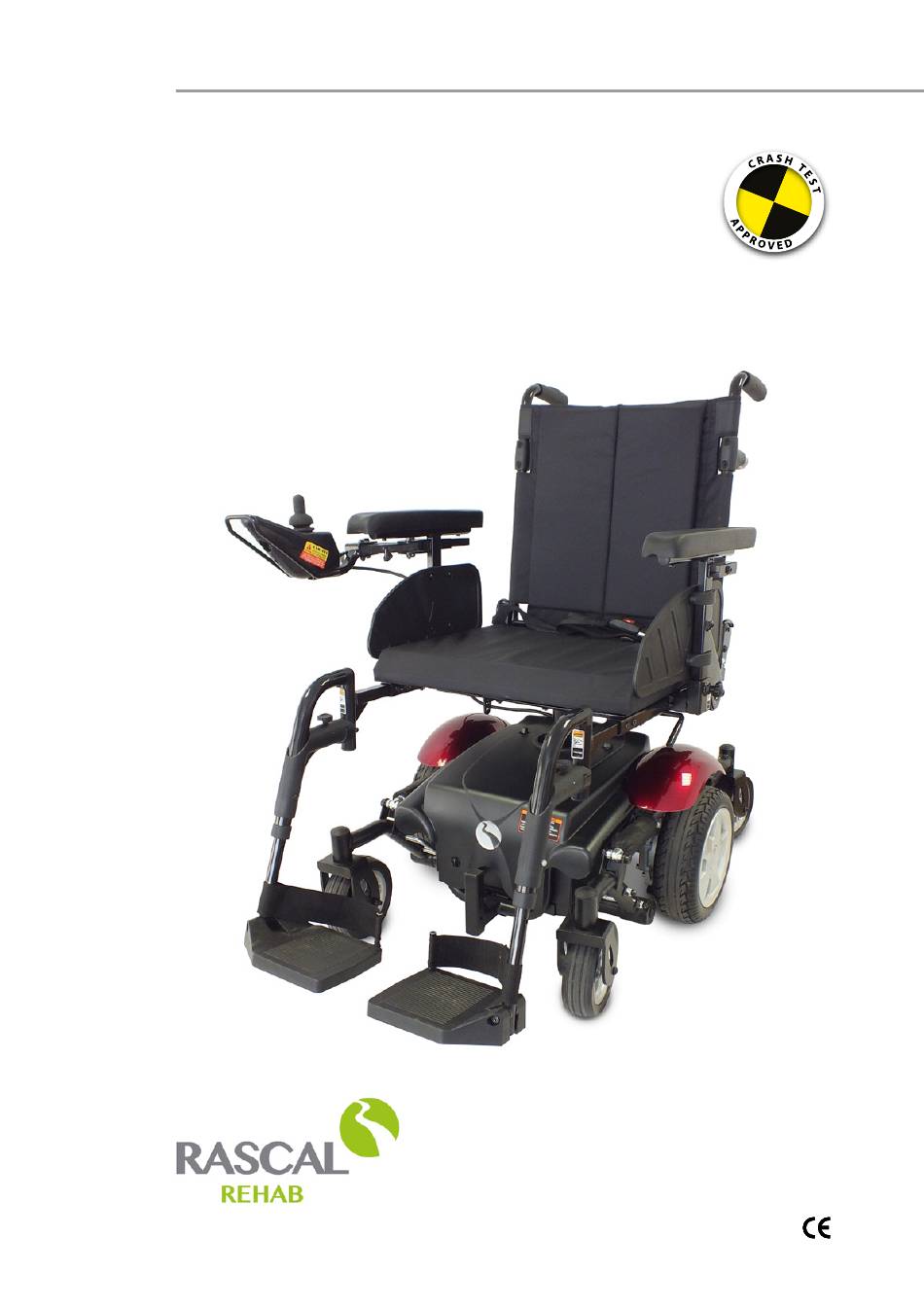

- Page 1 Rascal Rialto Powerchair Owners Manual & Service Record Rascal Rialto Electric Mobility Euro Limited, Canal Way, Ilminster , Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 1 09/2015 WHITE...
- Page 2 Rascal Rialto Electric Mobility Euro Ltd offers the Rascal Rialto Powerchair for convenient indoor and outdoor use. This mid-wheel drive Powerchair is a highly manoeuvrable vehicle that provides a comfortable ride for people with disabilities who need a substantial Powerchair with a good range which can also be used as a seat in a vehicle provided that the correct restraints are used and the user guide is closely followed.
-
Page 3: Table Of Contents
Contents Dealer Information Using your Powerchair as a Seat in a Vehicle Features and Layout General Safety Information Safety Information Securing the Powerchair to the Vehicle Intended Use Powerchair Positioning in the Vehicle Safety Information - General Warnings Front Attachment Controls - Joystick Rear Attachment Controls - Driving Controls &... -
Page 4: Dealer Information
Electric Mobility Euro Limited Canal Way, Ilminster, Somerset TA19 9DL Company Registration in England No. 2419231 Features and Layout Photo shows the Rascal Rialto Powerchair. See the specification for detailed weights and performance. Tension Integrated lap-belt adjustable back Swing-away Joystick... -
Page 5: Safety Information
Rascal Rialto Powerchair a capable, manoeuvrable indoor and outdoor machine. The Rascal Rialto Powerchair is intended for use in the home, for use in shopping precincts and trips on paved or other smooth hard surfaces. Kerbs should be avoided, but the Rascal Rialto Powerchair can mount kerbs and small obstacles up to that specified in the Technical Specification. - Page 6 Powerchair may be used as a forward facing seat in a motor-vehicle provided that the proper pro- cedures and restraint systems are used. This Powerchair has been tested in accordance with ISO 7176-19. Refer to the “Use as Seat in a Vehicle” section of this manual. Rascal Rialto Powerchair Owner’s Manual & Service Record...
- Page 7 Warning ! Lap-Belt It is advisable to use the integrated lap-belt whenever you use your powerchair (not supplied on all vehicles). Warning ! Battery Charge Before driving off always check the battery indicator. If you are in any doubt, ensure all the batteries are fully charged before starting on a journey. Warning ! Castoring Be aware that, if you set off when the castors are not straight, the initial movement could be sideways.
-
Page 8: Controls - Joystick
Tip: If the lights (1) are flashing red, the batteries must be recharged urgently. Charging Point: The charging point is situated beneath the joystick controller at the front. Rascal Rialto Powerchair Owner’s Manual & Service Record... - Page 9 Controls - Driving Controls/Accelerator Joystick control - To operate, turn on the On/Off button. Firstly make sure your wrist is supported on the armrests. If it is not supported, a jolt may cause a movement of the joystick and an involuntary change in direction or speed. Find an open level area with no obstructions to practice controlling the vehicle until you are confident that you can drive safely.
-
Page 10: Freewheel Device
Powerchair is on a slope or could be pushed onto a slope. Never leave one motor in Drive and the other in Freewheel. You could damage your Powerchair or cause injury. Rascal Rialto Powerchair Owner’s Manual & Service Record... -
Page 11: Armrest Adjustments
Armrest Adjustments Armrest Width Adjustment Armrest Width Adjustment is effected by adjusting the seat width. - This is a dealer only function for safety reasons and will be configured for you. Armrest Height Adjustment The armrest height can be adjusted by loosening the hex bolt shown in Fig.4. Adjust to the desired height and then fully re-tighten the bolt. -
Page 12: Seat Back Angle And Tension Adjustment
Seat Height Adjustment You are advised to ask your dealer to set the seat height in the most comfortable driving position. Rascal Rialto Powerchair Owner’s Manual & Service Record... -
Page 13: Seat Removal
Seat Removal The seat can be removed for storage and to allow for easier transportation of the Powerchair, however we strongly advise users not to remove the seat as it is extremely heavy. To remove the seat follow the following procedure: 1. -
Page 14: Optional Centre Footplate
Check you have adjusted the seat as instructed in this manual – get comfortable and secure your seat belt (not fitted to all models). 10. Make sure the way ahead is clear. 11. Switch on the power. Check the battery level indicator is in the green area. Rascal Rialto Powerchair Owner’s Manual & Service Record... -
Page 15: Driving The Vehicle - Hazards
12. Speed Control. Set the speed control to a low setting. 13. Gently push the joystick in the direction you wish to go. The vehicle will now move off. The further you push the joystick the faster the vehicle will go. 14. -
Page 16: Transporting Your Powerchair
Requirements The Rascal Rialto may only be used as a seat in a motor-vehicle in the forward facing mode in the vehicle, be secured using a 4 point tie-down system and a 3 point occupant restraint system used to restrain the wheelchair user. -
Page 17: General Safety Information
Testing & Components KFP0023/FRK/ EMERLT The Rascal Rialto was successfully dynamically tested using a Koller EXCEL 120™ combined restraint system - The system was tested to and in compliance with ISO 10542 with a wheelchair mass/weight of up to 120kg. -
Page 18: Securing The Powerchair To The Vehicle
120kg – NEVER exceed the 120kg maximum wheelchair/Powerchair weight/mass rating. Securing the Powerchair to the Vehicle: The Rascal Rialto Powerchair is equipped with four vehicle attachment points marked with the hook symbol. These attachment points are designed to safely anchor the Powerchair to the vehicle whilst it is being transported with or without an occupant seated in the Powerchair. -
Page 19: Front Attachment
Front Attachment 1. Ensure the seat is in the most upright position - make sure it matches Fig.19 and that all parts of the Powerchair are secure and have not worked loose over time. Tighten any loose parts. The seat base tilt angle must not be set at more than 3 degrees. -
Page 20: Rear Attachment
Fig.29 – Please note the horizontal rail above the occupant’s head. This is to simulate the third point fixing rail in a vehicle. The vertical strap is the 3rd point anchorage strap. Rascal Rialto Powerchair Owner’s Manual & Service Record... - Page 21 Powerchair as a seat in a motor vehicle, DO NOT use it in this mode until your dealer/restraint system supplier has confirmed correct installation Fig.17 (page 16) shows the Rascal Rialto being used as a seat in a public service vehicle.
-
Page 22: Battery Charging
When the charger is connected and switched on the “Power” lamp will show red. The second charging light shows: • Red when charging • Green shows full charge • Off indicates that no battery is connected or that there is a battery fault Note: the charger contains a fan and will emit a slight humming noise when in use. Rascal Rialto Powerchair Owner’s Manual & Service Record... -
Page 23: Battery Care
Connection Instructions Place you machine in an area that is dry and well ventilated. Make sure a power point is nearby. Check the vehicle is switched off. Check the mains switch is off. Never connect or disconnect the charger with the mains on. Connect the charger plug in to socket as above. -
Page 24: User Maintenance
4. On completion of the service, always test the vehicle before the engineer leaves and make sure you are satisfied with the work carried out. Points to look out for: • Are there any strange noises from the wheels or does the frame creak? • Is the battery charging up correctly – is the “full” charge green light on after charging? • When turning, does the Powerchair respond equally to left and right movements of the joystick ? • Does the Powerchair stop smoothly when the joystick is centred ? • Does the Powerchair tend to pull to one side ? • Does the speed control work ? • Has anything come loose? • Are there noises or rattles that were not there before? • Are there any signs of damage, corrosion or cracking? Rascal Rialto Powerchair Owner’s Manual & Service Record... -
Page 25: Additional Safety Information
Additional Safety Information Carrying Weight on the Vehicle Bags or Luggage: Never carry bags (unless they are an approved accessory) behind the seat as this could result in tipping over backwards. Only carry small bags on your lap and ensure it does not prevent you from con- trolling your vehicle. -
Page 26: Engineer's Checklist
Important Note for the Engineer Enquire if the customer is satisfied with the product. Please report all points good or bad directly to: Electric Mobility 01460 258100 If you have any comments please include them. Rascal Rialto Powerchair Owner’s Manual & Service Record... -
Page 27: Troubleshooting Guide
Troubleshooting Guide This table is a guide to fault finding. The fault may be a simple fix. If you have any doubts phone your dealer. Solution Symptom • Batteries flat - check level. • Powerchair does not move. • Is the charger connected? when power is switched on. • Is either Freewheel engaged? • F reewheel has been selected while power is on Ensure neither freewheel is selected;... -
Page 28: Diagnostic Table
Unknown Fault Check all connections and wiring, consult a service agent. Incompatible Remote The remote is incompatible with the power module. Ensure the brand of the power module matches that of the remote. Rascal Rialto Powerchair Owner’s Manual & Service Record... -
Page 29: Frequently Asked Questions
Frequently Asked Questions I want to transport my vehicle in a car. There are various techniques. It depends on what type of vehicle you own and your physical capability. The usual way is to use specialist ramps which can be provided by your dealer. Make sure your dealer has demon- strated the easiest way of loading your Powerchair into your car. -
Page 30: Guarantees
Guarantees 12 Month Guarantee Electric Mobility Euro Limited (the ‘Company’) guarantees its products against defects in materials and workmanship under normal use for a period of one year from the date of purchase by the original retail purchaser (the ‘Guarantee Period’). If a defect arises and a valid claim is received within the Guarantee Period, at its option, the Company may either (1) repair the defect at no charge, using new or replacement parts;... -
Page 31: Technical Information Regarding Emi
Technical Information Regarding EMI Important Technical Information regarding Electromagnetic Interference (EMI) The intensity of interference from electromagnetic energy is measured in volts per meter (v/m), which refers to the strength of the electrical source (voltage) as it relates to the distance away from the object being considered (in meters). -
Page 32: Technical Specification
2 (35.6) to 40 (104) This Powerchair meets the relevant requirements of ISO 7176:14 2008. Due to a policy of continual improvement, Electric Mobility Euro Ltd reserves the right to change specifications without prior notice. Rascal Rialto Powerchair Owner’s Manual & Service Record... -
Page 33: Brochure Request / Guarantee Card
Brochure Request Do you have a friend or colleague that would be interested in an Electric Mobility product? If so cut out this coupon and send it to the address shown on the back of the manual. My Dealer’s Company name is: Please can I have a free no-obligation home demonstration. Please send me a brochure of the range of products. My friend’s name is: My friend’s address is: County:... - Page 34 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA...
-
Page 35: Service Log
Service Log Notice for the Service Engineer. Please make sure this part is stamped and dated after each service. Dealer stamp - 1st Service Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service... - Page 36 Rascal Rialto Powerchair Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 1 09/2015...
Need help?
Do you have a question about the Rascal Rialto and is the answer not in the manual?
Questions and answers

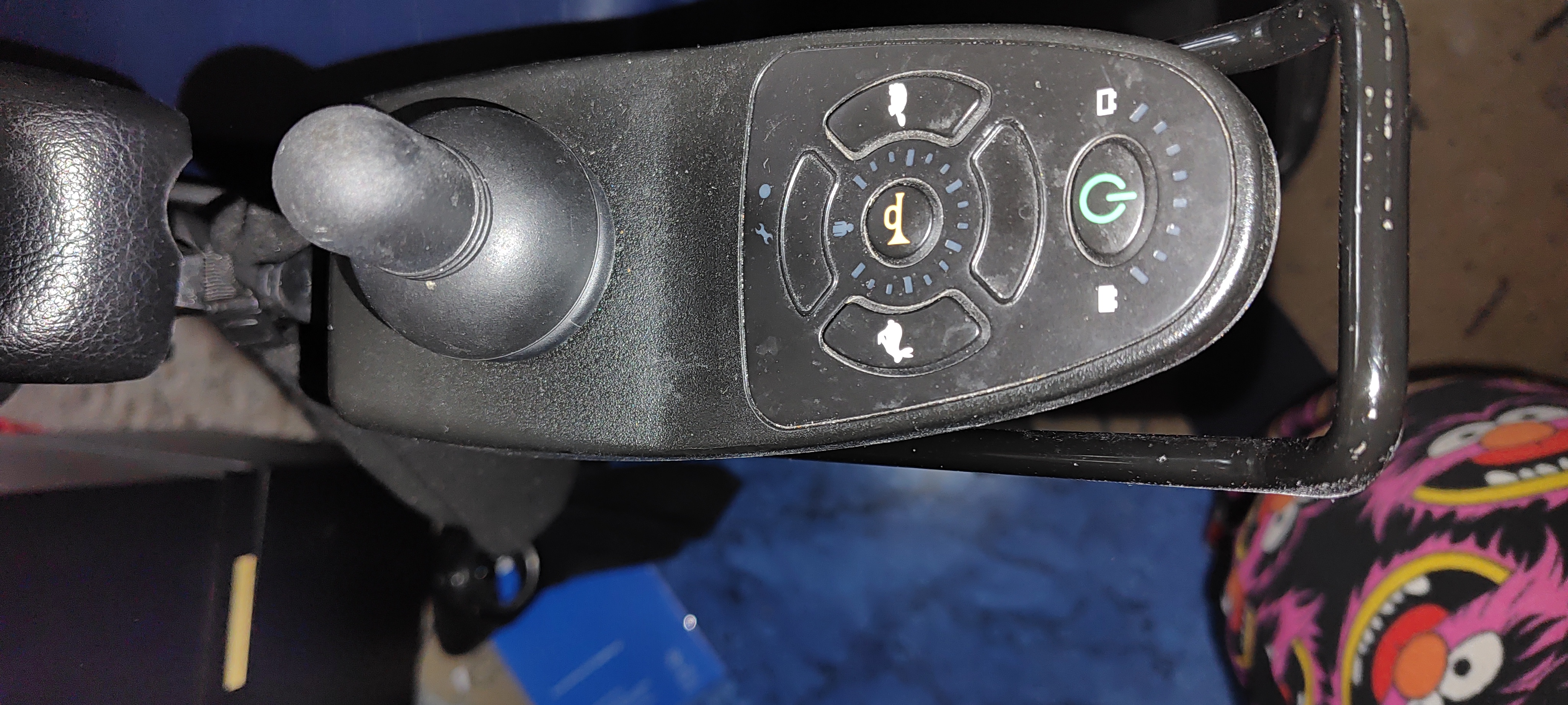

Lock unlock controller
