Assembly Installation, Care Maintenance
and User Instructions Manual

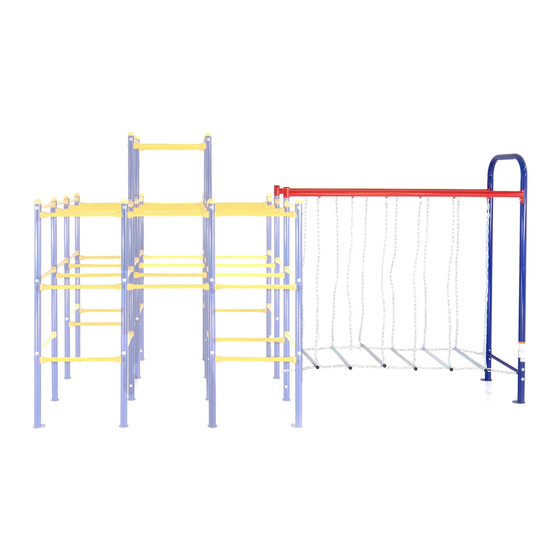

Jungle GYM Float Bridge
Model SJG202
WARNING
!
SKYWALKER
SPORTS
Read all precautions and instructi-
ons in this manual before using this
equipment. Save this manual for
future reference.
Maximum occupancy 1 users.
Skywalker Holdings LLC
Maximum weight capacity 81 lbs.
P.O. Box 574, Brigham City, UT 84302
AGES
4 to 8
Model SJG200 Traditional Jungle Gym
Advertisement
Table of Contents
Related Manuals for Skywalker Jungle GYM Float Bridge
Summary of Contents for Skywalker Jungle GYM Float Bridge
- Page 1 Assembly Installation, Care Maintenance and User Instructions Manual Jungle GYM Float Bridge Model SJG202 WARNING SKYWALKER SPORTS Read all precautions and instructi- ons in this manual before using this equipment. Save this manual for future reference. Maximum occupancy 1 users.
-
Page 2: Table Of Contents
Model # Warning Label and ID label is located at the bottom base corner of the Jungle Gym Age Grading: 4-8 years, maximum weight of 81 lbs. Maximum Occupancy 7 children SJG200 3 children SJG201 2 children SJG202 1 children SJG203 1 children The total maximum weight not exceed of 567 lbs. -
Page 3: Before You Begin
BEFORE YOU BEGIN Thank you for selecting a Skywalker Sports Jungle Gym. The Jungle Gym will provide many years of backyard fun. Your Jungle Gym comes equipped with warnings and instructions for the assembly, care, maintenance, and use. This information must be read by all Jungle Gym supervisors and communicated to or read by all users before any person is allowed to use the Jungle Gym. -
Page 4: Playground Surfacing Materials Information
PLAYGROUND SURFACING MATERIALS INFORMATION The following information is from Section 4 of the United States Consumer Product Safety Comission’s (USCPSC) Outdoor Home Playground Safety Handbook for playground surfacing material. X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1Select Protective Surfacing —... -
Page 5: User Instructions
USER INSTRUCTIONS Observing the following statement and warnings reduces the likelihood of serious or fatal injury. The Jungle Gym Base Station is designed for up to 1 persons and not to exceed 81 lb. total weight limit. On-site adult supervision for children of all ages at all times is required. Instruct children not to walk close to, in front of, behind, or between moving items. -
Page 6: Jungle Gym Safety Information
JUNGLE GYM SAFETY INFORMATION A Jungle Gym is a recreational product. The information on this manual identify important safety precautions. The precautions are not all-inclusive, because a Jungle Gym can be used in ways that this manual cannot cover completely. USING THE JUNGLE GYM SAFELY Adult Supervision of Children Children using the Jungle Gym must be supervised by adults at all times. -
Page 7: Assembly
ASSEMBLY PART IDENTIFICATION CHART Before beginning assembly, refer to the drawings below to identify all the parts used in assembly. The number in parentheses by each drawing is the key number of the part, from the PART LIST on page Top Frame (1)-2 Upright (2) -2 Connection... -
Page 8: Pre-Assembled Part Chart
PRE-ASSEMBLED PART CHART Before beginning assembly, refer to the drawings below to identify all the pre-assembled parts. Top Frame assembly ( 1,14) - 2 Foot Frame assembly ( 5, 6,7,8)-6... - Page 9 ASSEMBLY Make Things Easier for Yourself! This manual is designed to ensure that the jungle GYM can be assemble successfully by anyone. Most people find that by setting aside plenty of time, assembly will go smoothly. Before beginning assembly, carefully read the following information and insruction: * One people can assembly.
- Page 10 2. Attach the “U” Tube (3), two Top Frames (1) and two Uprights (2) with four M8X65 mm Button Bolts (11), four M8 Arc Washers (10) and two M8 Lock Nuts (13). Do not tighten the bolts. 3. Attach two Long Chains (6) and the Short Chain (7) to the Foot Frame (5) with hooks.
- Page 11 4. Attach two short Chains (7) to two Uprights (2) with hooks. Then attach two Long Chains (6) to two Top Frames (1) with hooks. Attach the other ten short Chains (7) to the other ten Foot Frame (5) with hooks. Then attach the other ten Long Chains (6) to two Top Frames (1) in the hook...
- Page 12 6. Remove the two Plastic Caps from the Jungle GYM. Attach two Top Frames (1) to the Jungle GYM with four M8 Arc Washers (10) and four M8 Washers (15) and eight M8X20mm Button Bolts (12) . 7. Connect the Float Briage to the Jungle GYM with the two Chains (9) in the shown manner 8.
- Page 13 Anchor Anchor Congratulation! You have finished the Jungle GYM Float Briage assembly now and can enjoy it.
-
Page 14: Parts List
PART LIST Key No. Descriprition Quantity Top Frame Upright “U” Tube Connection Frame Foot Frame Long Chain Short Chain D28 Inner Cap Chain M8 Arc Washer M8x65mm Button Bolt M8x20mm Button Bolt M8 Lock Nut D50 Inner Cap M8 Washer Wrench 5mm Hex Key User’s Manual... -
Page 15: Exploded Drawing
EXPLODED DRAWING... -
Page 16: Maintenance Information
MAINTENANCE INFORMATION This product was manufactured using quality materials and crafted to provide you and your family with many years of enjoyment and exercise. Proper maintenance care will help to prolong the life and reduce the possibility of injury. The following guidelines should be followed. 1. -
Page 17: Limited Warranty
Holdings, LLC option, the product at one of this authorized service centers. All products for which a warranty claim is made must be received by Skywalker Holdings, LLC at one of its authorized locations. Preauthorization may be obtained by calling Skywalker Holding, LLC Customer Care Hot Line at 1-866-603-Jump(5867).
