Assembly Installation, Care Maintenance
and User Instructions Manual

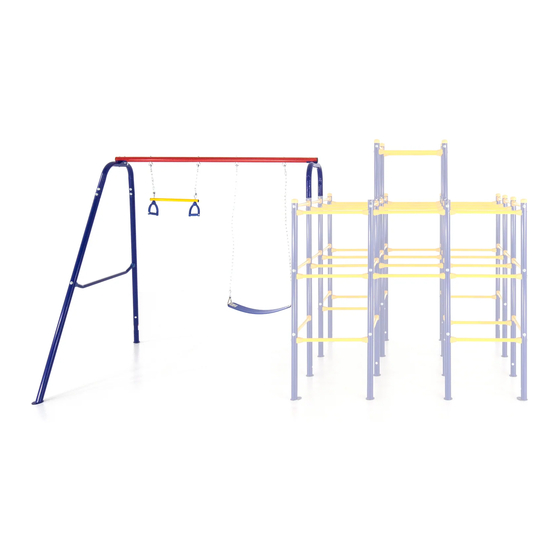

Jungle GYM Swing Set
Model SJG201
WARNING
!
SKYWALKER
SPORTS
Read all precautions and instructi-
ons in this manual before using this
equipment. Save this manual for
future reference.
Maximum occupancy 2 users.
Skywalker Holdings LLC
Maximum weight capacity 162 lbs.
P.O. Box 574, Brigham City, UT 84302
Ages
4 to 8
Model SJG200 Traditional Jungle Gym
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skywalker SJG201
Summary of Contents for Skywalker SJG201
- Page 1 Assembly Installation, Care Maintenance and User Instructions Manual Jungle GYM Swing Set Model SJG201 WARNING SKYWALKER SPORTS Read all precautions and instructi- ons in this manual before using this equipment. Save this manual for future reference. Maximum occupancy 2 users.
-
Page 2: Table Of Contents
On-site adult supervision at all times Age Grading: 4-8 years, maximum weight of 81 lbs. Maximum Occupancy 7 children SJG200 3 children SJG201 2 children SJG202 1 children SJG203 1 children The total maximum weight not exceed of 567 lbs. (Warning label location) -
Page 3: Before You Begin
BEFORE YOU BEGIN Thank you for selecting a Skywalker Sports Jungle Gym. The Jungle Gym will provide many years of backyard fun. Your Jungle Gym comes equipped with warnings and instructions for the assembly, care, maintenance, and use. This information must be read by all Jungle Gym supervisors and communicated to or read by all users before any person is allowed to use the Jungle Gym. -
Page 4: Playground Surfacing Materials Information
PLAYGROUND SURFACING MATERIALS INFORMATION The following information is from Section 4 of the United States Consumer Product Safety Comission’s (USCPSC) Outdoor Home Playground Safety Handbook for playground surfacing material. X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1Select Protective Surfacing —... -
Page 5: User Instructions
USER INSTRUCTIONS Observing the following statement and warnings reduces the likelihood of serious or fatal injury. The Jungle Gym Base Station is designed for up to 2 persons and not to exceed 162 lb. total weight limit. On-site adult supervision for children of all ages at all times is required. Instruct children not to walk close to, in front of, behind, or between moving items. -
Page 6: Jungle Gym Safety Information
JUNGLE GYM SAFETY INFORMATION A Jungle Gym is a recreational product. The information on this manual identify important safety precautions. The precautions are not all-inclusive, because a Jungle Gym can be used in ways that this manual cannot cover completely. USING THE JUNGLE GYM SAFELY Adult Supervision of Children Children using the Jungle Gym must be supervised by adults at all times. -
Page 7: Assembly
ASSEMBLY PART IDENTIFICATION CHART Before beginning assembly, refer to the drawings below to identify all the parts used in assembly. The number in parentheses by each drawing is the key number of the part, from the PART LIST on page 13 and 14. -
Page 8: Pre-Assembled Part Chart
PRE-ASSEMBLED PART CHART Before beginning assembly, refer to the drawings below to identify all the pre-assembled parts. Top Tube assembly ( 1,19) - 1 Flying Rings assembly ( 8,9,10) - 1 Swing Set assembly ( 7,9,10) - 1... - Page 9 ASSEMBLY Make Things Easier for Yourself! This manual is designed to ensure that the Jungle GYM Swing Set can be assembled successfully by anyone. Most people find that by setting aside plenty of time, assembly will go smoothly. Before beginning assembly, carefully read the following information and insruction: * One people can assembly.
- Page 10 2. First find the “U” Frame 1 (2) with marked 2. Attach the “U” Frame 1 (2) to the Upright 1 (4) and the Upright 2 (5) with four M8X60 Button Bolts (13), eight M8 Arc Washers (9) and four M8 LockNuts (10). Tighten all the Bolts.
- Page 11 5. Attached the Swing Set (7) to the Top Tube (1) with two M8 Arc Washers (9) and two M8 LockNuts (10). 6. Attached the Flying Rings (8) to the Top Tube (1) with two M8 Arc Washers (9) and two M8 Lock Nuts (10).
- Page 12 7. Remove the two Plastic Caps from the Jungle GYM. Attach the “U” Frame 2 (3) to the Jungle GYM with eight M8X20mm Button Bolts (11) and four M8 Arc Washers (9) and four M8 Washers(21). 8. Tighten all the Nuts. 9.Use the hammer to make the anchor into the ground in the direction as shown below.
-
Page 13: Parts List
PART LIST Key No. Qty. Descriprition Key No. Qty. Descriprition Top Tube Plastic Protector “U” Frame 1 M6 Washer “U” Frame 2 M6x40mm Button Bolt Upright 1 M6 Locknut Upright 2 D50 Inner Cap Cross Bar M8X65mm Button Bolt Swing Set M8 Washer Flying Rings 6mm Hex Key... - Page 14 4mm Hex Key (*) 5mm Hex Key (*) 6mm Hex Key (*) Wrench (*)
-
Page 15: Exploded Drawing
EXPLODED DRAWING... -
Page 16: Maintenance Information
MAINTENANCE INFORMATION This product was manufactured using quality materials and crafted to provide you and your family with many years of enjoyment and exercise. Proper maintenance care will help to prolong the life and reduce the possibility of injury. The following guidelines should be followed. 1. -
Page 17: Limited Warranty
Holdings, LLC option, the product at one of this authorized service centers. All products for which a warranty claim is made must be received by Skywalker Holdings, LLC at one of its authorized locations. Preauthorization may be obtained by calling Skywalker Holding, LLC Customer Care Hot Line at 1-866-603-Jump(5867).
