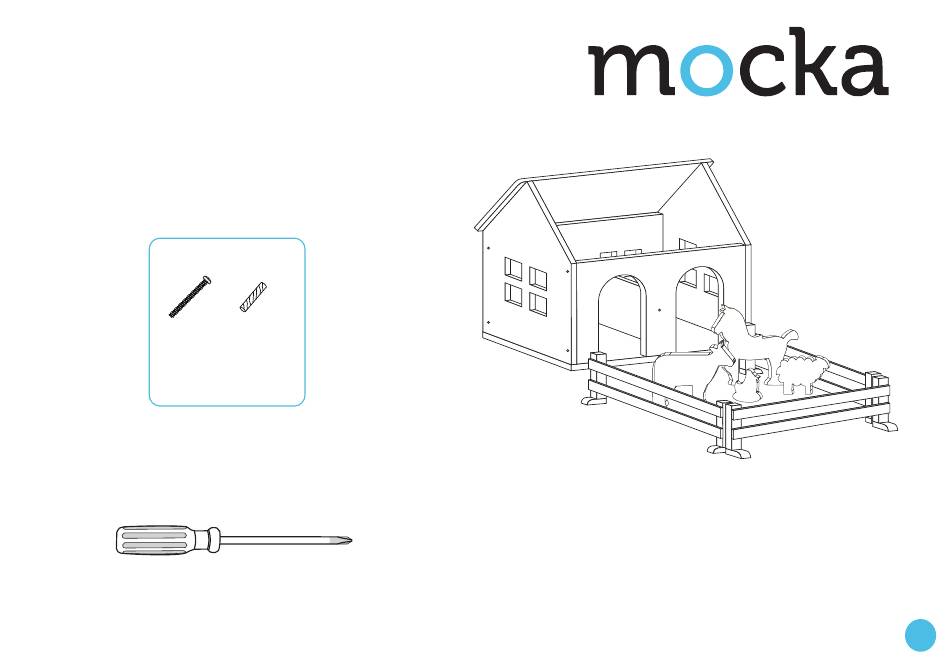

Kids Barnhouse

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

screw

x20

Hardware Supplied

Phillips & Flathead screwdrivers required.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

dowel

x14

WARNING:

Recommended age 18 months+

Assembly should be by an adult only.

The parts of the Kids Barnhouse in their unassembled state contain

potentially hazardous small parts and sharp points.

Need help?

Do you have a question about the Kids Barnhouse and is the answer not in the manual?

Page 1 Assembly should be by an adult only. For quicker assembly, we recommend the The parts of the Kids Barnhouse in their unassembled state contain use of a power drill on a low-speed setting. potentially hazardous small parts and sharp points.
Page 2 Insert 14 x dowels (B) into panels [6], [5], [2], [3] and [7] as shown. Attach panels [6] and [5] to panel [7] and secure with 2 x screws (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
Page 3 Attach panel [2] to panel [5] and secure with 4 x screws (A). Tighten Attach panel [3] to panel [5] and secure with 4 x screws (A). Tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
Page 4 Attach panel [4] to panel [2] and secure with 6 x screws (A). Tighten Attach panel [1] to assembled frame and secure with 4 x screws (A). with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
Page 5 Assembly Instructions 8 x3 Once assembled lift furniture into place, do not drag. Place panel [8] into position as shown, turn feet for balance as shown. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
