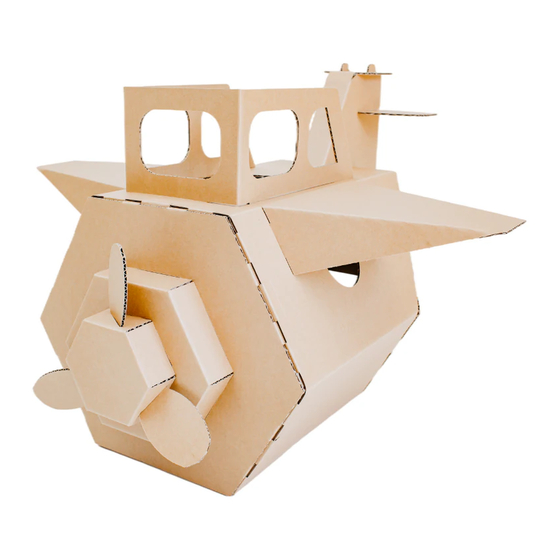

Cardboard Play & Colour - Plane
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A x1
B x1
C x1
D x1
F x2
G x1
E x2
H x1
I x1
Jx1
K x1
L x2
M x1
N x2
O x2
Hardware Supplied
WARNING: KEEP AWAY FROM FIRE/FLAME
Before you begin assembly, pop out all excess cardboard from
the tabs/holes and bend the grooves on each panel.
ASSEMBLY OF THIS ITEM SHOULD BE PERFORMED BY AN ADULT ONLY
1
mocka.co.nz | mocka.com.au
Advertisement
Related Manuals for Mocka Cardboard Play & Colour Plane
Summary of Contents for Mocka Cardboard Play & Colour Plane
- Page 1 Hardware Supplied WARNING: KEEP AWAY FROM FIRE/FLAME Before you begin assembly, pop out all excess cardboard from the tabs/holes and bend the grooves on each panel. ASSEMBLY OF THIS ITEM SHOULD BE PERFORMED BY AN ADULT ONLY mocka.co.nz | mocka.com.au...
- Page 2 Cardboard Play & Colour - Plane Assembly Instructions Attach propellor (D) to part (A) using 2x parts (E). Attach part (A) to part Attach parts (B), (C) and 2x (F) together as shown. (B) by slipping the tabs into the holes. mocka.co.nz | mocka.com.au...
- Page 3 Attach parts (G), (H), (I) and (J) to parts (F) as shown. Attach (K) to part (G). Attach (M) to part (H). Attach wings (N) to parts (F) using parts (O) as shown. Attach (L) to part (F). mocka.co.nz | mocka.com.au...
- Page 4 Cardboard Play & Colour - Plane Assembly Instructions You’re done, enjoy! mocka.co.nz | mocka.com.au...
