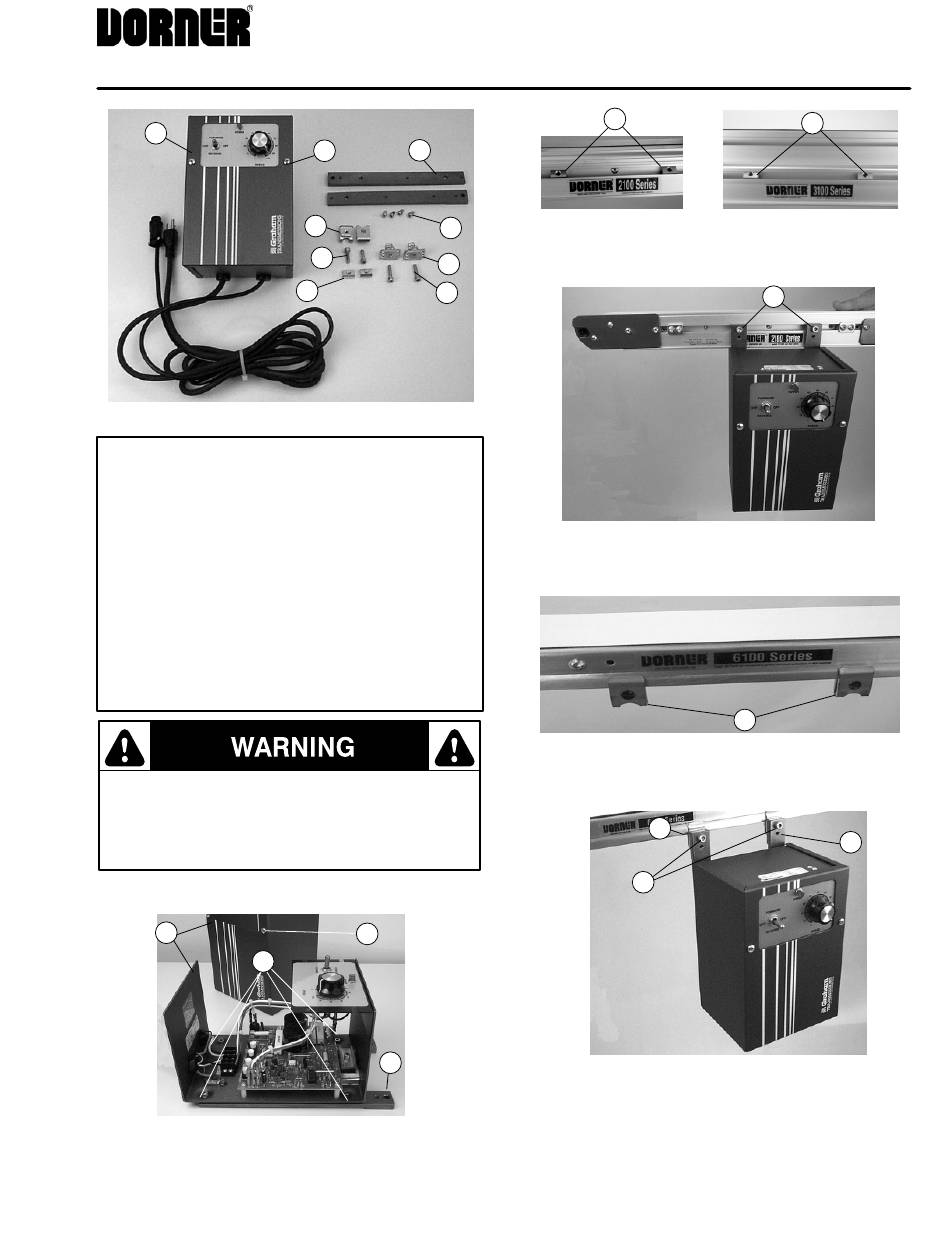

Dorner 62MD1132 Assembly Instructions

Assembly Instructions
A

Components As Shipped

Illustration References

A 62MD1134R or 62MD1132 DC Controllers
B (2) 6100 Series Accessory Mounting Clips
(450186M)
C Socket Head Screws, M5 x 8 mm (4)
D Socket Head Screws, M6 x 16 mm (2)
E (2) T-Bars (639971M)
F Socket Head Screws, M6 x 20 mm (2)
G (2) Spring Nut, M6 (990605M)
H (2) Controller Mounting Bar (300459)
I (2) Controller Cover Mounting Screws
J 4 mm hex key wrench (not supplied)
K Screwdriver (not supplied) being used to align
T-bar while inserting screw
Ç
To prevent injury, make sure all electrical power
sources have been disconnected and locked-out
before you perform any assembly or adjustments.
NEVER operate equipment without guards or other
protective devices properly secured in place.

Conveyor Mounting

A
C
Step 1: Remove cover by loosening mounting
screws (I). Use mounting screws (C), to attach
mounting bars (H) as shown.
DMC-PD1298

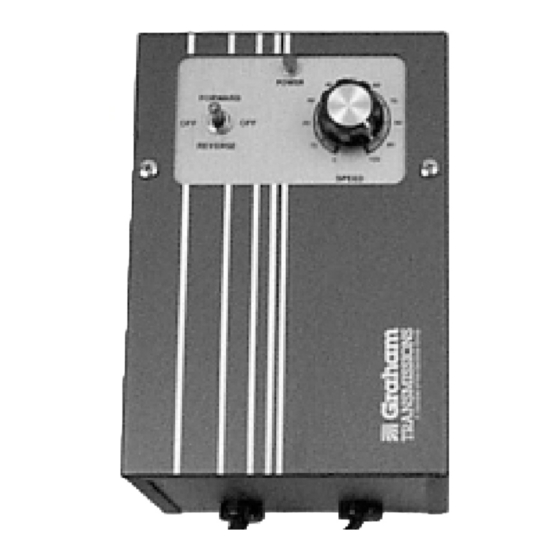

62MD1132 or 62MD1134R DC Controller
Mounting on Dorner Conveyors and Stands
I H
B
C
D
G
E
F
Ç
I
H
Dorner Mfg. Corp.
E
Step 2a: Mount T-bar in 2100 Series (left) and 3100
Series (right) conveyor T-slots as shown.
Step 3a: Secure box to 2100 Series conveyor by
installing M6 Screws (D). (3100 Mounting Similar)
Step 2b: Accessory clips positioned on 6100
Series conveyor.
B
F
Step 3b: Secure box to 6100 Series conveyor by
installing M6 Screws (F) through holes in
mounting bars (H) and into accessory clips (B).
<continued on next page>
E
D
B
H
851-309 Rev. B
