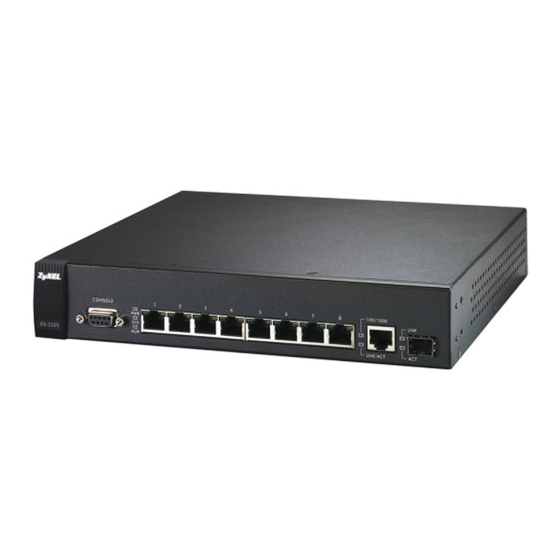

- Page 1 VLAN - GVRP Ethernet Switch ZyNOS 3.7 Support Notes Version 3.70 August 2006...
- Page 2 VLAN10/20/30 dynamically. Please Note that all the clients connected to the switches in this scenario should be located in the same subnet (in this example, the subnet is 192.168.1.0/24) How to configure this scenario: All contents copyright (c) 2006 ZyXEL Communications Corporation.
- Page 3 23, fixed, Tx tagging”. Add VLAN 20 to this switch, VLAN 20: port 4, fixed, untag; port 23, fixed, Tx tagging. Click VLAN port setting to bring up the following screen, setup PVID 10 for All contents copyright (c) 2006 ZyXEL Communications Corporation.
- Page 4 Please follow the same steps and add VLAN 10: port 3, fixed, untag; port 23, fixed, Tx tagging; port 24, fixed, Tx tagging”. Add VLAN 20 to this switch, VLAN 20: port 4, fixed, untag; port 23, fixed, Tx tagging; port 24, fixed, Tx tagging. All contents copyright (c) 2006 ZyXEL Communications Corporation.
- Page 5 3, PVID 20 for port 4, and enable GVRP on the top of the screen and port 1, port 2, port 23, port 24. 3. For Switch C on Basement: Please set static VLAN 10: port 23, fixed, untag. All contents copyright (c) 2006 ZyXEL Communications Corporation.
- Page 6 VLAN Support Note Please set static VLAN 20: port 23, fixed, untag. Add VLAN 30: port 1, fixed, untag; port23, fixed, untag; port 24, fixed, Tx tagging. All contents copyright (c) 2006 ZyXEL Communications Corporation.
- Page 7 VLAN Support Note Setup PVID 30 for port 1 and enable GVRP on port 3 and port 24. The setting of this scenario is done. All contents copyright (c) 2006 ZyXEL Communications Corporation.
