- Page 1 HG6143D Product Manual Version: A FiberHome Telecommunication Technologies Co., Ltd.
- Page 2 Please contact your local sales representative, service representative or distributor for any help needed at the contact information shown below. Fiberhome Telecommunication Technologies Co., Ltd. Address: No. 67, Guanggu Chuangye Jie, Wuhan, Hubei, China Zip code: 430073...
- Page 3 Legal Notice are trademarks of FiberHome Telecommunication Technologies Co., Ltd. (Hereinafter referred to as FiberHome) All brand names and product names used in this document are used for identification purposes only and are trademarks or registered trademarks of their respective holders.
- Page 4 Safety Precautions For your correct and safe operations on the equipment, please carefully read and strictly observe the following safety instructions: ◆ High optical power can cause bodily harm, especially to eyes. Never look directly into the end of the optical transmitter fiber jumper or the end of its active connector. ◆...
-
Page 5: Table Of Contents
GPON Interface ..............4 2.3.1 LAN Interface..............4 2.3.2 POTS Interface..............5 2.3.3 Wi-Fi Interface ..............5 2.3.4 USB Interface ..............5 2.3.5 Introduction to the HG6143D.............6 Appearance................6 2.4.1 Product Characteristics.............11 2.4.2 Functions and Features ............12 2.4.3 Technical Specifications............17 2.4.4 Web Configuration Guide................18 Local Login to the Web Configuration GUI ........19 Status.....................25... - Page 6 HTTPS ................71 3.4.6 Application..................72 VPN .................72 3.5.1 DDNS................73 3.5.2 Port Forwarding ..............74 3.5.3 NAT..................75 3.5.4 DMZ .................77 3.5.6 Network Diagnosis............77 3.5.7 Management ..................79 User Management ............79 3.6.1 Device Management............81 3.6.2...
- Page 9 Documentation Guide Document Orientation HG6143D Product Manual introduces the positioning, features, functions and technical specifications of the HG6143D as well as Web configurations and handling of common problems, so that readers can have an overall idea about the HG6143D. Intended Readers ◆...
-
Page 10: Product Introduction
Standards and Protocols International standards and communications protocols Product Introduction ProductPositioning ProductSpecification InterfaceSpecification s IntroductiontotheHG61 43 D Version: A... -
Page 11: Product Positioning
2 Product Introduction Product Positioning The HG6143D is an FTTH-type GPON optical network terminal. It provides users with communication and entertainment services in the form of data, voice, video and so on, to meet the integrated access demand of families and small-scaled enterprises. -
Page 12: Product Specification
HG6143D √ (2.4 GHz, 5 GHz) 4 (GE) The figure below shows the network positioning of the HG6143D. Product Specification The tables below describe the interfaces and services supported by the HG6143D, which can be referred to for ONT configuration. -
Page 13: Interface Specifications
Table 2-2 lists the service types supported by the HG6143D. Table 2-2 Service Types Supported by the HG6143D ONT Type Internet Service Multicast Service Voice Service Wi-Fi Service HG6143D √ √ √ √ "√" indicates "supported"; "×" indicates "not supported". -
Page 14: Pots Interface
Item Specification Maximum transmission 100 m distance Supports full-duplex / half-duplex and auto negotiation to rates Working mode 10/100/1000 Mbit/s. Specifications of the CAT-5 unshielded twisted pair cable used 2.3.3 POTS Interface Item Specification Interface type RJ-11 Transmission rate 64 Kbit/s Cable type Twisted-pair cable Line code... -
Page 15: Introduction To The Hg6143D

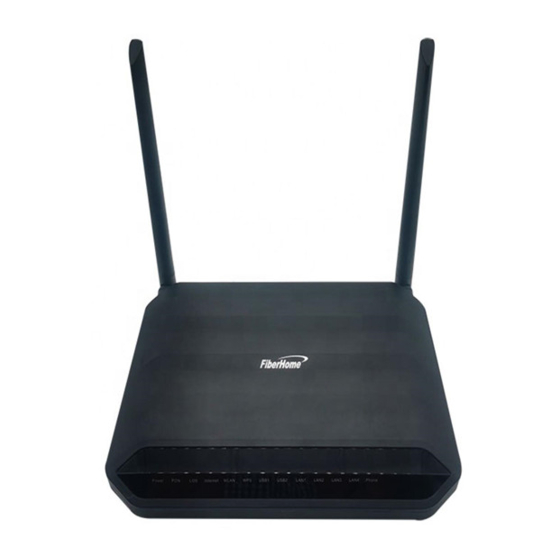

Introduction to the HG6143D 2.4.1 Appearance This section describes the appearance of the HG6143D, including the overall look, interfaces, buttons, and indicator LEDs. Note: The pictures here are only for reference. Appearance The overall look of the HG6143D is shown in Figure 2-1. - Page 16 Interfaces and buttons of the HG6143D are located on the rear, side and bottom panels of the equipment. Figure 2-2, Figure 2-3 and Figure 2-4 show the rear panel, side panel and bottom panel respectively. Figure 2-2 Rear Panel of the HG6143D...
- Page 17 Figure 2-4 Bottom Panel of the HG6143D Table 2-3 describes the interfaces and buttons on the HG6143D. Table 2-3 Interfaces and Buttons on the HG6143D Interface and Description Function Button Phone Telephone interface Connects to the subscriber's telephone. Connects to the computer, IP router or IP set...
-
Page 18: Status
Indicator LEDs of the HG6143D are located on the front panel of the equipment. Table 2-4 describes the indicator LEDs. Table 2-4 Indicator LEDs on the HG6143D Indicator Meaning Color Status Status Description The device is powered on. Power status... - Page 19 WPS is enabled, and the Wi-Fi terminal has been connected to the ONT. WPS is in use for relevant WPS status Green Blinking negotiation. indicator LED WPS is not enabled, or the Wi-Fi terminal is not connected to the ONT. The USB is connected.
