Summary of Contents for GridConnect Orion DC56HA

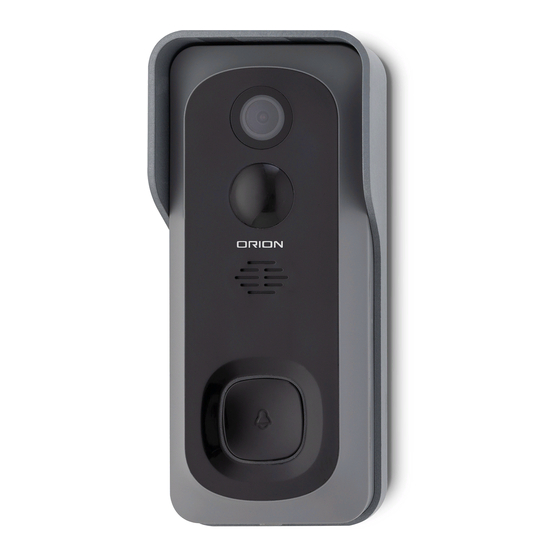

- Page 1 SM ART WIRELESS VIDEO DOORBELL SEE & RECORD EVERYTHING THAT HAPPENS USING YOUR SMARTPHONE QUICK START GUIDE IMPORTANT! PLEASE READ THESE INSTRUCTIONS CAREFULLY DC56HA...
- Page 2 1 INTRODUCTION 3 IDENTIFICATION This SMART wireless door chime is designed for use in homes, apartments, Light Sensor/ Camera Lens offices, garages and sheds. It has been developed to be easily set up and operated, Infrared LEDs 1080p HD, with giving you and your family the security and peace of mind that you deserve.
-
Page 3: Download The App
4 DOWNLOAD THE APP NEW ACCOUNT LOG IN SETUP Download and install GRID CONNECT from Play store (Android) or App store (iOS). Scan & download the GRID Connect App for free... -
Page 4: Install The App
5 INSTALL THE APP GRID Open the CONNECT App. If you are a new user, tap create new account and follow the prompts to complete account setup. create new account Note: You must agree with the Privacy Policy to be able to use the App. If you already have an existing account, just tap login to account and enter your login details to continue. -
Page 5: Adding A Location
6 ADDING A LOCATION On the Add location setup page, you can edit Home name, set up Home location Select rooms room. This will help you manage your GRID devices and assist you in customising and scheduling the time and order of one or multiple devices, depending on your home living needs. -
Page 6: Preparing Your Device
7 PREPARING YOUR DEVICE Remove the battery compartment cover. Pull off the isolation strip to allow the battery to make electrical contact. Reinstall battery cover. The status light is solid red and becomes blinking once the contact is made. Confirm status light is red blinking and it is ready to pair. -
Page 7: Pairing Your Device
8.0 PAIRING YOUR DEVICE Ensure the isolation strip from battery compartment has been removed to make electrical contact see page 10. The doorbell should take approximately 8 seconds to startup. Confirm the status light is red and rapidly blinking (approximately 6 times every 5 seconds). The doorbell is now ready for pairing. - Page 8 8.1 PAIRING YOUR DEVICE confirm Enter the Wi-Fi password and tap confirm to proceed. change network If needed, you can tap to switch to another suitable Wi-Fi network for your doorbell.
- Page 9 8.2 PAIRING YOUR DEVICE Press continue to scan QR code using your doorbell. Hold 15cm away from your mobile screen. scan Press heard the beep after you hear a sound from your doorbell. code The status light should be red, and blinking (refer to trouble on screen shooting guide on page 26 if you...
- Page 10 8.3 PAIRING YOUR DEVICE Once the pairing process is complete a device added successfully page showing will appear. You may choose to edit the device name or assign the device to a dedicated room done before tapping to finish the pairing process.
- Page 11 9 OPERATING YOUR DOORBELL Once your doorbell is paired to your Wi-Fi network, you can view your doorbell at anytime from your smartphone as long as there is internet access. Live Screen Playback Screen Access to PIR mode Back to Device Access to settings (motion detector Screen...
- Page 12 10 PAIRING INDOOR CHIME UNIT Power on your indoor chime USB-A port unit with either a standard USB-A port or provided DC power adaptor, ideally somewhere near your door. The blue status light should DC Power Adaptor be on to indicate the chime is ready for pairing.
- Page 13 11 CHARGING & INSTALLATION INSTALLATION Before choosing your location, check the Wi-Fi strength/coverage in that area. Mounting IMPORTANT: Do not mount the doorbell unit on metal or near metal door Note: Product should be fully charged Screw frames, security door, or proximity any metal door furniture. It might affect before installation.
-
Page 14: Troubleshooting
12 TROUBLE SHOOTING What can I do if 1. Check your mobile device is connected to a 2.4GHz Do our current No - GRID products currently do not support 5GHz I fail to pair my Wi-Fi network, refer to below question for how to GRID products wireless connection GRID Connect... - Page 15 • WARRANTY Arlec guarantees this product in accordance with the Australian Consumer Law and all other applicable Australian and New Zealand laws that are unable to be excluded. Arlec also warrants to the original first purchaser of this product (“you”) from a retailer with which this document is given that this product will be free of defects in materials and workmanship for a period of 12 months from the date of purchase;...
