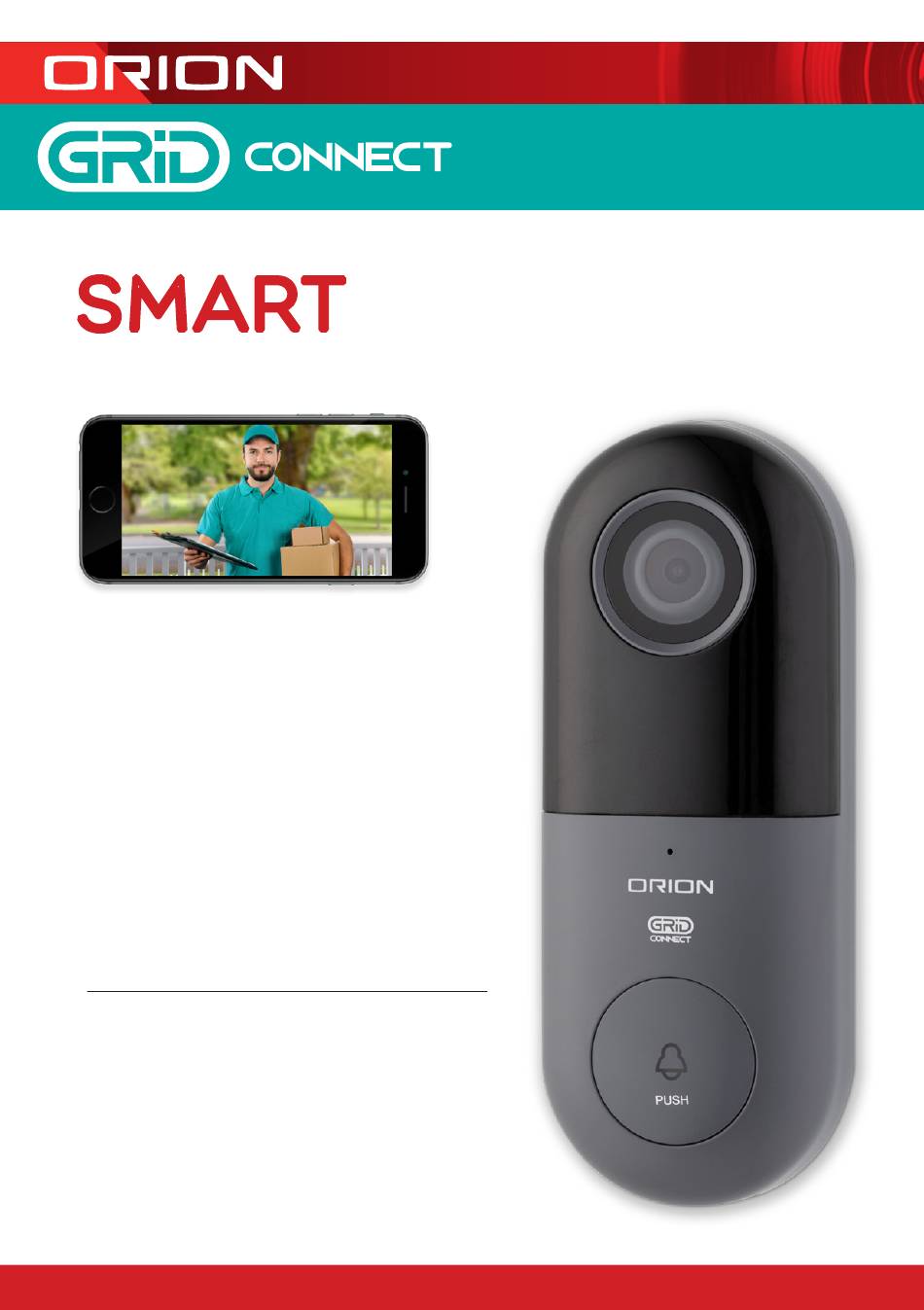

- Page 1 SM ART VIDEO DOORBELL SEE & RECORD EVERYTHING THAT HAPPENS USING YOUR SMARTPHONE QUICK START GUIDE IMPORTANT! PLEASE READ THESE INSTRUCTIONS CAREFULLY DC58HA...
- Page 2 1 INTRODUCTION 3 IDENTIFICATION This SMART hardwired door chime is designed for use in homes, apartments, Light Sensor/ Camera Lens offices, garages and sheds. It has been developed to be easily set up and operated, Infrared LEDs 1080p HD, with giving you and your family the security and peace of mind that you deserve.
-
Page 3: Download The App
4 DOWNLOAD THE APP NEW ACCOUNT LOG IN SETUP Download and install GRID CONNECT from Play store (Android) or App store (iOS). Scan & download the GRID Connect App for free... -
Page 4: Install The App
5 INSTALL THE APP GRID Open the CONNECT App. If you are a new user, tap create new account and follow the prompts to complete account setup. create new account Note: You must agree with the Privacy Policy to be able to use the App. If you already have an existing account, just tap login to account and enter your login details to continue. -
Page 5: Adding A Location
6 ADDING A LOCATION On the Add location setup page, you can edit Home name, set up Home location Select rooms room. This will help you manage your GRID devices and assist you in customising and scheduling the time and order of one or multiple devices, depending on your home living needs. -
Page 6: Power On Your Device
7 POWER ON YOUR DEVICE The Smart Video Doorbell enables quick start-up by powering with USB cable. Plug 5V DC power adaptor into a power source and connect it to the doorbell DC Power Adaptor using provided USB cable. This allows you to setup up your doorbell quickly (step 8) without hardwiring. -
Page 7: Pairing Your Device
8.0 PAIRING YOUR DEVICE Power up your smart doorbell by using the supplied USB cable (step 7). It should take approximately 25 seconds to startup and will indicate as such with a solid red light. You will hear a welcome sound. Confirm the status light is red and rapidly blinking (approximately 8 times every 5 seconds). - Page 8 8.1 PAIRING YOUR DEVICE confirm Enter the Wi-Fi password and tap confirm to proceed. change network If needed, you can tap to switch to another suitable Wi-Fi network for your doorbell.
- Page 9 8.2 PAIRING YOUR DEVICE Press continue to scan QR code using your doorbell. Hold 15cm away from your mobile screen. Press heard the beep after you scan hear a sound from your doorbell. The status light should be blue, code and blinking (refer to trouble on screen shooting guide on page 26 if you...
- Page 10 8.3 PAIRING YOUR DEVICE Once the pairing process is device complete a page showing added successfully will appear. You may choose to edit the device name or assign the device to a dedicated room before tapping done to finish the pairing process. Once your doorbell is paired to your Wi-Fi network, your doorbell is able to view at anytime from your...
- Page 11 9 OPERATING YOUR DOORBELL Once your doorbell is paired to your Wi-Fi network, you can view your doorbell at anytime from your smartphone as long as there is internet access. Live Screen Playback Screen Access to Settings Back to Device including share Screen device, motion...
- Page 12 10 PAIRING INDOOR CHIME UNIT Power on your indoor chime USB-A port unit with either a standard USB-A port or provided DC power adaptor, ideally somewhere near your door. The blue status light should DC Power Adaptor be on to indicate the chime is ready for pairing.
-
Page 13: Installation
11 INSTALLATION Before choosing your location, check the Wi-Fi strength/coverage in that area. 4. . A ngled Wall Mount IMPORTANT: Do not mount the doorbell unit on metal or near metal door Using both mounts, secure to mounting Terminals frames, security door, or proximity any metal door furniture. It might affect surface with supplied screws and wall the functionality of the doorbell. -
Page 14: Troubleshooting
12 TROUBLE SHOOTING What can I do if 1. Check your mobile device is connected to a 2.4GHz Do our current No - GRID products currently do not support 5GHz I fail to pair my Wi-Fi network, refer to below question for how to GRID products wireless connection GRID Connect... - Page 15 • WARRANTY Arlec guarantees this product in accordance with the Australian Consumer Law and all other applicable Australian and New Zealand laws that are unable to be excluded. Arlec also warrants to the original first purchaser of this product (“you”) from a retailer with which this document is given that this product will be free of defects in materials and workmanship for a period of 12 months from the date of purchase;...
