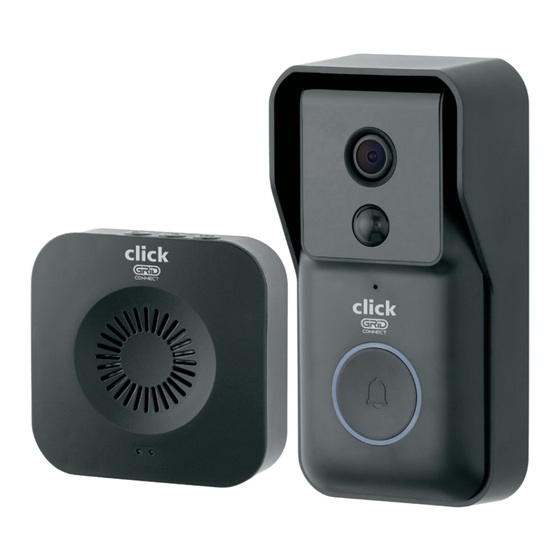

- Page 1 SMART HOME SMART HOME SMART WIRELESS VIDEO DOORBELL Wi-Fi CONNECTED AUTOMATICALLY DETECTS MOTION FEATURES EVENT RECORDING AND STREAMING FOR VIEWING ON YOUR SMARTPHONE QUICK START GUIDE IMPORTANT! PLEASE READ THESE INSTRUCTIONS CAREFULLY DC60HA...
- Page 2 SMART HOME 1 INTRODUCTION 3 IDENTIFICATION This SMART wireless door chime is designed for use in homes, apartments, Light Sensor/ Camera Lens Infrared LEDs offices, garages and sheds. It has been developed to be easily set up and operated, 1080p HD, with Detects low light and 140°...
- Page 3 SMART HOME 4 DOWNLOAD THE APP 5 INSTALL THE APP GRID Open the CONNECT app. If you are a new user, tap create new account and follow the prompts to complete NEW ACCOUNT account setup. LOG IN SETUP Download and install create new account GRID CONNECT...
- Page 4 SMART HOME 7 PREPARING YOUR DEVICE 8.0 PAIRING YOUR DEVICE Open the Grid Connect app. Tap Pull off the isolation strip to allow the , then select security on the batteries to make electrical contact. device page. Confirm the status light NOTE: Ensure the battery around the push button is flashing polarity (+/-) matches the...
- Page 5 SMART HOME 8.1 PAIRING YOUR DEVICE confirm scan Enter the Wi-Fi password confirm and tap to proceed. code If needed, you can tap change network to switch on screen to another suitable Wi-Fi network for your doorbell. Make sure that your Wi-Fi password is correct otherwise pairing will not be successful.
- Page 6 SMART HOME 8.2 PAIRING YOUR DEVICE Once the pairing process is complete a page showing device added successfully will appear. You may choose to edit the device name or assign the device to a dedicated room before tapping done to finish the pairing process. Once your doorbell is paired to your Wi-Fi network, your doorbell is able to view when the doorbell is pressed or motion is detected (if set) from your smartphone as long as there is internet access.
- Page 7 SMART HOME 9 OPERATING YOUR DOORBELL Once your doorbell is paired to your Wi-Fi network, you can view your doorbell, once doorbell is activated, from your smartphone as long as there is internet access. Live Screen Playback Screen Access to PIR mode Back to device Access to settings (motion detector...
- Page 8 SMART HOME 10 PAIRING YOUR INDOOR CHIME UNIT Power on your indoor chime unit with either a standard USB-A port or 3 x 1.5V “AA” type batteries, ideally somewhere near your door. Your indoor chime unit should have been paired with your video doorbell.
- Page 9 SMART HOME 11 CHARGING AND INSTALLATION INSTALLATION Before choosing your location, check the Wi-Fi strength/coverage in that area. Mounting Mark screw position through the wall IMPORTANT: Do not mount the doorbell unit on metal or near metal door Screw mount holes (Fig.05). frames, security door, or proximity any metal door furniture.
- Page 10 SMART HOME 12 TROUBLESHOOTING What can I do if 1. Check your mobile device is connected to a 2.4GHz Wi-Fi Do our current Grid Yes - AC routers support both 2.4G and 5G connections. Please I fail to pair my Grid network, refer to below question for how to check Wi-Fi products support AC connect your Grid Connect device to the 2.4G Wi-Fi network.
- Page 11 WARRANTY Any claim under this warranty must be made within 12 months of the date of purchase of the product. To make a claim under the warranty, take the product (with proof of purchase) to any Bunnings store, (see www.bunnings.com.au for store locations) or contact Arlec Australia Pty Ltd.
