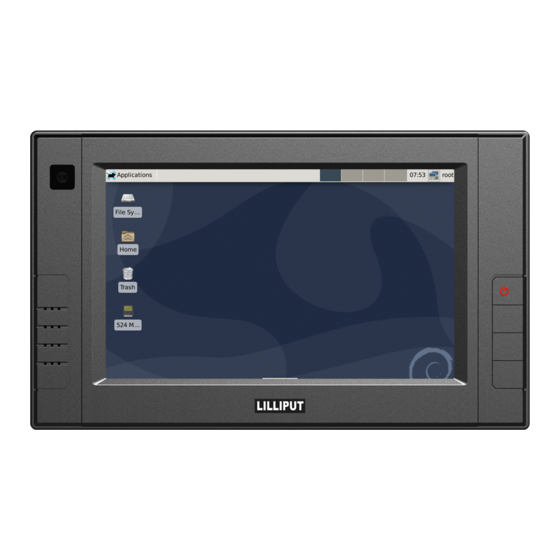

Lilliput PC-7106PRO User Manual

Lilliput PC-7106PRO User Manual

Embedded computer

Advertisement

Quick Links

Embedded Computer
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-7106PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lilliput PC-7106PRO

  • Page 1 Embedded Computer User Manual...
  • Page 2 Safety maintenance: Please maintain your system properly to make sure its service life and reduce the damage risk.  It should avoid the humidity and extreme temperature when being used.  Avoid prolonged exposure of the unit to direct sunlight or strong ultraviolet light.
  • Page 3: Table Of Contents

    Content 1. Product Description ....................8 1-1 Brief Introduction ................... 8 1-2 Optional Functions ..................8 1-3 Basic Parameters ..................9 1-4 Structure Function Explanation ..............11 2. Extended Cable Definition ................... 12 3. Instructions SIM card & TF card ................. 13 4.
  • Page 4: Product Description

    1. Product Description 1-1 Brief Introduction  7" 16:9 Digital touch wide screen, 800×480 physical resolution, with rich colors;  Comply with IP 64 Waterproof Standard;  Android 9.0 operation system;  Micro SD (TF) card storage, making the data reading reliable and daily expansion convenient.
  • Page 5: Basic Parameters

    1-3 Basic Parameters Specifications NXP i.MX 8M Mini, ARM® Cortex®-A53 Quad-Core 1.6GHz 3D GPU (1xshader, OpenGL®ES 2.0) 2D GPU Android 9.0 2GB LPDDR4+16GB Flash RAM+ROM 4GB LPDDR4+32GB Flash (optional) Video Decode 1080p60 (H.265, VP9, H.264, VP8) 1080p60 (H.264) Video Encode Sensors Gyroscope &...
  • Page 6 Built-in or external Microphone Build-in Microphone POWER DC 10-36V (DC 11-36V with built-in battery) Power Supply Power ≤10W Consumption Battery(optional) Built-in 2200mAh OTHERS Speaker Dimension 220x132x36.5mm Weight 740g Dust resistance test: IP6x Water resistance test: IPx4 Environment Operating temperature:-10℃~65℃(14℉~149℉) 0℃~40℃(32℉~104℉)(Built-in battery) Storage temperature:-20℃~70℃(-4℉~158℉)
  • Page 7: Structure Function Explanation

    1-4 Structure Function Explanation...
  • Page 8: Extended Cable Definition

    2. Extended Cable Definition Item Specification To connect with device cable Convertor COM 0 serial port Bluetooth COM 1 serial port Used to print debug information Built-in GPS (optional): RS232 or GPS for optional COM 2 serial port External GPS (optional): GPS function only RS232 / RS485 COM 3 serial port USB host port...
  • Page 9: Instructions Sim Card & Tf Card

    3. Instructions SIM card & TF card  The SIM card, memory card and the card connectors on the device are precision electronic components. When inserting the SIM card or memory card into the card connectors, you much insert after aligning to the position accurately in case of damaging the components.
  • Page 10: Menu

    4. MENU 4-1 Gestures Click, Double Click and Slide Long-press and Drag 4-2 Delete Long-press the application icon, and drag to the Home screen, then drop to the recycle lift-up to delete this software.
  • Page 11: Icon Bar

    4-3 Icon bar Icon Name Description Wi-Fi signal connection and status of signal WLAN weakness or strength. Bluetooth Bluetooth available Turn it on and enter do not Disturb mode. Not disturb The product is in silent state, no notification is displayed, and no notification prompt is issued.
  • Page 12: Applied

    4-4 Applied Scroll up to the “ ” icon in the lower left corner of the screen to see all the apps on the device Icon Name Description Phone Open the dial interface. After you set up your e-mail account, you will be E-mail reminded when there are new e-mails.
  • Page 13: Introduction

    4-5 Introduction 4-5-1 Power On / Off and Dormancy / Wake Click the power button on the device to open/close the device when the device goes to sleep (screen saver program) with forced power outage. The correct operation of the power key will help ensure the stability of the system.
  • Page 14 b. Check the battery level During charging, the status bar will display the battery power indicator, showing the charging percentage.To see the percent charge, slide down the status bar to see the percent charge. When the battery is fully charged, the DC input can be disconnected. If available, use a DC power supply to keep it charged.
  • Page 15 Turn on the switch after enter the system, as shown in the figure below...
  • Page 16: Acc Setting Path

    4-6 ACC Setting Path ACC settings located in ACC Settings under the category of System in the Settings of Android OS. Please refer to Figure 2-1, 2-2 and 2-3: Clock go to Settings and select "ACC Settings" as shown.
  • Page 17 ACC settings as shown in Figure 2-4 & Figure 2-5. Mark 1: The main switch of the three functions controlled by ACC, namely, light up the screen, close the screen and shut down. Mark 2: The switch of close screen function controlled by ACC. Mark 3: Click to pop-up dialog box as shown in Figure 2-6, to edit the screen off delay time after ACC outage.
  • Page 18: Using Gpio

    Figure 2-6 Screen off delay time setting dialog box Figure 2-7 Shut down delay time setting dialog box 4-7 Using GPIO 4-7-1 GPIO Tail Lines Instruction Regarding the definition diagram of GPIO interface, please see the details in Chapter “ 2. Extended Cable Definition ”. 4-7-2 GPIO Typical Connection The following figure is a typical connection method of GPIO.
  • Page 19: Gpio Interface

    4-7-3 GPIO interface ” to enter the GPIO interface: Double-click“ Name: GPIO pin number. Direction: GPIO state. You can choose GPIO as the input state or output state.As shown in figure “1”. Satate: HIGH of high level, LOW of low level Operation: Read whether the current mode is high or low, displayed in the status bar.
  • Page 20: Accessories

    5. Accessories Standard accessories: 1. Extended cable 1piece 2. DC12V adapter 1piece 3. Mini USB cable 1piece 4. User manual 1copy Optional accessories: 1. 75mm VESA rail slot 1piece 2. Mounting bracket 1piece 3. 2200mAh Li-ion battery 1piece...
  • Page 21: Trouble Shooting

    Trouble Shooting Power Problem Cannot boot up 1、 Wrong cable connection a)Connect Extended cable with device first, and connect the AC end of DC adapter with DC input port of Extended cable, then the other end of DC adapter connect with power plug socket. 2、Bad connection a)Check every connection and socket of power source Screen Problem...
