We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com
Contents
38
38
39
41
41
41
41
42
42
43
43
44
44
45
45
46
46
47
48
49
51
58
62
64
64
64
64
65
65
65
65
68
68
68
69
37
Advertisement
Table of Contents
Related Manuals for Smeg SF4120M
Summary of Contents for Smeg SF4120M
-
Page 1: Table Of Contents
4.7 Cleaning the inside of the oven 5 Installation 5.1 Electrical connection 5.2 Cable replacement 5.3 Positioning We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com... -
Page 2: Instructions
Instructions 1 Instructions IMPORTANT SAFETY INSTRUCTIONS PLEASE READ CAREFULLY AND RETAIN FOR FUTURE USE. 1.1 General safety instructions appliances, as long they are supervised or instructed by adults Risk of personal injury who are responsible for their • WARNING: If the door or the safety. -
Page 3: Instructions For Using Microwaves
Instructions Risk of damaging the appliance plastic or paper containers. • Do not use abrasive or corrosive Improper use detergents on glass parts (e.g. Danger of explosion powder products, stain removers and metallic sponges). • Use wooden or plastic utensils. •... - Page 4 Instructions • Clean the appliance constantly to cook food. and remove any food residue. • Do not use dishes with metallic • Do not use the microwave to dry decorations (gold-plated or silver). food. • The appliance operates in the •...
-
Page 5: Manufacturer Liability
Instructions 1.3 Manufacturer liability 1.6 Disposal The manufacturer declines all liability for This appliance must be disposed of damage to persons or property caused by: separately from other waste (Directives 2002/95/EC, 2002/ • Use of the appliance other than the one 96/EC, 2003/108/EC). -
Page 6: This User Manual
Instructions 1.8 How to read the user manual Our appliances are packed in non- polluting and recyclable materials. This user manual uses the following reading • Deliver the packing materials to the conventions: appropriate recycling centre. Instructions Plastic packaging General information on this user Danger of suffocation manual, on safety and final disposal. -

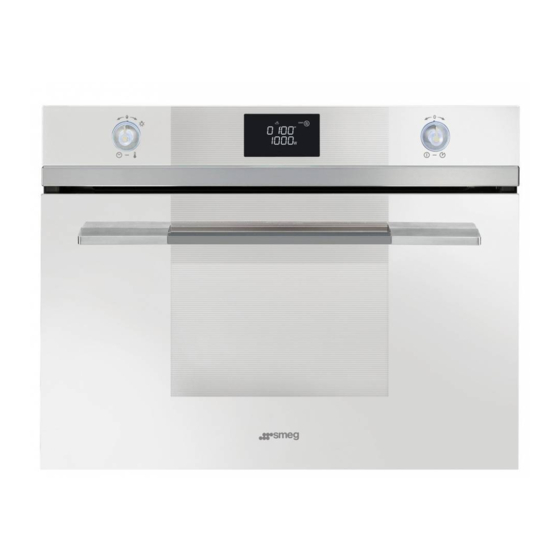

Page 7: Description
Description 2 Description 2.1 General Description 1 Control panel 2 LH Light bulb 3 RH Light bulb (on some models only) 4 Seal 5 Door 6 Rack/tray support frames Frame shelf... -
Page 8: Control Panel
Description 2.2 Control panel 2.3 Other parts Temperature knob (1) This knob is used to select: Shelves • Microwave power level The appliance features shelves to position • Cooking temperature trays and racks at different heights. The • Function's duration insertion heights are indicated from the bottom upwards (see 2.1 General •... -
Page 9: Microwaves
Description 2.4 Microwaves Baker Plate The appliance is equipped with a microwave generator called a magnetron. The microwaves generated are evenly emitted into the oven compartment in order to reach the food and heat it. Heating takes place through the process of friction between the molecules contained within the food (mainly water molecules), with the consequent generation of heat. -
Page 10: Use
3 Use Improper use Risk of damage to enamelled 3.1 Instructions surfaces High temperature inside the oven • Do not cover the bottom of the oven during use cavity with aluminium or tin foil sheets. Danger of burns • If you wish to use greaseproof paper, place it so that it will not interfere with the •... -
Page 11: First Use
4. Set a cooking time of 30 seconds. 5. Start cooking. NOT TO BE USED Metal Unsuitable cookware • Aluminium foil Risk of damages to the appliance • Aluminium trays These can lead to arcing or sparks. • Plates • If there is crackling or if sparks are •... -
Page 12: Using The Accessories
3.3 Using the accessories Baker Plate The Baker plate must be placed in the Racks and trays centre of the rack for perfect operation. Racks and trays have to be inserted into the side guides until they come to a complete stop. -
Page 13: Using The Oven
Boiling Rod 3.4 Using the oven When using the microwave to heat or Display reheat liquids, the boiling process may be delayed. To avoid this dangerous phenomenon, it is necessary to insert the supplied boiling rod (or a heat-resistant plastic spoon) in the container while heating. - Page 14 Operating modes Each time the temperature knob is pressed during the operation of a function the Stand-by: When no function is selected, the parameters will be cycled through in the display shows the current time and the following order. symbol For each parameter the setting can be altered by turning the temperature knob to the right or left.
-
Page 15: Cooking Functions
Setting the time 3.5 Cooking functions On the first use, or after a power failure, For microwave cooking, the food will be flashing on the appliance's must be placed in a container on display. To be able to start any cooking the rack on the first shelf. - Page 16 Microwave: 7. At the end of the cooking time the display 1. Select the microwave function using will indicate the word Stop. the function knob. 2. Press the temperature knob. Turn the temperature knob to set an additional cooking time. 3.
- Page 17 Microwave power levels Combination Microwave + grill function Below is a list of the power levels that can be selected: Power (W) Useful for Defrosting food Cooking meat or delicate cooking Combination cooking is a mix of traditional cooking and microwave Re-heating and cooking food operation.
- Page 18 8. Press the function knob to start Pre-heating stage combination cooking. In the grill function, cooking itself is preceded by a preheating stage, which Improper use allows the oven to heat to the cooking Risk of damages to the appliance temperature more quickly.
- Page 19 Minute minder Timed cooking (only for grill function) Timed cooking is the function This function only activates the which allows a cooking operation buzzer, without stopping cooking. to be started and then ended after a specific length of time set by the The minute minder can be user.
- Page 20 3. A few seconds after the required Programmed cooking (only for grill function) duration is set, the indicator light stops flashing and timed cooking starts. Timed cooking is the function 4. At the end of the cooking time STOP which allows a cooking operation to be started and then ended after appears on the display and a buzzer will a specific length of time set by the...
- Page 21 2. Turn the knob to set the cooking time 5. When cooking has completed the word (from 00:01 a 12:59). Keep the knob STOP appears on the display and a turned to produce a faster increase or buzzer sounds which can be decrease.
-
Page 22: Special Functions
3.6 Special functions 1. Position the rack on the required level. Place the empty Baker plate in the Heating centre. This function is for microwave re- 2. Press the function knob to select the heating of food that has been Baker function. - Page 23 6. When preheating has finished, the Cooking suggestions table appliance will wait for food to be Weight Time Type Shelf inserted. (min) Frozen pizza Fresh pizza Frozen Oven Chips Frozen chicken nuggets High temperature Danger of burns Fresh beaten eggs •...
- Page 24 3. Press the temperature knob to change the 5. Press the function knob to confirm the defrosting time. settings and start defrosting. 4. Turn the knob to set the defrosting time For best results during defrosting the (from 5 minute up to 99 hours). dish inside the oven will need to be 5.
- Page 25 “Turn” procedure If dish rotation is not performed the appliance will wait for one minute and then automatically continue defrosting. As a reminder the word “Turn” will remain displayed beneath the countdown indication. For best defrosting results it is recommended, when necessary, to turn the dish inside the oven compartment.
-
Page 26: Secondary Menu
3.7 Secondary menu Child Lock mode: This mode allows the appliance to lock the controls automatically The appliance also has a drop-down after one minute of normal operation secondary menu allowing the user to: without any intervention from the user. •... - Page 27 Showroom mode (for exhibitors only): Keep Warm Mode (some models only): This mode allows the appliance to In this mode, at the conclusion of the deactivate all heating elements, while cooking cycle for which a duration was set keeping the control panel active. (if not stopped manually), the appliance keeps freshly cooked food warm (at low temperatures) for around 1 hour.
-
Page 28: Cleaning And Maintenance
Cleaning and maintenance 4 Cleaning and maintenance Improper use Danger of explosion/burns 4.1 Instructions High temperatures inside the oven • Do not use detergents with high alcohol after use content or which can release inflammable vapours. Subsequent Danger of burns heating could set off an explosion inside •... -
Page 29: Food Stains Or Residues
Cleaning and maintenance 4.4 Food stains or residues 4.6 Cleaning the door glazing Do not use metallic sponges or sharp The glass in the door should always be kept scrapers as they will damage the surfaces. thoroughly clean. Use absorbent kitchen roll. - Page 30 Cleaning and maintenance Removing racks/trays support frames Cleaning the top of the compartment The appliance is equipped with a tilting grill Removing the guide frames enables the sides to be cleaned more easily. This element that allows for easy cleaning of the operation should be performed each time upper part of the oven compartment.
- Page 31 Cleaning and maintenance What to do if... The display is completely off: • Check the mains power supply. • Check whether an omnipolar switch upstream of the appliance supply line is in the “ON” position. The appliance does not heat up: •...
-
Page 32: Installation
Installation 5 Installation Fixed connection Fit the power line with an omnipolar circuit 5.1 Electrical connection breaker in compliance with installation regulations. Power voltage The circuit breaker should be located near Danger of electrocution the appliance and in an easily reachable position. -
Page 33: Positioning
Installation 5.3 Positioning Secure the appliance to the Heavy appliance piece of furniture Danger of crush injuries using screws. • Place the appliance into the piece of furniture with the aid of a second person. Pressure on the open door Cover the bushings with Risk of damages to the appliance... - Page 34 Installation Mounting under worktops (mm) Mounting into a column (mm) Make sure that the piece of Make sure that the piece of furniture rear/bottom part has an furniture top/rear part has an opening of approx. 60 mm. opening approx. 35-40 mm deep.
