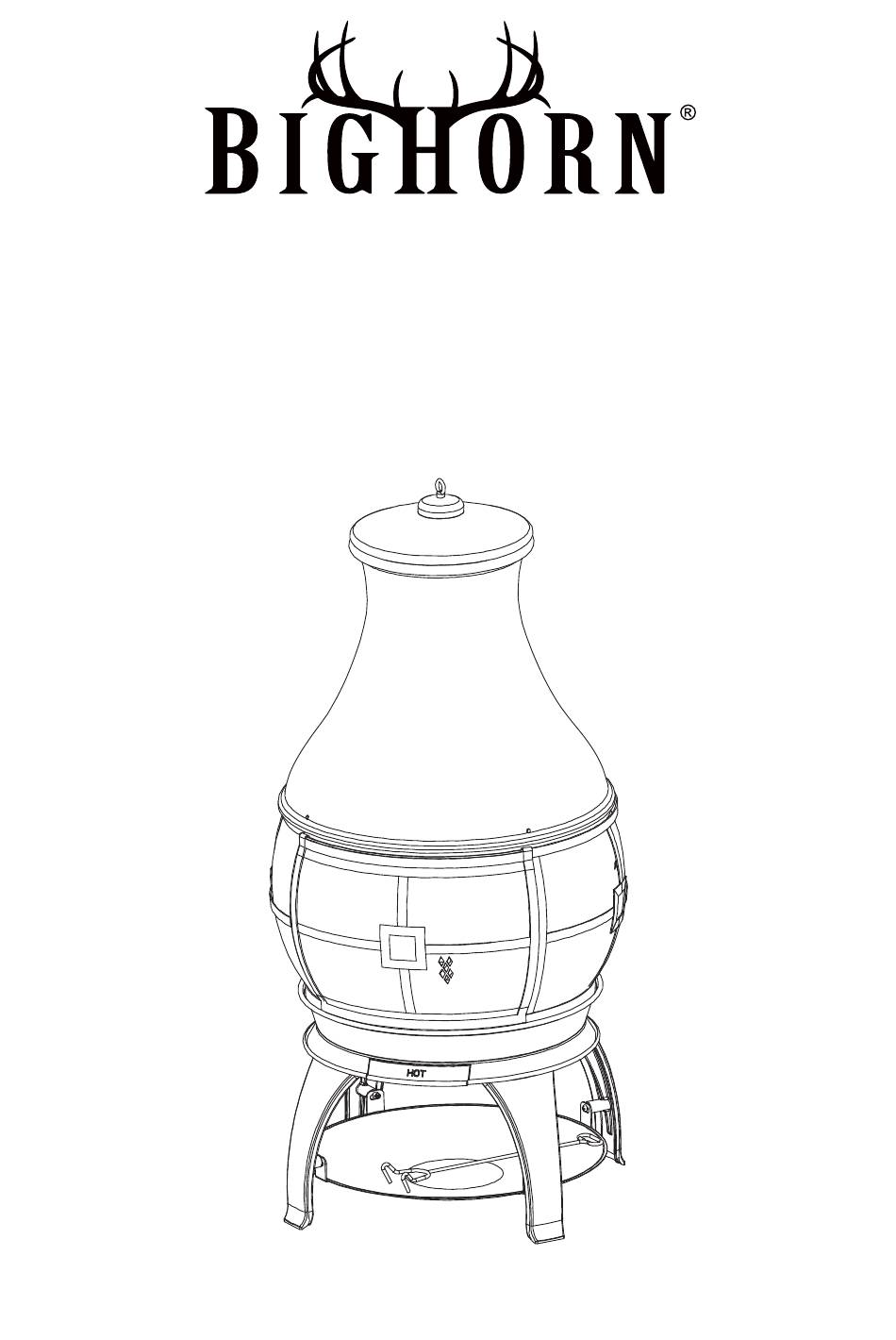

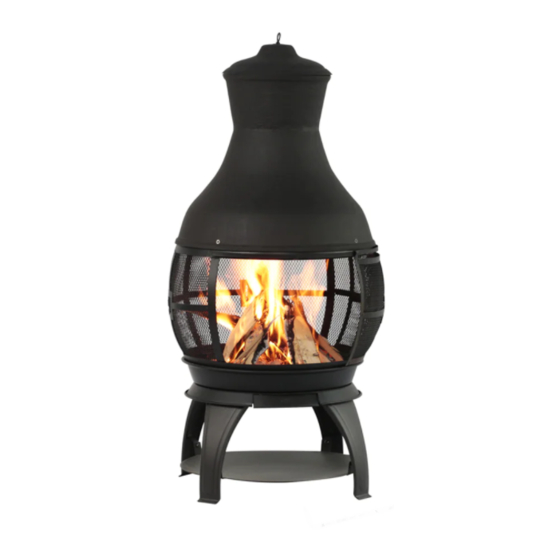

CHIMENEA
MODEL NO.: SRCH06D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHIMENEA SRCH06D and is the answer not in the manual?

Questions and answers

Related Manuals for BIGHORN CHIMENEA SRCH06D

Summary of Contents for BIGHORN CHIMENEA SRCH06D

  • Page 1 CHIMENEA MODEL NO.: SRCH06D...
  • Page 2 PACKAGE CONTENTS QUANTITY QUANTITY PART PART DESCRIPTION DESCRIPTION Chimney cap Lower stove bowl Ash tray assembly Chimney mesh cover Chimney body Sliding door assembly Poker Screen assembly Log rack assembly Charcoal grid Upper stove assembly...
  • Page 3 HARDWARE CONTENTS (shown actual size) M6 x 12 mm Bolt Washer Spring Washer (Preassembled) (Preassembled) Qty. 20 Qty. 4 Qty. 16 Qty. 16 (16 Preassembled) M6 x 15 mm M6 x 20 mm M6 x 15 mm Bolt Flat Bolt Flat Bolt Qty.
  • Page 4 ASSEMBLY INSTRUCTIONS 1. Remove nuts (AA), washers (CC) and spring washers (DD) from M6 x 15 mm bolts (GG). Line up the upper stove assembly (G) and lower stove bowl (H). Position the legs (J) beneath bowl (H) and attach using M6 x 15 mm bolts (GG), nuts (AA), washers (CC) and spring washers (DD).
  • Page 5 ASSEMBLY INSTRUCTIONS 3. Remove nuts (AA), washers (CC) and spring washers (DD) from M6 x 15 mm flat bolts (EE). Align the door of screen assembly (E) and gap of lower stove bowl (H). Attach the smaller end of screen assembly (E) onto upper stove assembly (G) with washers (CC), spring washers (DD), nuts (AA), and M6 x 15 mm flat bolts (EE).
  • Page 6 ASSEMBLY INSTRUCTIONS 5. Remove nuts (AA), washers (CC) and spring washers (DD) from M6 x 20 mm flat bolts (FF). Attach chimney body (C) on the top of screen CC DD AA assembly (E) with washers (CC), spring washers (DD), M6 x 20 mm flat bolts (FF) and nuts (AA).
  • Page 7 ASSEMBLY INSTRUCTIONS Insert the ash tray assembly (I) into the track on upper stove assembly (G). Place the poker (K) on the log rack assembly (L).
  • Page 8 LIGHTING INSTRUCTIONS 1. Open the sliding door using the poker, and put the log(s) (less than 1.8kg) on the charcoal grid. (NOTE: Make sure log does not extend to the charcoal grid edge, and the log height does not extend 35.6cm. The fire height should not extend 3/4 the height of screen.) 2.
