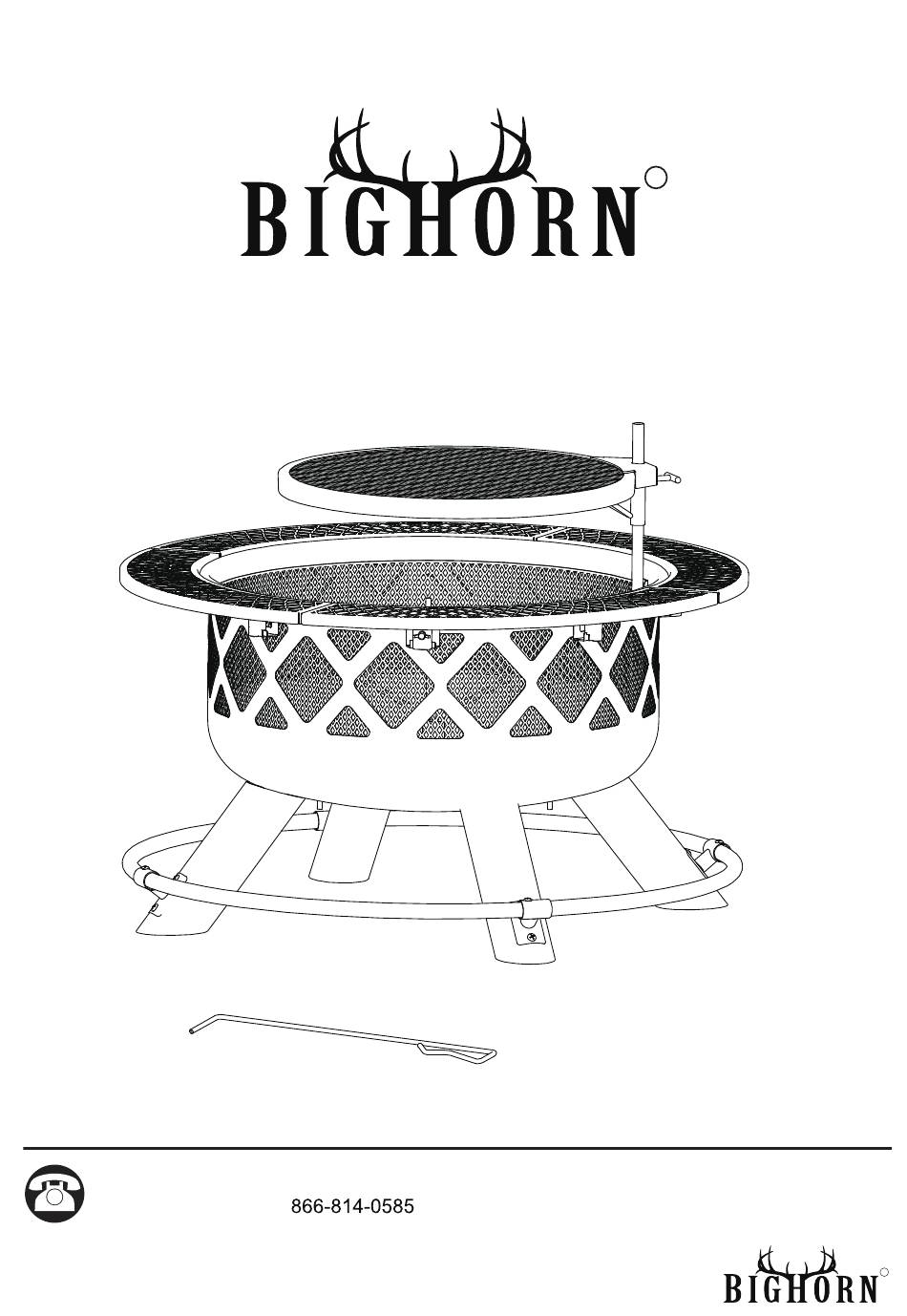

- Page 1 ITEM# 258363 MFR# SRFP9624 24 IN Mini Ranch Fire Pit Before returning to your retailer, call our customer Questions, problems, missing parts? service department at , 8 a.m. - 8 p.m., EST, Monday - Friday , or email us at...
-
Page 2: Package Contents
Package Contents A x 1pc B x 4pcs C x 4pcs D x 4pcs E x 1pc F x 1pc G x 1pc H x 1pc AA x 12pcs BB x 6pcs CC x 8pcs DD x 4pcs EE x 4pcs FF x 8pcs HARDWARE CONTENTS QUANTITY... -
Page 3: Safety Information
Safety Information Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING FOR YOUR SAFETY 1. This item is for outdoor use only, and shall NOT be used in a building, garage or any other enclosed area. - Page 4 Warnings 14. Do NOT store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. 15. Do NOT store or use an LP gas cylinder within 10 feet (3.05m) of this fire pit while it is in operation.
-
Page 5: Food Safety Tips
Warnings THIS FIRE PIT CAN BE USED AS A GRILL COOKING TIPS WARNING Do not grasp the cooking grate with your hands while it is hot. Use barbecue mitts for handling. Do not use water. FOOD SAFETY TIPS Always wash your hands thoroughly with warm soapy water before starting your meal preparations and after handling fresh meat, fish and poultry. - Page 6 Assembly Instructions NOTE: Assemble the fire pit on a non-abrasive surface. Step 1 Attach (4) legs (B) to fire bowl (A) with (8) M8 Nut (CC) and (8) M6 wahsers (FF). Hardware Used M8 Nut M6 washer Step 2 Insert one support ring section (C) into another and attach the support ring assembly to leg (B) with (2) M6 Bolt (AA) as illustrated.
- Page 7 Assembly Instructions Step 3 Secure (4) support ring sections (C) with (4) M5 Bolt (DD). Insert the pins on table panels (D) into the fixed brackets on the fire bowl (A). Attach (4) Wing Bolt (BB) to the fixed brackets on the fire bowl (A) as illustrated. NOTE: The protruding pin on the table panel (D) should be placed right upon the pole on the fire bowl (A).
- Page 8 Assembly Instructions Step 5 Attach the cooking grate (E) to the cooking grate stand bar (G) with (1) Wing Bolt (BB) as illustration. Note: Do NOT move the parts or change the configuration during use while the parts are hot. Hardware Used Wing Bolt...
- Page 9 Lighting 1. Make sure there is only a small amount of ash in the bottom of the bowl. 2. Place a layer of dry kindling or a natural fire-starter onto the center of the grate. 3. Place above that a layer of dry seasoned hardwood that is put to lengths no more than 3/4 the diameter of the bowl.
-
Page 10: Warranty Information
Warranty Information The appliance has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer.
