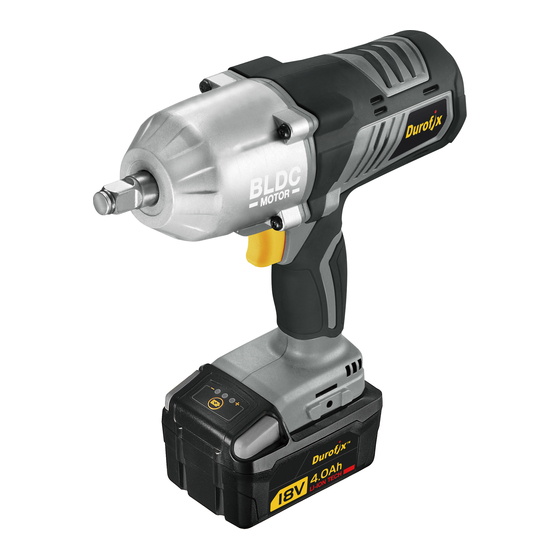

Brushless impact wrench
Hide thumbs
Table of Contents

Advertisement

Quick Links

RI2036A3
BRUSHLESS IMPACT WRENCH
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY,
OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT.
DO NOT ATTEMPT TO OPERATE THE TOOL UNTIL YOU HAVE READ AND
UNDERSTOOD ALL INSTRUCTIONS AND SAFETY RULES CONTAINED IN THIS
MANUAL. FAILURE TO COMPLY MAY RESULT IN ACCIDENTS INVOLVING FIRE,
ELECTRIC SHOCK, OR SERIOUS PERSONAL INJURY. SAVE THIS OWNER'S
MANUAL FOR FUTURE REFERENCE AND REVIEW IT FREQUENTLY FOR SAFE OPERATION.
PRODUCT INFORMATION MANUAL
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RI2036A3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DUROFIX RI2036A3

Summary of Contents for DUROFIX RI2036A3

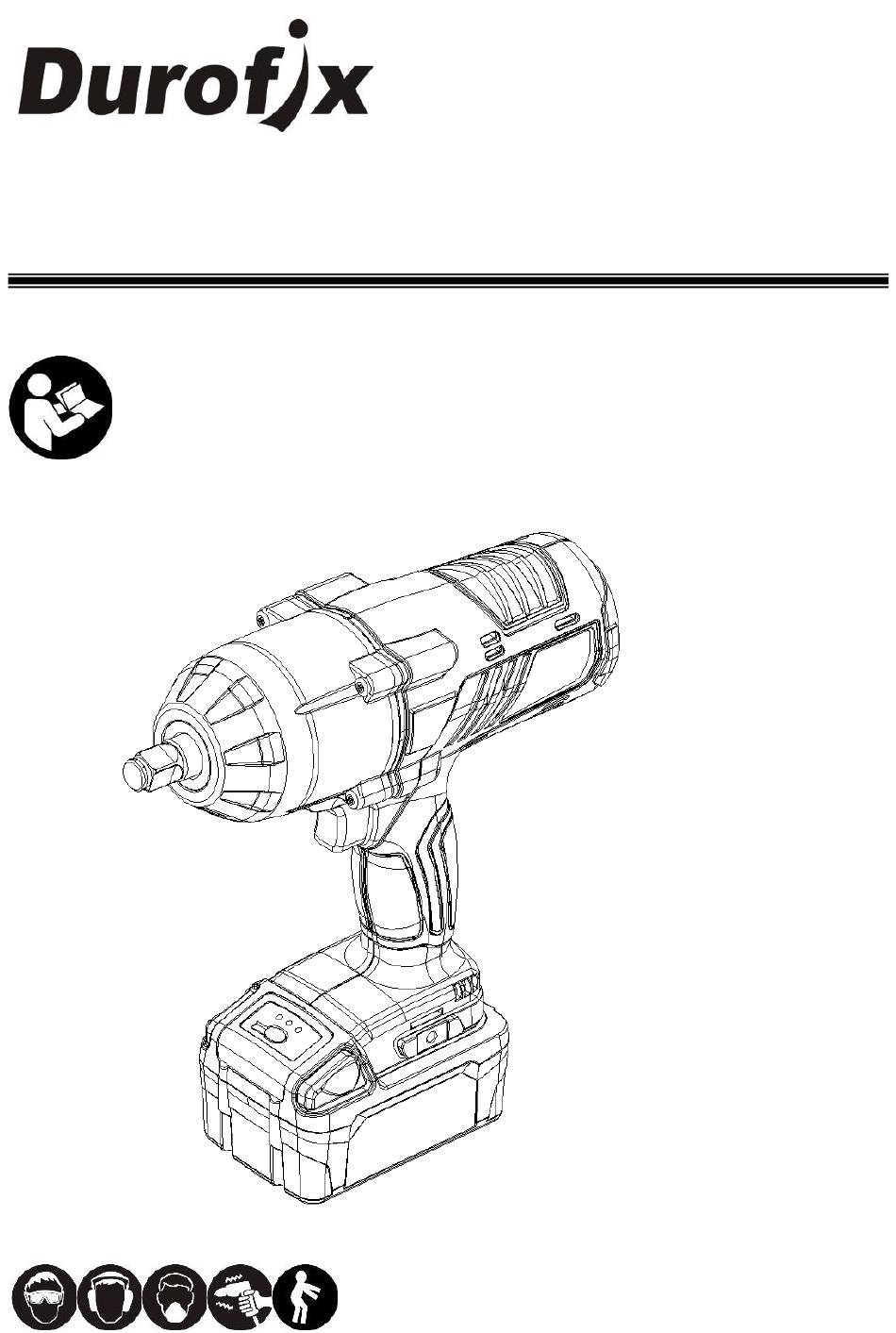

  • Page 1 RI2036A3 BRUSHLESS IMPACT WRENCH PRODUCT INFORMATION MANUAL THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. DO NOT ATTEMPT TO OPERATE THE TOOL UNTIL YOU HAVE READ AND UNDERSTOOD ALL INSTRUCTIONS AND SAFETY RULES CONTAINED IN THIS MANUAL.

  • Page 2: Intended Use

    THANKS FOR CHOOSING THIS PRODUCT Durofix provides you with products at an affordable price, and we would like you to be fully satisfied with this product and our technical support. If any help or advice is needed, please kindly contact us.

  • Page 3: Warning Label Identification

    WARNING LABEL IDENTIFICATION Read Manuals Before Operating Product. Wear Eye Protection. Wear Hearing Protection. Wear Dust Mask. Power tools can vibrate in use. Keep body stance balanced and firm. Do not overreach when operating this tool. IMPORTANT SAFETY RULES DANGER When using power tools, always prevent exposure and breathing of harmful dust and particles.

  • Page 4: Electrical Safety

    Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
  • Page 5 tools that have the switch on invites accidents. d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e.
  • Page 6 could result in a hazardous situation. i. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. j. When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

  • Page 7: Specific Safety Rules And Symbols

    temperature 130 °C can be replaced by the temperature 265 °F. h. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

  • Page 8: Functional Description

    SYMBOLS The label on your tool may include the following symbols. The symbols and their definitions are as follows: SYMBOL NAME EXPLANATION Volts Voltage (potential) No Load Speed No-load Rotational Speed Kilograms Weight Direct Current Type of Current IEC60417.5031(2002.10) d.c. Revolutions per Revolutions, Surface Speed, Strokes, etc.

  • Page 9: Specifications

    10. Battery Pack LCD PANEL COMPONENTS: 11. LED Indicating Lamp 12. LCD Display 13. Reduce Torque Range Button 14. Increase Torque Range Button SPECIFICATIONS Unit RI2036A3 Model Number V d.c. Voltage Drive/Anvil 1/2” Sq. Tightening Torque (Max.) ft-lbs 590 (800Nm)
  • Page 10 After 1 Minute of No Use Auto Shut-Off WARNING − that the vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used; and − of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
  • Page 11 Make sure the socket is fixed in the anvil while clicking on the ball of the anvil. REMOVING SOCKETS Always follow the procedure below to remove a socket. Always set switch (5) to off position when installing and CAUTION removing socket. OPERATION FUNCTIONS &...
  • Page 12 When the battery temperature is lower 5°F (-15°C), the power will be cut-off. At the same time, LED indicating lamp will be on in red and LCD panel will show “LT”. When the battry output current is over, the power will be cut-off. At the same time, LED indicating lamp will be on in red and LCD panel will show “OC”.
  • Page 13 BUILT-IN LED LIGHT A built-in LED light can illuminate the work area and improve vision when drilling/driving in areas with insufficient light. ELECTRIC BRAKE The variable speed switch is equipped with a circuit design electric of brake function. The tool will consistently operate to quickly stop rotating after the switch release. BATTERY POWER INDICATOR Trigger the tool and Battery Indicator to show the battery pack’s remaining capacity One light ON: 30% remaining capacity.

  • Page 14: Maintenance

    Bolt Size: Larger bolt diameters generally require higher fastening torque. Fastening torque will also vary according to length, grade, and torque coefficient. Material: The type of material and surface finish of the material will affect fastening torque. Fastening Time: Longer fastening time results in increased fastening torque. Using a longer fastening time than recommended could cause the screws to be overstressed, stripped or damaged.

  • Page 15: Protecting The Environment

    Keep the tool cool down to room temp., press the trigger without action. (Display normal) (Motor damage) (Send the tool to service center checking and repairing by professional technician) For technical support, call: +877-693-8665 Service address: Durofix Inc. 9168 Pittsburgh Ave., Rancho Cucamonga, CA 91766 www.durofix.com...
