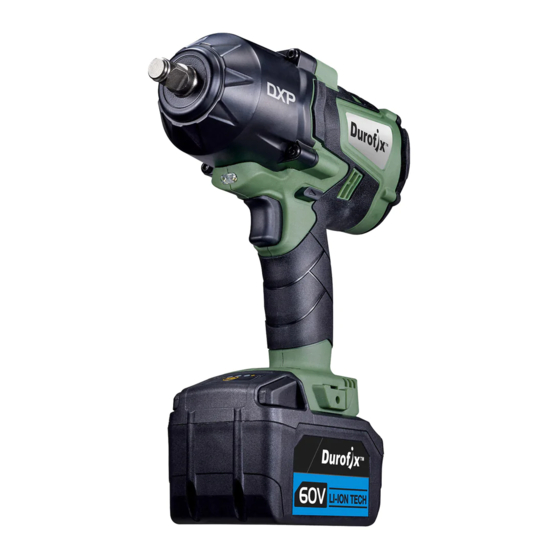

  • Page 1 RI60164 /RI60164-6 BRUSHLESS IMPACT WRENCH PRODUCT INFORMATION MANUAL Manuel informations du produit Manual información del producto THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. CE MANUEL CONTIENT DES INFORMATIONS IMPORTANTE CONCERNANT LA SECURITE, L'OPERATION, LA MAINTENANCE ET LE STOCKAGE DE CE PRODUIT.

  • Page 2: Intended Use

    1English1 THANKS FOR CHOOSING THIS PRODUCT Durofix provides you with products at an affordable price, and we would like you to be fully satisfied with this product and our technical support. If any help or advice is needed, please kindly contact us.

  • Page 3: Important Safety Rules

    1English1 Power tools can vibrate in use. Keep body stance balanced and firm. Do not overreach when operating this tool. Recycling Do not drop the battery and charger into trashcan. IMPORTANT SAFETY RULES DANGER When using power tools, always prevent exposure and breathing of harmful dust and particles.

  • Page 4: Electrical Safety

    1English1 WARNING a. Keep work area clean and well lit. Cluttered and dark areas invite accidents. b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 5 1English1 before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
  • Page 6 1English1 could result in a hazardous situation. h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Use clamps or other practical way to secure and support the workpiece to a stable platform.

  • Page 7: Specific Safety Rules And Symbols

    1English1 g. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“. h. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
  • Page 8 1English1 all safety information available from your material supplier. Do not stare at operation lamp. SYMBOLS The label on your tool may include the following symbols. The symbols and their definitions are as follows: SYMBOL NAME EXPLANATION Volts Voltage (potential) No Load Speed No-load Rotational Speed Kilograms...

  • Page 9: Functional Description

    1English1 FUNCTIONAL DESCRIPTION CONTROLS AND COMPONENTS 1. 1/2” Anvil 2. Aluminum Gearbox Housing 3. Built-in LED light 4. Forward / Reverse Control Button 5. Variable Speed Switch 6. Anti-slip Soft Grip 7. Speed Mode Setting 8. Power indicator 9. Battery Pack Release Button 10.

  • Page 10: Specifications

    1English1 SPECIFICATIONS Unit RI60164 RI60164-6 Model Number V d.c. Voltage 1/2”sq. 3/4”sq. Drive/Anvil ft-lbs L:332/450 L:332/450 Max. Tightening Torque M:450/600 M:450/600 H:1000/1350 H:1070/1450 ft-lbs 1500/2050 1500/2050 Max. Reverse Torque L:0-900 No Load Speed M:0-1200 H:0-1600 0-2400 Impacts per Minute Tool Weight(with battery 2.0Ah) 8.54...
  • Page 11 1English1 The variable speed switch provides safety feature to the user for fastening. To turn the tool on, squeeze the trigger switch. To turn the tool off, release the trigger switch (see Fig. 1A). Your tool is equipped with a brake. The hammer will stop as soon as the trigger switch is fully released.
  • Page 12 1English1 Press the button to select the speed in Low (1) or Middle (2) or High (3) (selected one will be lightened on) 0-900 rpm ： Middle : 0-1,200 rpm Error High 0-1,600 rpm ： High Remark : If the red LED bright, it means there is the error or start up protection.

  • Page 13: Operation

    1English1 Always follow the procedure below to install a socket. Insert a socket into the anvil. (see Fig. 3) Make sure the bit is fixed in the anvil while clicking on the ball of the anvil. REMOVING SOCKETS Always follow the procedure below to remove a socket. Pull out the socket from the anvil directly.

  • Page 14: Maintenance

    1English1 Bolt Size: Larger bolt diameters generally require higher fastening torque. Fastening torque will also vary according to length, grade, and torque coefficient. Material: The type of material and surface finish of the material will affect fastening torque. Fastening Time: Longer fastening time results in increased fastening torque. Using a longer fastening time than recommended could cause the screws to be overstressed, stripped or damaged.

  • Page 15: Protecting The Environment

    Protection Agency to find out about special restrictions on the disposal of tool, charger and battery or return them to a certified service center for recycling . For technical support, call: 886-4-25683366 Service address: Mobiletron Electronics Co., Ltd. No. 85, Sec. 4, Chung-Ching Rd. Ta-Ya, Taichung, 428,Taiwan www.durofix.com.tw English...
