6. Battery charger is fused (2 spares included). The fuse will break and the charger will
be switched off upon - Short Circuit, Overload or Reverse Polarity. Simply change
the "blade" style fuse to restart charging.
7. To disconnect the battery when charged, switch off the mains supply and unplug.
Caution: Because of risk of explosive gas, only disconnect the crocodile clips when
the mains are disconnected. Check the fluid levels and top up if necessary and wipe
the battery clean. If the battery has been removed, replace in the vehicle and re-
connect.
Product Specifications:
Streetwize Part Number: SWBCLED12
Voltage Rating Input: 240V, 50Hz - 165W
Output Rating: 6/12V - HI: 8.5 ADC equal to 12Amps RMS
6/12V - LOW: 5.5 ADC equal to 8Amps RMS
The WEEE symbol on this product means that this product should be ethically
dismantled or recycled to minimise environmental impact.
Please check with your local authority for more information.
IMPORTANT: ADDITIONAL SAFETY INFORMATION
This Battery Charger is NOT intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they are supervised or have been given instruction concerning use of the Battery
Charger by a person responsible for their safety.
FOR INDOOR USE ONLY
WARRANTY: To validate the warranty on this product, please go to our web site and
enter your details on the warranty screen. www.streetwizeaccessories.com.
RoHS
COMPLIANT
M17 1RY
Streetwize Accessories:
Sales enquiries: sales@streetwizeaccessories.com
Technical enquiries: support@streetwizeaccessories.com
www.streetwizeaccessories.com

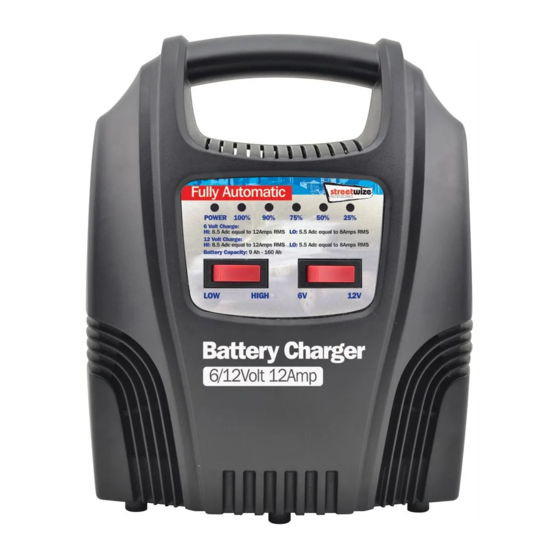

6/12Volt 12Amp
Fully Automatic
Battery Charger
Part No. Rated Output Battery Voltage
SWBCLED12 12Amp
Please read these instructions carefully before operating this battery charger.
SWBCLED12
Battery Capacity
6/12 Volt 40-160 Ah
