Streetwize Master Charger SW100JS Manual

SW100JS Manual AW 2016_Layout 1 06/06/2016 17:24 Page 1
Fault Possible cause
Bad contact of power socket.
No charging
current
"Select Voltage" switch is set
incorrectly.
Initial voltage is too low.
+ and - polarity terminals of
battery are oxidized and/or dirty.
Battery has been damaged.
+ and - polarity terminals of
Low charging
current battery are oxidized and/or dirty.
Battery not accepting charge.
Battery is charged fully.
"Select Voltage" switch is set
Excessive
transformer incorrectly.
noise
Unstable position.
Product Specifications:
Streetwize Part Number: SW100JS
Voltage Rating Input: 240V 50Hz, 270W
Output Rating: 12v DC - Trickle charge - 7Amp
Quick charge - 15Amp
Engine Jump Start 100Amp
The WEEE symbol on this product means that this product should be ethically
dismantled or recycled to minimise environmental impact.
Please check with your local authority for more information.
IIMPORTANT: ADDITIONAL SAFETY INFORMATION
This Battery Charger is NOT intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they are supervised or have been given instruction concerning use of the Battery
Charger by a person responsible for their safety.
FOR INDOOR USE ONLY
WARRANTY: To validate the warranty on this product, please go to our web site and
enter your details on the warranty screen. www.streetwizeaccessories.com.
RoHS
COMPLIANT
M17 1RY
Streetwize Accessories: Sales enquiries: sales@streetwizeaccessories.com
Technical enquiries: support@streetwizeaccessories.com www.streetwizeaccessories.com
Solution
Repair or change power socket.
Select correct voltage position.
Change battery.
Clean terminals.
Replace battery.
Clean terminals.
Replace battery.
Measure specific gravity.
Select correct voltage position.
Position charger on a stable surface.

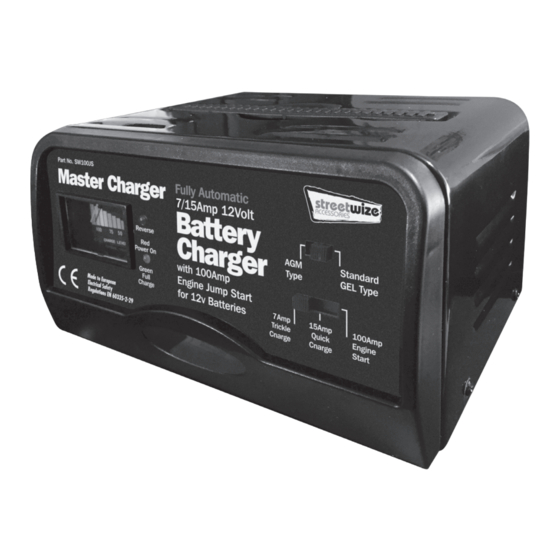

Fully Automatic 7/15Amp 12Volt
Battery Charger
with 100amp Engine Jump Start
for 12v Batteries
SW100JS
Part No. Rated Output
SW100JS Trickle - 7Amp
Quick charge - 15Amp
Engine start - 100Amp
Please read these instructions carefully before operating this battery charger.
Battery Voltage Battery Capacity
12 Volt 20-150 Ah
