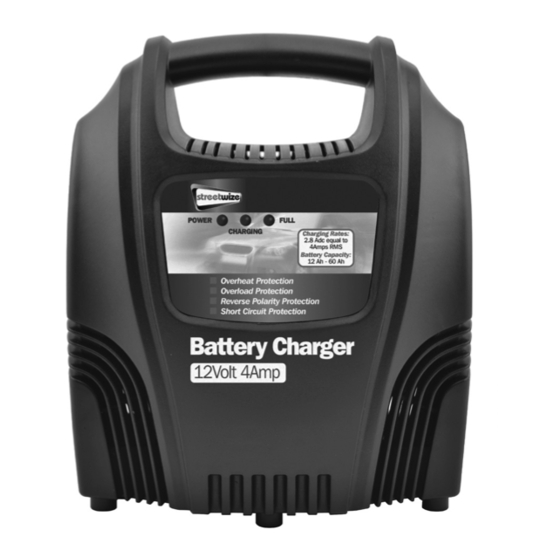

- Page 1 12Volt 4Amp & 6Amp Battery Charger SWCBC4 SWCBC6 Part No. Rated Output Battery Voltage SWCBC4 2.8A DC (4 Amp RMS) 12 Volt SWCBC6 3.5A DC (6 Amp RMS) 12 Volt Read these instructions before operating this battery charger and retain for future reference!
- Page 2 INDEX Safety Operating Instructions Car Battery Maintenance Simple Faults Environmental Protection SAFETY 1. GASES: When the battery is being charged you may notice bubbling in the fluid caused by the release of gas. As the gas is flammable no naked lights should be used around the battery, and the area should be kept well ventilated.
- Page 3 5. STORING OF THE MAINS CABLE: Included with the Streetwize Battery Charger are two plastic ‘U’ shaped cable holder brackets. These should be inserted into the holes in the rear of the charger. When inserted the mains lead can be stored by winding it round these brackets, and then placing the plug into the dummy socket on the back of the Battery Charger.
- Page 4 3. CONNECTION Connect the crocodile clips to the battery in the following order: A) Connect the positive charging lead (RED) to the positive terminal post of the battery (marked P or +). B) Connect the negative lead (BLACK) to the negative post of the battery (marked N or -).
- Page 5 CAR BATTERY MAINTENANCE It is essential to keep your battery regularly charged up throughout the year, especially during the winter months. In the winter the effectiveness of your car battery is reduced by the cold. Oil is thick engines are difficult to start and the heater, windscreen wipers and lights are all draining power.
- Page 6 CHECKING THE CONDITION OF YOUR BATTERY Using a hydrometer, which can be purchase from most motor accessory stores, you can check the specific gravity of the electrolyte in each cell. The hydrometer is used to suck up a quantity of fluid from the cell. The weighted float inside the hydrometer will register the condition of that cell.
- Page 7 Battery Chargers should be ethically dismantled or recycled to minimise environmental impact. Please check with your local authority for more information. Product Specifications: Streetwize Part Number: SWCBC4 Voltage Rating Input: 230V ~ 50Hz - 52W Output Rating: 12V 2.8A DC...
- Page 8 Battery Charger by a person responsible for their safety. RoHS COMPLIANT M17 1RY Streetwize: Ashburton Road West, Trafford Park, Manchester M17 1RY For product support: E: support@streetwizeaccessories.com T: +44 (0)161 447 8597 For trade enquiries: E: sales@streetwizeaccessories.com T: +44 (0)161 447 8580 For spare parts: E: spareparts@streetwizeaccessories.com...
