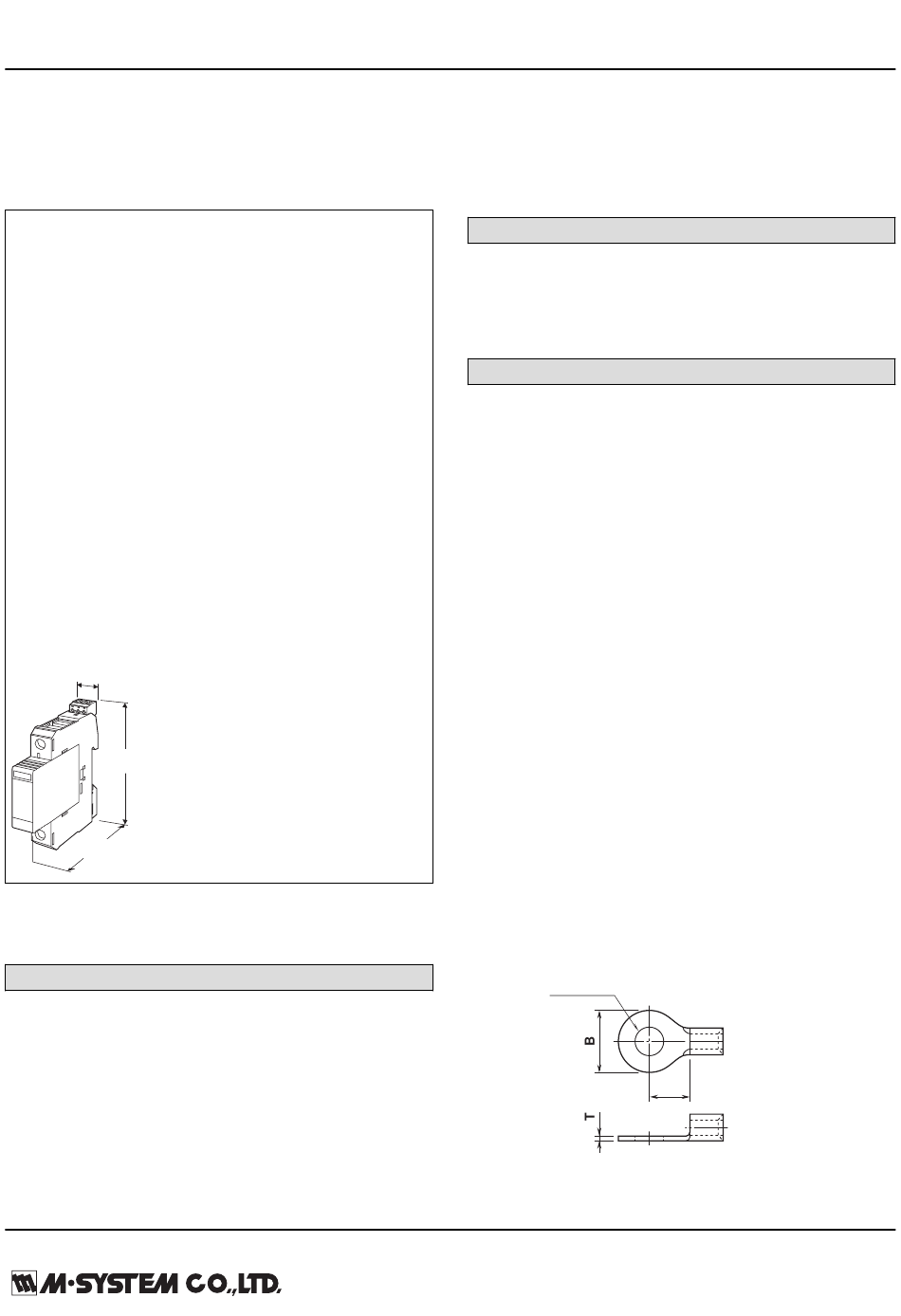

Lightning Surge Protectors for
Electronics Equipment M-RESTER
ONE-PORT SURGE PROTECTOR
BETWEEN NEUTRAL AND PROTECTIVE EARTH
Functions & Features
• Designed to protect electronics equipment from induced
lightning surges with gas discharge tube
• One-port surge protector according to IEC61643-1
• Connected between neutral and protective earth
• High discharge current capacity of 40 kA (8/20 μs)
• Protect against overvoltage between N and PE caused by
earth fault
• No interruption of power supply even when the head
element is removed: easy maintenance and replacing
• Degraded head element is automatically separated from
the power lines to prevent overheating, with a relay contact
output to alert the failure status.
• Head-base connection is keyed so that only a head
element of correct line voltage can be mounted.
Typical Applications
• Protection between N and PE of TT system
• Low-voltage distribution board
• Combination with installation for large load current
18 ( .71)
97
(3.82)
65
(2.56)
mm (inch)
MODEL: MAKN–220[1]
ORDERING INFORMATION
• Code number: MAKN-220[1]
Specify a code from below for [1].
(e.g. MAKN-220/AN)
OPERATIONAL VOLTAGE
220: 220 V AC
[1] OPTIONS
Configuration
Blank: With alarm output
/AN: Without alarm output
/BN: Head element for replacement
RELATED PRODUCTS
• One-port surge protector for power supply use (model:
MAKF)
• Single mount adaptor (model: MBS)
• Wiring bridge (model: CNB)
GENERAL SPECIFICATIONS
Construction: Plug-in
Degree of protection: IP20 (If the solderless terminals are
covered with insulation tubes.)
Surge protection type: Voltage switching type one-port SPD
(IEC61643-1)
Discharge element: Gas discharge tube
Connection
Line: M5 screw terminal (spring up-screw type)
(torque: 2.5 N·m)
Alarm output: Euro type connector terminal
(torque: 0.25 N·m)
Applicable wire size
Line connection: See the sloderless terminal drawing.
Alarm output: 0.14 to 1.5 mm
Housing material: Flame-resistant resin (black)
Alarm output: The SPDT relay trips when the thermal
breaker operates and/or the head element is removed.
Rated load: 250 V AC @0.5 A (resistive load)
125 V AC @0.2 A (resistive load)
Minimum switching load: 5 V DC, 1 mA
Line voltage identification key: The connection of the head
element and the base is keyed for exact matching.
Safety function: Thermal breaker incorporated
Failure indicator: The check window color changes from
green (normal) to black (failed and the thermal breaker
separated the M-rester from the circuit).
• Applicable Solderless Terminal Size
MAKN SPECIFICATIONS
MODEL: MAKN
2
(7 mm exposed)
diameter d
F
ES-8142 Rev.1 Page 1/6
d : M5 use
B ≤ 13.0 mm
F ≥ 7.0 mm
T ≤ 1.8 mm

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAKN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for M-system MAKN

  • Page 1 M-rester from the circuit). • Applicable Solderless Terminal Size ORDERING INFORMATION diameter d d : M5 use • Code number: MAKN-220[1] B ≤ 13.0 mm Specify a code from below for [1]. F ≥ 7.0 mm T ≤ 1.8 mm (e.g.
  • Page 2: Installation

    MODEL: MAKN INSTALLATION Operating temperature: -5 to +55°C (23 to 131°F) Operating humidity: 30 to 90 %RH (non-condensing) Mounting: DIN rail; Surface mounting available with the Single Mount Adaptor model: MBS. Weight: 100 g (3.53 oz) PERFORMANCE Response time: ≤ 100 nsec Maximum discharge current: 40 kA (8/20 μsec.)
  • Page 3: Connection Examples

    *2. Cable length between the branch point and the earthing: 0.5 meters or less recommended *3. The protected device's metal enclosure must be cross-wired to the earth terminal of the MAKN. If the protected device has no earth terminal, earth only the MAKN.
  • Page 4 MODEL: MAKN ■ CONNECTION EXAMPLES BY POWER SYSTEMS Connection examples of MAKF and MAKN are shown as following. • Single-phase/2-wire connection • Single-phase/2-wire (three-phase delta connection earthed in the middle of phases) or single-phase/3-wire connection Protective device Protective device of the switchgear...
  • Page 5 MODEL: MAKN EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch) ■ HEAD ELEMENT & BASE, COMBINED SOLDERLESS TERMINAL 5 (.20) [30 (1.18)] ACCESS PORT DIN RAIL TERMINAL BLOCK FOR [1 (.04)] ALARM OUTPUT (optional) BASE HEAD ELEMENT [1.5 (.06)] CHECK WINDOW...
  • Page 6 MODEL: MAKN SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM Head Element N/PE Discharge Thermal Failure Element Breaker Indicator PE/N ALARM OUTPUT Base *1. M5 screw terminal *2. Terminal block provided for the alarm output option. Specifications are subject to change without notice.
