ELLA MIDI CHEST
133346
Assembly instructions
Need Help?
With: Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999
Advertisement
Related Manuals for Next 133346
Summary of Contents for Next 133346

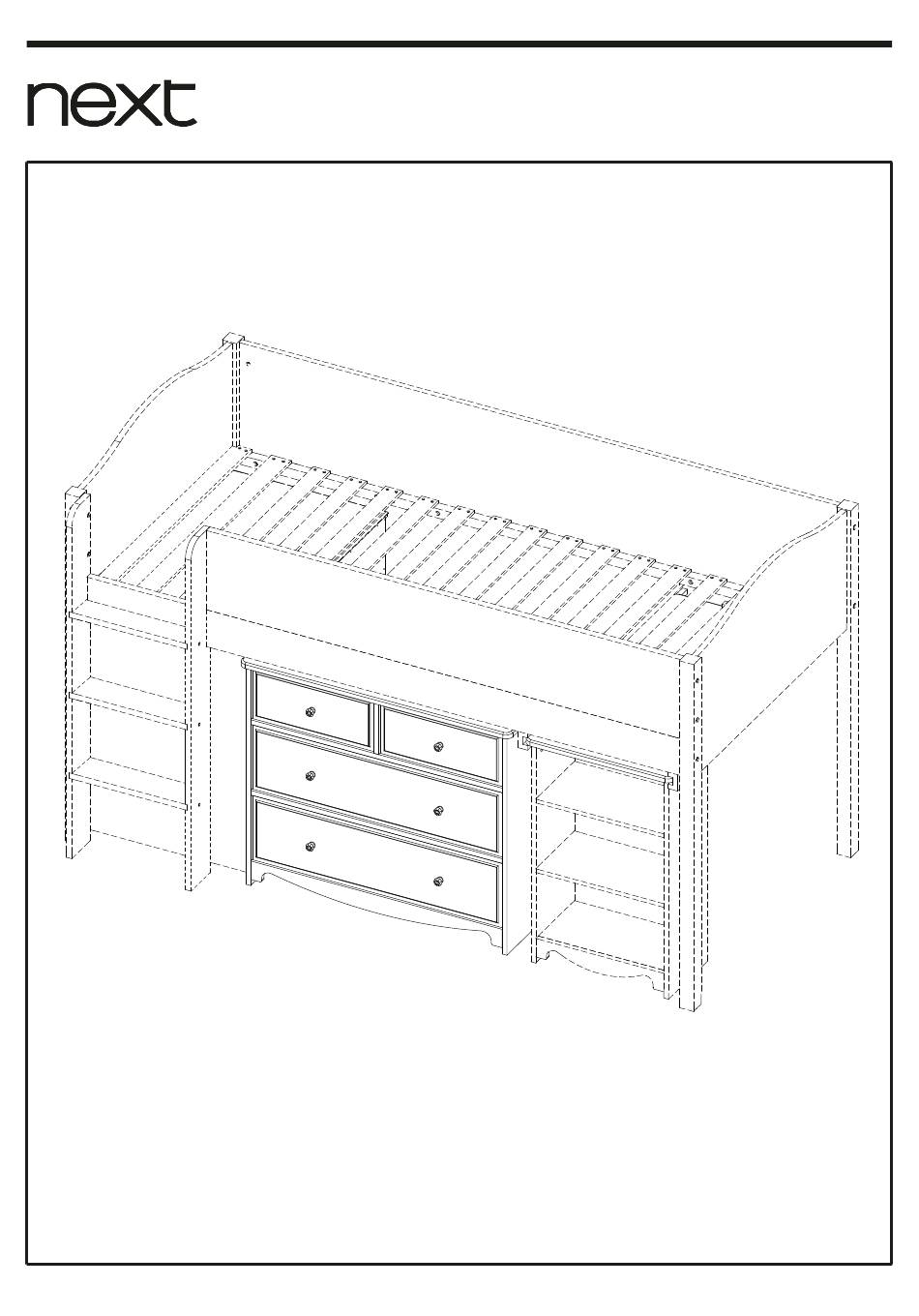

- Page 1 ELLA MIDI CHEST 133346 Assembly instructions Actual product size H73 x W86 x D43cm Need Help? With: Assembly instructions Missing or damaged parts IMPORTANT - RETAIN FOR FUTURE REFERENCE CALL: 0333 777 8999 Produced in China for Next Retail Ltd. 133346-2015-V1...
-
Page 2: Before You Start
Absorption can cause wood to warp or finishes to de-laminate. Do not place hot items (e.g. hot drinks) directly on to the wood To View our full furniture range please visit www.next.co.uk surface. Please make sure you use a placement or coaster. -
Page 3: Getting To Know Your Product
ELLA MIDI CHEST 133346 Assembly instructions GETTING TO KNOW YOUR PRODUCT Produced in China for Next Retail Ltd. 133346-2015-V1... - Page 4 37.1 x 34.8cm 80.5x 4.4cm 80 x 21cm 80.5x 4.4cm 35 x 17.7cm 80.5x 6.5cm 35 x 17.7cm 80.5x 4.4cm 77.4 x 17.7cm 62.5x 4.4cm 78.4 x 34.8cm 82.4x 68cm 33.8 x 4.4cm Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 5 6.5 x 35mm 15 x 9mm 12 x 9mm 3.5 x 25mm 3 x 12mm 3 x 11mm 3.5 x 27mm 3.5 x 38mm Fixtures and fittings supplied (not to scale) Ref Dimensions Visual Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 6 Tighten until shoulder is flush Shoulder with panel. Do not overtighten or undertighten (see example below) NO GAP 6.5 x 35mm B x 8 3 x 12mm K x 6 F x 6 Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 7 BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTIL SECURE CORRECT WRONG 15 x 9mm 8 x 30mm C x 4 A x 4 15 x 9mm 8 x 30mm C x 4 A x 4 Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 8 ELLA MIDI CHEST 133346 Assembly instructions 6.5 x 35mm B x 1 15 x 9mm 8 x 30mm C x 1 A x 1 Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 9 ELLA MIDI CHEST 133346 Assembly instructions 3.5 x 38mm I x 2 6.5 x 35mm B x 7 Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 10 ELLA MIDI CHEST 133346 Assembly instructions 15 x 9mm 8 x 30mm C x 7 A x 7 3 x 11mm G x 27 Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 11 ELLA MIDI CHEST 133346 Assembly instructions 6.5 x 35mm 3.5 x 25mm E x 8 B x 2 8 x 30mm 12 x 9mm D x 2 A x 2 Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 12 12 x 9mm 6.5 x 35mm 8 x 30mm D x 10 A x 2 B x 10 3.5 x 27mm 3.5 x 25mm J x 4 H x 4 E x 8 Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 13 ELLA MIDI CHEST 133346 Assembly instructions 6.5 x 35mm B x 8 12 x 9mm 3.5 x 27mm J x 2 H x 2 D x 8 Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 14 WARNING: Always ensure the wall to be drilled is free from hidden electrical wires, water and gas pipes. Please read separate instructions contained with this part (L) on the correct way of securing this strap. L x 1 Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 15 ELLA MIDI CHEST 133346 Produced in China for Next Retail Ltd. 133346-2015-V1...
- Page 16 ELLA MIDI CHEST 133346 Produced in China for Next Retail Ltd. 133346-2015-V1...
