AMES 910GD-01 Installation, Operation And Maintenance Manual

Pressure reducing control valve with hydraulic check feature
Hide thumbs

Advertisement

Quick Links

Download this manual
Installation, Operation and Maintenance
Model 910GD-01/610GD-01
Pressure Reducing Control Valve with Hydraulic Check Feature
Sizes: 11/4" to 24"
WARNING
!
Read this Manual BEFORE using this equipment.
Failure to read and follow all safety and use information
can result in death, serious personal injury, property
damage, or damage to the equipment.
Keep this Manual for future reference.
WARNING
!
Local building or plumbing codes may require modifica-
tions to the information provided. You are required to
consult the local building and plumbing codes prior
to installation. If the information provided here is not
consistent with local building or plumbing codes, the
local codes should be followed. This product must be
installed by a licensed contractor in accordance with
local codes and ordinances.
WARNING
!
Need for Periodic Inspection/Maintenance: This product
must be tested periodically in compliance with local codes,
but at least once per year or more as service conditions
warrant. All products must be retested once maintenance
has been performed. Corrosive water conditions and/or
unauthorized adjustments or repair could render the product
ineffective for the service intended. Regular checking and
cleaning of the product's internal and external components
helps assure maximum life and proper product function.
NOTICE
For Australia and New Zealand: Pipeline strainers should be
installed between the upstream shutoff valve and the inlet of
the backflow preventer.
It's important that this device be tested periodically in compli-
ance with local codes, but at least once per year or more as
service conditions warrant. If installed on a fire sprinkler system,
all mechanical checks, such as alarm checks and backflow
preventers, should be flow tested and inspected internally in
accordance with NFPA 13 and NFPA 25.

Table of Contents

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Setting the Pressure Reducing Control . . . . . . . . . . . . . . . . . . . . . . 3
Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Valve Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
ACV Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
IOM-A-ACV-910-01_610-01
Page

Advertisement

loading
Need help?

Need help?

Do you have a question about the 910GD-01 and is the answer not in the manual?

Questions and answers

Related Manuals for AMES 910GD-01

Summary of Contents for AMES 910GD-01

  • Page 1: Table Of Contents

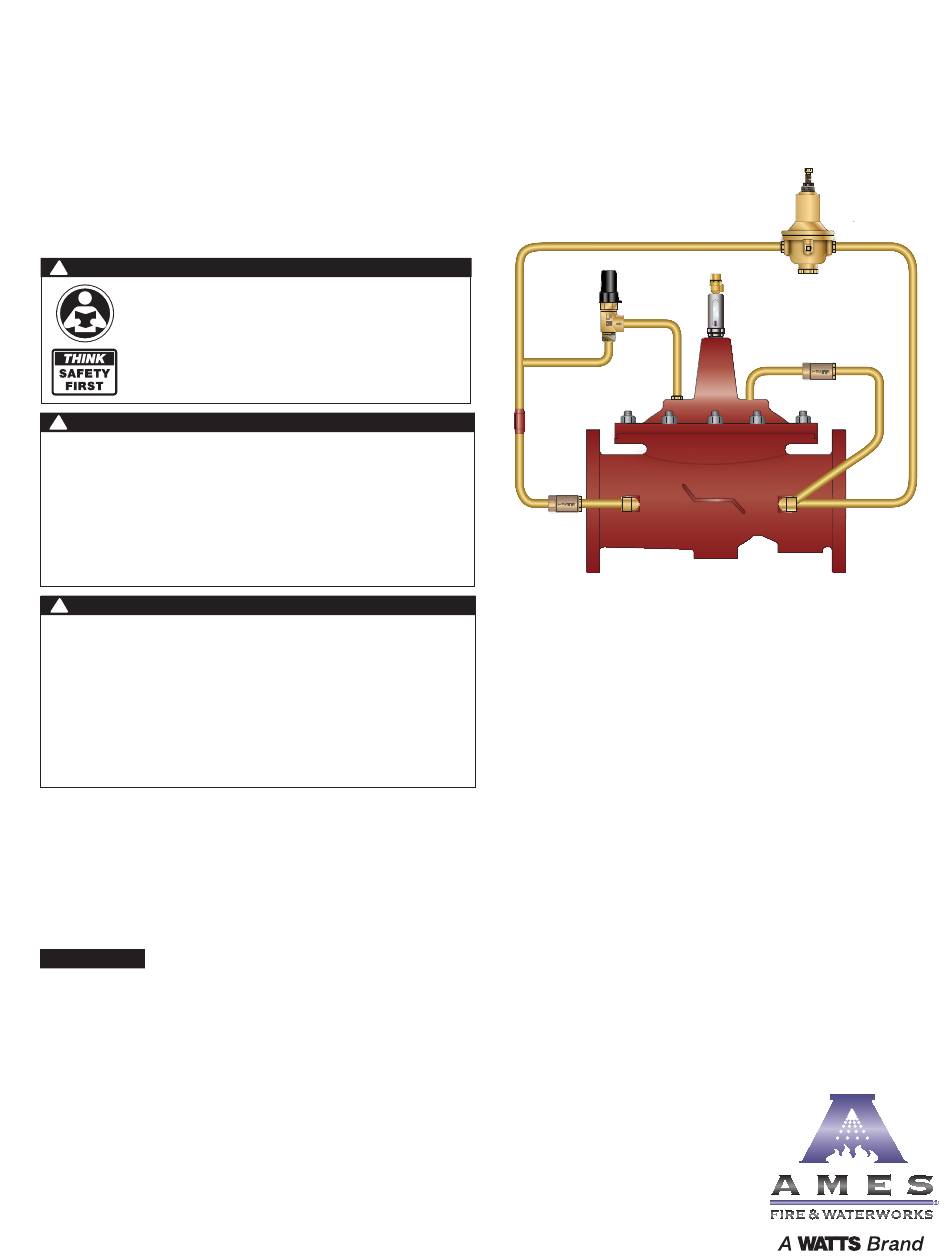

    IOM-A-ACV-910-01_610-01 Installation, Operation and Maintenance Model 910GD-01/610GD-01 Pressure Reducing Control Valve with Hydraulic Check Feature Sizes: 11/4" to 24" WARNING Read this Manual BEFORE using this equipment. Failure to read and follow all safety and use information can result in death, serious personal injury, property damage, or damage to the equipment.

  • Page 2: Introduction

    910GD-01 (Globe) Pressure Reducing Control Valve with Hydraulic Check Feature Standard Components 1 – Main Valve (905GD - Single Chamber) 2 – Pressure Reducing Control 3 – Check Valve 4 – Fixed Orifice X – Isolation Cocks Operation The Combination Pressure Reducing and Check Automatic Control...

  • Page 3: Setting The Pressure Reducing Control

    Valve Servicing Dimensions FLOW FLOW FLOW FLOW The following tables detail the recommended minimum valve servicing dimensions. Globe Size (in) 1 1/4 1 1/2 21/2 A (in) B (in) Angle Size (in) 1 1/4 1 1/2 2 1/2 C (in) D (in) Setting the Pressure Reducing Control Note: Starting up the system will require bleeding air and draining water from the valve.
  • Page 4 STEP 2 Loosen a tube fitting or cover plug at the main valve to allow air to vent during start-up (See Image 5 and 6). Image 5 Image 6 STEP 3 Pressure the line, opening the upstream isolation valve slowly (Labeled #1 in Figure 2).
  • Page 5 STEP 5 Fine-tune the Pressure Reducing Control adjustment to the pressure set point by turning the adjustment screw IN, clockwise to increase or OUT, counterclockwise to decrease downstream pressure (See Image Image 7 STEP 6 Opening Speed Flow Control Adjustment: The Opening speed flow con- trol allows free flow into the cover and restricted flow out of the cover of the main valve.

  • Page 6: Maintenance Schedule

    Automatic Control Valve Maintenance Schedule To ensure peak performance and longevity of your automatic • Annual Maintenance control valve, Watts/Ames recommends following the below – Conduct monthly & quarterly inspections. standard maintenance schedule. – Inspect & clean all strainers. • Monthly Maintenance –...
  • Page 7 Troubleshooting Guide Issue Possible Cause Corrective Action Notes Main Valve will not Closed isolation valves in pilot system. Check isolation valves, ensure open open. Insufficient supply pressure. Check upstream pressure. Depending on water source, supply pressure may not be controlled by valve operator.

  • Page 8: Valve Disassembly Instructions

    Valve Disassembly Instructions Before undertaking valve disassembly, it is recommended to gather the following tools to aid you during the process: • Small & large adjustable wrenches • Screwdriver set • Machinist fine metal file • Fine wire brush • Bench vise •...
  • Page 9 6. After removing the Stem Nut, the remainder of the Disc & Diaphragm Assembly should disassemble easily. Polish stem guide surfaces with fine emery cloth to remove any mineral deposits and inspect for excessive wear. Remove any mineral build-up from other components with wire brush or by using a Mineral Dissolving Solution.
  • Page 10 8. Replace Seat Disc, Diaphragm and Spacer Washers provided in Main Valve repair kit (refer to Table 2 or 3 for correct repair kit part number). Re-assemble in the reverse order of disassembly. Table 2: Full Port Valve (905GD/905AD) Repair Kits Size (in) 1 1/4 1 1/2...

  • Page 11: Acv Schematic

    ACV Assembly Diagram – Series 910GD-01 NOTICE Installation: If unit is installed in any orientation other than horizontal (cover up) OR extreme space constraints exist, consult customer service prior to or at the time of order. Item Description Material Pipe Plug...
  • Page 12 Limited Warranty: Ames Fire & Waterworks (the “Company”) warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge.

This manual is also suitable for:

610gd-01
