AMES 2000 CIV Series Installation, Service, Repair Kits, Maintenance

Ames Model 2000 CIV
Double Check Valve Assemblies
1
Sizes: 2 ⁄ " to 10"
2
Ames Model 3000 CIV
Double Check Detector Assemblies
Sizes: 3" to 10"
• Installation • Service
Ames Model 2000 CIV and 3000 CIV backflow
preventers may be installed in either a vertical or
horizontal position.
Install valve in the line with arrow on valve body
pointing in the direction of flow.
They should always be installed in an
accessible location to facilitate testing
and servicing.
Pipe lines should be thoroughly flushed to re-
move foreign material before installing the unit. A
strainer should be installed as shown, ahead of
backflow preventers to prevent discs from unnec-
essary fouling.
CAUTION: Do not install with strainer when backflow
preventer is used on seldom-used water lines which
are called upon during emergencies, such as fire
sprinkler lines, etc.
For technical assistance, contact your local Ames
representative.
It's important that this device be tested periodically in
compliance with local codes, but at least once per
year or more as service conditions warrant. If installed
on a fire sprinkler system, all mechanical checks, such
as alarm checks and backflow preventers, should be
flow tested and inspected internally in accordance
with NFPA 13 and NFPA 25.
Limited Warranty (Full description of limited warranty is found in
Ames Product catalogue.)
This Ames warranty is expressly in lieu of any other warranties, ex-
pressed or implied including without limitation, warranties of MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Ames
shall not be responsible for any incidental or consequential damages
including without limitation, damages or other costs resulting from la-
bor charges, delays, vandalism, negligence, fouling caused by foreign
material, damage from adverse water conditions, chemicals, or any
other circumstances over which Ames has no control.
No statement, representation, agreement or understanding, oral or
written, made by agent, by an authorized Ames dealer, an Ames
representative or employee which is not contained in this limited
warranty will be recognized or enforceable or binding upon Ames
Company, Inc. Only a written statement signed by and officer of
Ames may modify this limited warranty.
Any action for breach of any Ames Warranty must be commenced
within one (1) year after date on which cause of action occurred.
Basic Installation Instructions

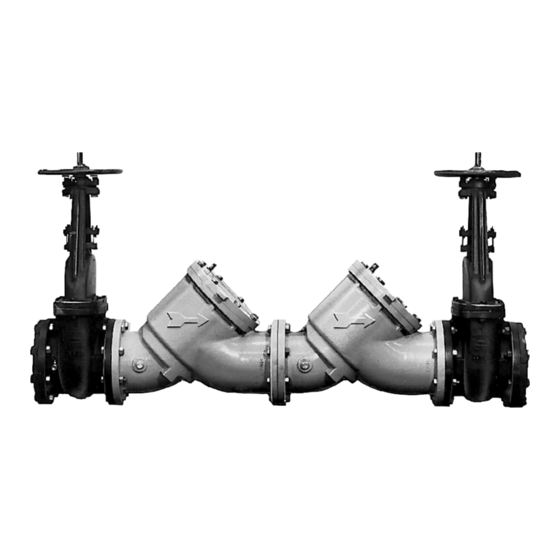

Ames 8" 2000 CIV OS&Y shown
