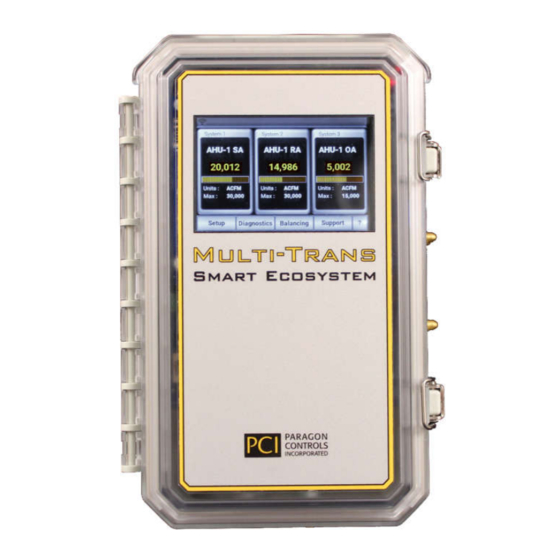

Multi-Trans
Smart Ecosystem
MTSE
Installation, Operation
& Maintenance Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTSE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCI MTSE

Summary of Contents for PCI MTSE

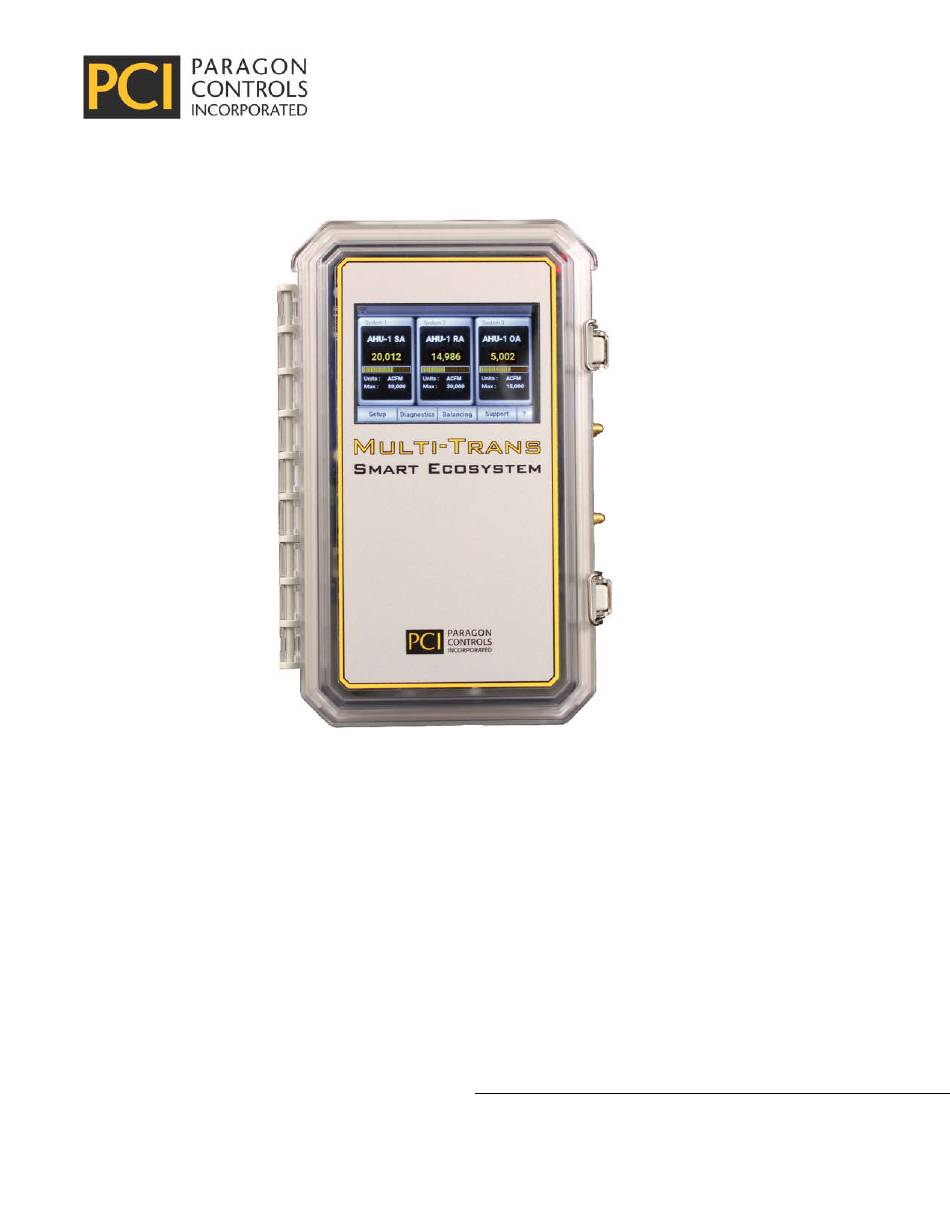

  • Page 1 Multi-Trans Smart Ecosystem MTSE Installation, Operation & Maintenance Manual...

  • Page 2: Table Of Contents

    DRAFT MTSE IO&M Manual TABLE OF CONTENTS INTRODUCTION ..........................1 1.1. Description ........................... 1 1.2. Specifications ..........................1 1.3. Safety ............................1 1.3.1. Electrical Connections ......................1 1.3.2. Static Electricity ........................1 INSTALLATION ..........................2 2.1. Product Installation Dimensions ....................2 2.2.

  • Page 3: Introduction

    (e.g., total fan static, duct static, pre and final filters) in any combination for a total of 9 sensing points. The MTSE can connect to and receive a differential pressure signal from each fan’s piezometer-ring airflow sensors or field installed airflow stations. This signal is scaled and linearized before being displayed locally and transmitted out as a 4-20mA or 0-10VDC signal, as well as on Modbus or BACnet network communication.

  • Page 4: Installation

    DRAFT MTSE IO&M Manual 2. INSTALLATION The MTSE is rated for either indoor or outdoor installation. When installed outdoors, do not install the MTSE where the display screen is in direct sunlight. Avoid locations that are subject to high vibration.

  • Page 5: Electrical Connections

    Figure 2.2 – Terminal Block Description J1 – Power In The MTSE can be powered with 24VAC or 24VDC. Allowable range is 20-28V. Pin 1 on the power supply terminal is the positive leg, however the device is reverse polarity protected.

  • Page 6: Common Electrical Connections

    DRAFT MTSE IO&M Manual 2.2.1. Common Electrical Connections PCI recommends cable should be low capacitance, shielded 22 or 24 AWG twisted wire for all electrical connections. When connecting multiple MTSE units on a common communication network, connect shielding wires together and connect only one side of the shielding wire to earth ground at the building automation system;...
  • Page 7 DRAFT MTSE IO&M Manual Figure 2.4 – Typical 3 System connection to 24VAC/DC power, 4-20mA loop-powered temperature transmitters, analog receiving devices, or network communication. Paragon Controls Inc, Rev J 2/3/2021...
  • Page 8 DRAFT MTSE IO&M Manual Figure 2.5 – Typical 3 System connection to 24VAC/DC power, 0-10V three-wire temperature transmitters, analog receiving devices, or network communication. Paragon Controls Inc, Rev J 2/3/2021...

  • Page 9: Pneumatic Connections

    2.3. Pneumatic Connections The MTSE can measure a maximum of five airflow points in up to three systems and monitor up to four ΔP points for a total of 9 sensing points. Two pneumatic plenum-rated signal tubing lines are required to be connected to the MTSE for each sensing point, a high (or Total) and a low (or Static) connection.

  • Page 10: Mtse Configurations

    DRAFT MTSE IO&M Manual 3. MTSE CONFIGURATIONS The MTSE can be configured to measure airflow in up to 3 unique Systems and monitor up to 4 additional differential pressure (ΔP) points up to a total of 9 sensing points. 3.1.

  • Page 11: System Configurations

    DRAFT MTSE IO&M Manual 3.2. System Configurations The MTSE can be custom configured to match most applications to measure, sum, and report up to 3 systems and 4 ΔP points for a total of up to 9 sensing points, as described below: System Each System is defined as having all the following unique properties: 1.

  • Page 12: Display Types

    DRAFT MTSE IO&M Manual 3.2.1. Display Types Depending on how your MTSE was ordered, the System quantity and ΔP quantity will change the appearance of the Normal Active Display. Shown below are images of a single system and a two- system configuration with no ΔP points of measurement.

  • Page 13: Display Features

    DRAFT MTSE IO&M Manual 3.3. Display Features 3.3.1. Sensor Data Page Shortcut Touch anywhere within the dashed red box on any of the Normal Active Display Types (whether it is one system or up to three systems) and the user will be taken to the Sensor Data Page which displays the flow rate and pressure for each individual sensor.

  • Page 14: Menu Information

    Sensor Data Page individual sensor View system and parameter configuration System Overview information Reset MTSE to Factory Default Settings Factory Defaults (Caution - resetting will remove parameters set in the field) If instructed by the Factory, software can be Software Update...

  • Page 15: Setup Menus

    DRAFT MTSE IO&M Manual 4.2. Setup Menus In each of these menus, the parameters for Systems 1, 2, and 3 (description of a System can be found in Section 3.2) will be configured. For example, if the user is in the Operating Range Menu the operating range for Systems 1, 2 and 3 will be set in this page.
  • Page 16 Enter Operating Range for each system; Max value that represents 100% of output For Piezometer Coefficients that incorporate a Standard Density term, toggle Std. Den. to Incld Enter Balancer and MTSE flow measurements to calculate a K-factor 2. K-Factor Or enter K-factor directly...

  • Page 17: Operating Range Menu

    Allows user to enter or modify an existing Area Factor if Area is selected in Area Type. The cross- sectional area of the flow station or duct is used to determine volumetric flow in the MTSE. If a new Area Factor value is entered and causes the previous entered Operating Range value to exceed the new minimum or maximum calculated full-scale range, the new area factor will be set, and operating range will be the new full-scale maximum.

  • Page 18: K-Factor

    The MTSE is able to remove this standard density term so that actual airflow measurement can be calculated with density correction. When this field is set to Incld. in the MTSE, this means that standard density is included in the manufacturer-supplied fan coefficient and therefore the MTSE removes standard density for airflow calculations.

  • Page 19: Analog I/O Configuration

    FLOW CORRECTION EXAMPLE The balancer is consistently measuring a value of 9,500 CFM, which is 500 CFM less than the 10,000 CFM MTSE value at the time of the balancer measurement. The user would then perform the following math function: Balancer Measurement / MTSE Measurement = K-Factor, so 9,500 CFM / 10,000 CFM = 0.950...

  • Page 20: Network Communications

    1 second. Shown below is the System Filter Menus page. For example, if the MTSE is measuring OA flow on a roof top unit and is experiencing large fluctuations in readings caused by wind, slow the response time by increasing the number of samples and increasing the interval time.

  • Page 21: Temperature Compensation & Altitude

    DRAFT MTSE IO&M Manual Baud Rate The Baud Rate menu allows the user to set a BACnet network baud rate from 9.6K to 76.8Kbps or from 9.6K to 115.2Kbps for Modbus. The selected baud rate should match the network baud rate. The default is 38.4Kbps.

  • Page 22: Alarm Options

    The value entered will need to be converted to Inches of Mercury (in.Hg) for density correction. 4.2.7. Alarm Options High and Low alarms are available for each System in the MTSE to alert the user to a situation defined on this menu page. Paragon Controls Inc,...
  • Page 23 Lockdown is useful in applications where the air handling unit or system is turned off and the user does not want to see flow because the MTSE is extremely sensitive at very low velocities and may show flow through leaking closed dampers or backdraft through a fan. Lockdown locks the display and process values to zero when the flow values are below the specified Lockdown value entered, as calculated by percentage of operating range.

  • Page 24: Units And Precision

     Low flow alarm set at 500 cfm The MTSE will report zero flow and therefore enter a low flow alarm when the measured flowrate falls below 1,000 cfm for the duration of the lockdown delay. Therefore, a low flow alarm will be triggered at about 1,000 cfm, not the desired 500 cfm.

  • Page 25: Δp Settings

    DRAFT MTSE IO&M Manual is selected. For example, if standard flow is selected, only standard flow units will be selectable for that system. Changing the engineering units will not convert the values entered for Operating Range or Alarms; new values will need to be entered in the correct units. Default units is ACFM.

  • Page 26: Diagnostics Menu

    The Sensor Data Page button will navigate to a page displaying measured values for the number of transducers in the MTSE. The transducers are in sequential order from (1) to (10) and display the Fan # tagging, Flow, and Pressure. The Fan # tagging is not set at the Factory and can be entered here by touching the box area next to the corresponding Sensor # to bring up the keypad.
  • Page 27 This could be either a faulty sensor or sensor quantities were incorrectly assigned during factory setup; for example, if there are only 6 sensors in the MTSE however the unit is setup such that the total quantity entered for all systems and OA is 7 sensors, there is no 7 sensor available and therefore an error would be reported for the missing (unresponsive) 7 sensor during acknowledgment.

  • Page 28: System Overview

    DRAFT MTSE IO&M Manual Zero Error – Zero calibration outside +/-20% of factory calibrated zero 4.3.2. System Overview The system overview pages display many of the parameters configured on the device and can be used to quickly diagnose and troubleshoot issues that may arise. Press right arrows to navigate to pages 2 and 3.

  • Page 29: Factory Defaults

    4.3.3. Factory Defaults The Factory Defaults button allows the user to return all values in the MTSE to the values entered at the Factory. Pressing the “Yes, I am sure.” button from the factory defaults page loads all the parameters saved from the original Factory setup.

  • Page 30: Screensaver

    When a new uSD card is provided, the field technician has the option of saving parameters set or adjusted in the field to the uSD from the MTSE settings. This action should be performed when the user wishes to keep the settings currently on the MTSE and save those to a new uSD provided by Paragon Controls.

  • Page 31: K-Factor

    DRAFT MTSE IO&M Manual AutoZero Enable/Disabled If the user wishes to disable the AutoZero function for whatever reason, the following enable/disable selector switch has been made available. AutoZero Interval The AutoZero interval settings adjusts the frequency at which the AutoZero runs. The range is 1 to 24 hours at 1-hour increments.
  • Page 32 DRAFT MTSE IO&M Manual High Flow Alarm If any system alarm is enabled and the flow for that respective system exceeds the high flow alarm value set in the setup menu Section 4.2.7 Alarms, then a High Flow Alarm will occur.

  • Page 33: Troubleshooting And Help

    (dependent on ΔP alarm trigger type being high or low) then a Differential Pressure Alarm will occur. Sensor Acknowledge Error If any one of the sensors that are present in the MTSE loses communication with the host MCU, then a Sensor Acknowledge Error will occur. Analog Output Error If any of the four analog outputs are short circuited while set to voltage, open circuit while set to mA, or the circuit is overloaded, an Analog Output Error alarm will occur.
  • Page 34 DRAFT MTSE IO&M Manual ATTACHMENT A BACnet PROTOCOL IMPLEMENTATION CONFORMANCE STATEMENT Paragon Controls Inc, Rev J 2/3/2021...
  • Page 35 DRAFT MTSE IO&M Manual MTSE Unit BACnet Protocol Implementation Conformance Statement Rev 2 1/05/2021 BACnet Standardized Device Profile (Annex L): BACnet Application Specific Controller (B-ASC) BACnet Interoperability Building Blocks Supported (Annex K): DS-RP-B DS-RPM-B DS-WP-B DS-WPM-B DM-RD-B DM-DDB-B DM-DOB-B DM-DCC-B...
  • Page 36 DRAFT MTSE IO&M Manual • Object Name • DEVICE • Description Descri • Location ption • Object Identifier • • APDU Timeout Locati • Max Info Frames • Max Master Analog Input-1 System 1 Total Flow • Description REAL • Eng Units...
  • Page 37 DRAFT MTSE IO&M Manual Analog Value- Controller 4 Output • Description REAL Min = 0 • Eng Units Max = 100 Binary Input-1 Digital Input 1 • Description ENUMERATED Binary Input-2 Digital Input 2 • Description ENUMERATED Binary Value-1 System 1 Alarm Enable •...
  • Page 38 DRAFT MTSE IO&M Manual Multi State Sub System Status • Description UNSIGNED 1 = Normal Input-4 2 = Low Alarm 3 = High Alarm CharacterString System 1 Tag • Description STRING Value-1 CharacterString System 2 Tag • Description STRING Value-2...
  • Page 39 DRAFT MTSE IO&M Manual ATTACHMENT B MODBUS SOFTWARE CONFIGURATION PARAMETERS Paragon Controls Inc, Rev J 2/3/2021...
  • Page 40 DRAFT MTSE IO&M Manual MTSE MODBUS SOFTWARE CONFIGURATION PARAMETERS Rev 2 1/05/2021 Communication type: Serial Protocol: RTU - Slave Modbus ID: First device starts at 1 and increments up to 254 Baud Rate: 9.6K, 19.2k, 38.4K(Default), 57.6K & 115.2K Data bits: 8...
  • Page 41 DRAFT MTSE IO&M Manual Monitoring Variables Object Description Defaul Address Datatype Data Value Description System 1 Total Flow 999999 40301 *Note 1 System 2 Total Flow 999999 40303 *Note 1 System 3 Total Flow 999999 40305 *Note 1 SubSystem Flow...
  • Page 42 0 = Off, 1 = Low Trigger, 2 = Hi Trigger Note 1: K-Factor adjustment is done during system balancing to compensate for system effect in MTSE readings. Note 2: System Operating Range and maximum Operating Range are dependent on numerous, application specific parameters.
