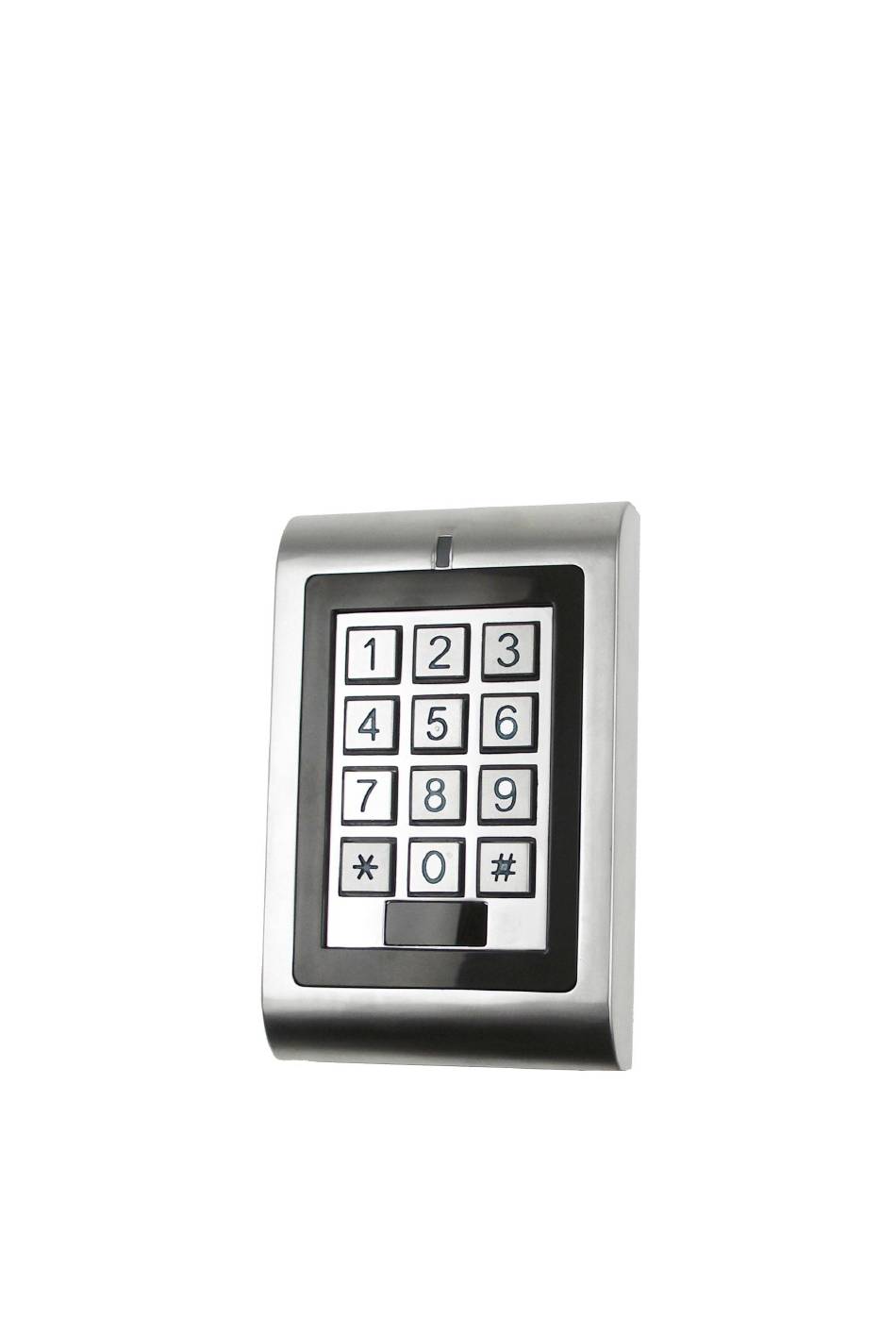

- Page 1 K401-IE Internal/External Stand-Alone Keypad & Proximity Card Reader User Manual...
-
Page 2: Specifications
The K401-IE has many extra features including block enrollment, anti-tamper alarm & backlit keypad buttons These features make the K401-IE an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories,... -
Page 3: Package Contents
Package contents K401-IE Keypad Diode IN4004 (For relay circuit protection) Self Tapping Screws Wall Anchors Screw Driver INSTALLATION Remove the back cover from the unit Drill 2 holes (A,C) on the wall for the screws and one hole for the cable ... -
Page 4: Connection Diagram Examples
Connection Diagram Examples Common power supply for magnetic lock (Fail open – power to lock) Common power supply for lock release (Fail secure – power to unlock) Common power supply for auto gate controller (using Normally Open contact) Attention: Install a 1N4004 or equivalent diode across the locking device when using a common power supply to prevent any back E.M.F as the reader might damage. -
Page 5: Function Description
Anti Tamper Alarm – Please the last page for this The K401-IE uses an LDR (light Dependent Resistor) as an anti tamper alarm. If the keypad facia is removed, or a sudden change in light source, the tamper alarm will bleep constantly PROGRAMMING Programming will vary depending on access confirguration. -
Page 6: Set Access Configuration
• Card Only: The User must present a valid Card to the K401-IE in order to be granted access • Card + PIN: The User must first present a valid Card to the K401-IE and then enter their PIN code followed... -
Page 7: General Programming Information
Programming 2 -------------------- Program Cards and PINS Programming will vary depending on the access configuration. Follow the instructions according to your access configuration GENERAL PROGRAMMING INFORMATION • User ID Number: Assign a user ID number to the access code in order to keep track of the users of access cards or PINS. - Page 8 Change a PIN This operation is executed from outside of Program Mode Programming Step Keystroke Combination ﹡(User ID#) (Old PIN #) (New PIN #) (New PIN #) 1. Change a PIN 2. Exit program mode ACCESS CONFIGURATION: CARD+PIN Add a Card+ PIN User Programming Step Keystroke Combination ﹡(Master Code) #...
-
Page 9: Reset To Factory Default
Others Reset to Factory Default: This will reset the K401-IE to factory default but all card/PIN information will still be retained 1. Power the K401-IE down 2. Press and hold the * button and power up the K401-IE 3. There will be two bleeps. Then release the * button, after a second there will be one more bleep to confirm... -
Page 10: Operation
K401-IE- Simplified Instruction Function Description Operation Enter the Programming Mode * (Master Code) # (6666 is the default factory master code) 0（New Master Code）#（Repeat New Master Code）# Change the Master Code (code: 4-6 digits) Add Card User 1 (Read Card) #... - Page 11 Anti Tamper Alarm The K401-IE’s alarm trigger is activated by an LDR (Light Dependant Resistor) which is located to the lower side of the unit as illustrated below using the K401-E The alarm function is designed as an ‘Anti-Theft’ facility. Forceful removal of the installed keypad or a sudden change in light source will trigger the keypad to bleep constantly.
