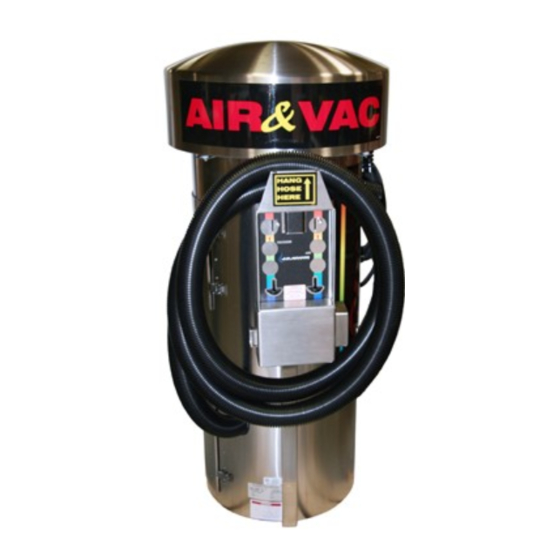

- Page 1 J.E. ADAMS INDUSTRIES OWNERS MANUAL MODEL 9420-1G-DIG – Digital Air / Vacuum o PAGE 2 SPECIFICATIONS o PAGE 2 IMPORTANT SAFETY INFORMATION o PAGE 3-4 INSTALLATION o PAGE 4–8 PROGRAMMING o PAGE 8 OPERATING o PAGE 9 MAINTENANCE o PAGE 9-10...
-
Page 2: Specifications
SPECIFICATIONS: Unit specifications: Voltage: 110v, 60Hz Amperage: (1) 20 amp service is required for this unit Weight: 240 lbs with pallet attached Vac specifications: Motors: (2) 110v motors Fuses: (2) 10 amp inline fuses Compressor specifications: Motor: (1) 3/4HP Twin Cylinder, 110V, 60HZ NOTE: “UNIT INTENDED FOR COMMERCIAL USE ONLY”... -
Page 3: Installation Instructions
SAVE THESE INSTRUCTIONS Installation Instructions: DANGER Determine location to mount unit THIS EQUIPMENT (“ ” “ INCORPORATES PARTS SUCH AS SWITCHES, MOTORS, OR THE LIKE THAT TEND TO PRODUCE ARCS OR SPARKS THAT CAN CAUSE AN EXPLOSION. WHEN LOCATED IN GASOLINE- DISPENSING AND SERVICE STATIONS INSTALL AND USE AT LEAST 20 FEET (6 M) HORIZONTALLY FROM THE EXTERIOR ENCLOSURE OF ANY DISPENSING PUMP AND AT LEAST 18... -
Page 4: Programming Instructions
Comes standard with manual Imonex coin mech. no programming needed. Bill acceptor: Bill acceptor comes pre programmed from J.E. Adams and should not require any changes. If additional programming is needed to acceptors please refer to additional literature sent along with this unit. - Page 5 Changing Settings: Quick Programming Method Digital control panel/timer unit: Unit may be programmed when received depending on information given at that the time of order. To program, follow the instructions below: 1. Turn unit off. 2. Hold coin switch lever in the down position. 3.
- Page 6 This unit has two counters: The first one is a non-resetable 8 digit number shown in two steps: CnH 0000 and the CnL 0000. When pay air mode the counter shows the number of coins put through the machine (not the number of vends). When free air mode the counter shows the number of vends.
- Page 7 “dE” is now shown on the display for a brief moment. At this step, set the default tire pressure, value which is factory set at 32 PSI. Use + or - buttons to set. Press “i” button to continue. “LS” is now shown on the display. This is typically set to 70 PSI which is the maximum pressure value.
-
Page 8: Maintenance
Most machines will not have a modem so choose "no." Press “i” button to continue 13. “End” is shown on the display This indicates the setup is finished. Turn tire gauge off, wait 10 seconds minimum before turning on. Next time the tire gauge is on, it will work with the new settings Operating Instructions: ... -
Page 9: Troubleshooting
Troubleshooting: DISCONNECT POWER BEFORE SERVICING!! Problem Possible cause Solution Unit is not powered. Fuse panel breaker may not be on. Turn on breaker. Switch inside unit is not in the on Turn switch on. position. Unit keeps blowing my Inadequate wire size ran to machine Call electrician and install proper breaker from my wire size for required service incoming power source... - Page 10 Vacuum seems to Vac hose clogged Cleanout debris from vac hose have lost suction Filter bags need cleaned Clean filter bags or replace Vac hose is split/cracked. Replace vac hose Cleanout door gaskets torn or Replace gaskets worn Plug(s) in bottom of can may have Replace with NEW plugs - came out.
