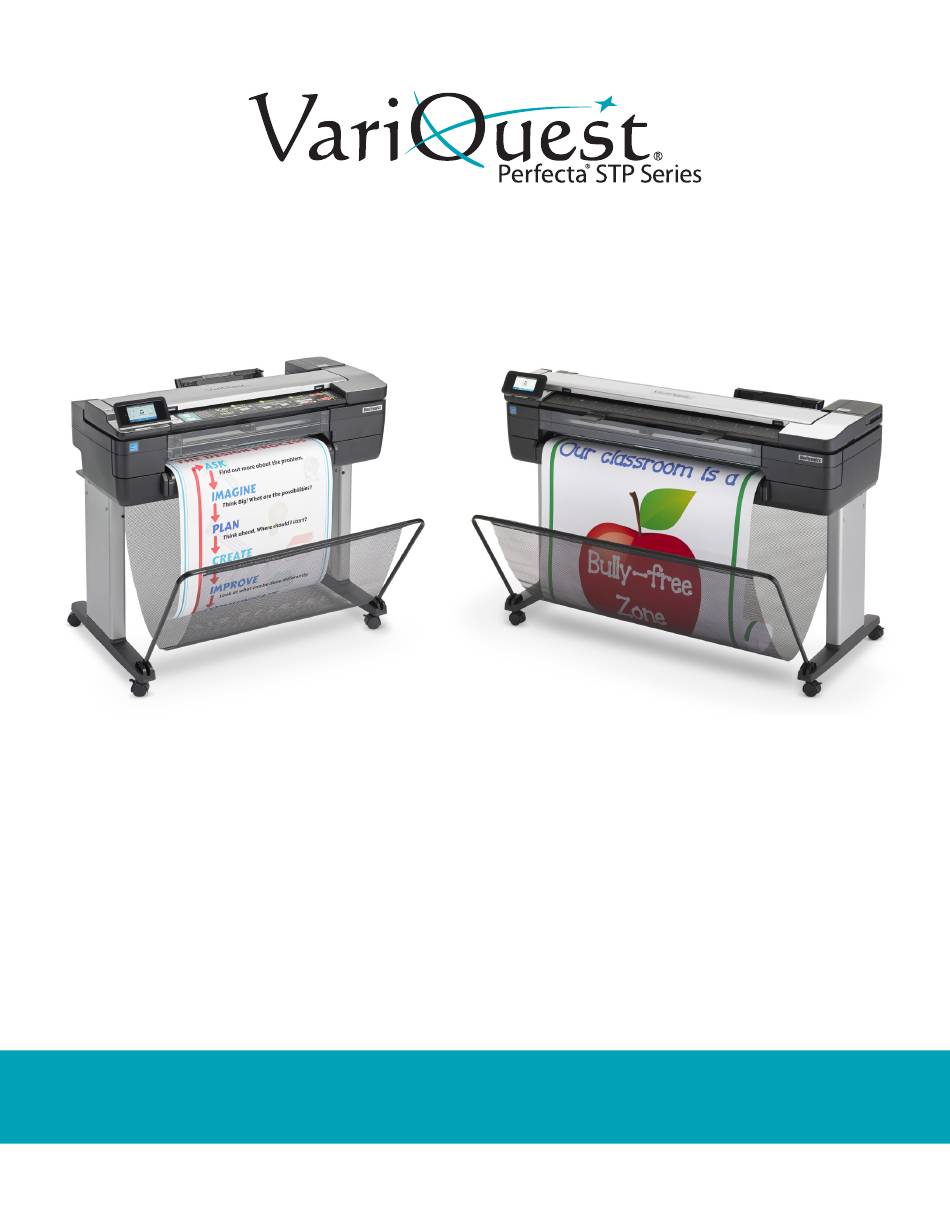

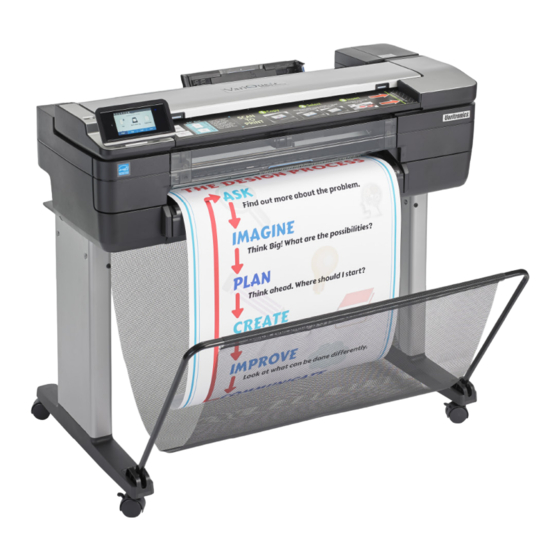

- Page 1 Perfecta 2400STP ® & Perfecta 3600STP ® Assembly Instructions...
-
Page 2: Package Contents
Package Contents Unpack Printer Stand The following items are included in the shipping container: 1. Cut the straps and open the box. Important To avoid scratches, install a blanket on the floor. 2. Remove the documentation and carton tray on top of the printer. 3. - Page 3 5. Fix into place with 2 screws. 9. Unfold the basket, move the fabric toward the center of the brace, and slot the brace into the top of the stand. 6. Take the other leg and turn it upside down. Insert the crossbar.
- Page 4 Remove Printer Packaging 12. Insert 2 black special screws and nuts into both sides of the leg (4 total), and tighten by hand. 16. Open the printer box. Note: 17. Remove the tapes from the film, then remove the If it is difficult to insert the screws; go back to the previous tray and box.
- Page 5 Attach Printer to Stand 22. The printer should appear as below. Important Make sure that the stand and printer are in the correct position for assembly. Install the Re-Feed Preventer 23. Locate the 2 re-feed preventer mounts on the scanner input platen on the front of the printer. 20.
- Page 6 26. Remove the desicant bag. 30. Close the printhead door. 27. Open the roll cover and remove the protective film. 31. Install the multi-sheet tray, that was previously unpacked, onto the back of the printer.. 28. Remove the 2 spindle retainers and tape. 32.
- Page 7 34. Once all protective foams are removed, 38. Select your language and confirm it, close all the covers that were opened. then select your country/region and also confirm it. 35. Connect the power cable to the printer, and the outlet. 39.
- Page 8 42. Once the 4 ink cartridges are installed, close the cover. 45. Extend the input and output trays. 43. Follow the front panel alignment instructions. 46. You will be asked to load an A4/Letter sheet into the multi-sheet tray; load sheet (1); adjust the tray (2); press OK.
-
Page 9: Load Paper Roll
Load Paper Roll Technical Support 48. Remove the blue end cap and load the paper roll onto the For technical assistance, please contact your authorized spindle. Be sure paper winds over (in front of) the roll and VariQuest dealer or the VariQuest Technical Support team: replace blue end cap making sure it is snug to the roll. - Page 10 Y2900958 01/21 ©2021 Varitronics, LLC. All rights reserved.
