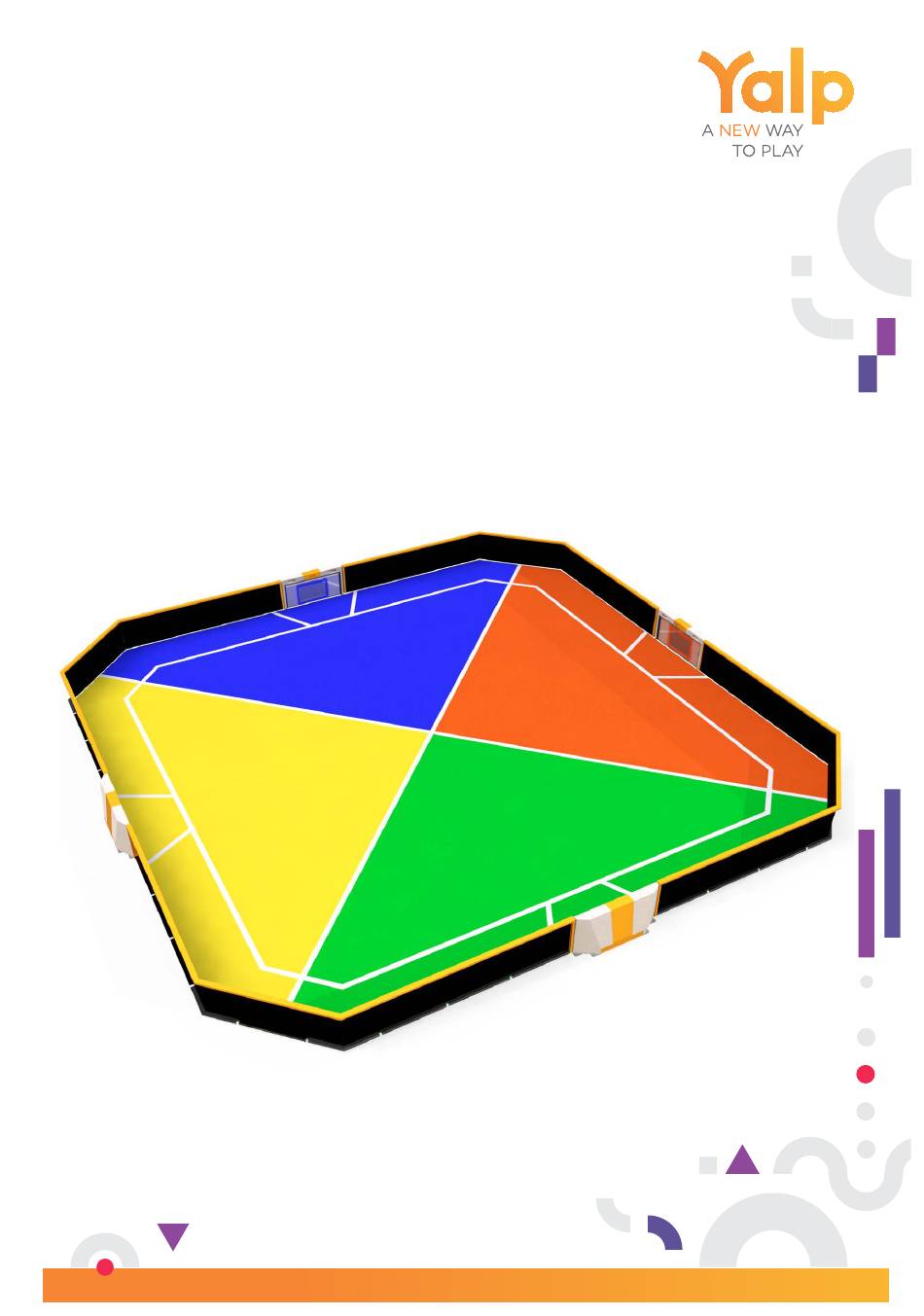

- Page 1 Toro produc t ma n ua l Version 1.2 16 December 2015...
-
Page 2: Table Of Contents
I ndex Page What is Toro? Installation Online settings Games Sound Language Manual settings Research movement intensity Warranty Technical information Versions Yalp sports- & play equipment T: 0031 547 289 410 E: info@yalp.nl EN_Product manual_Toro_v1.2 - 2 -... -
Page 3: What Is Toro

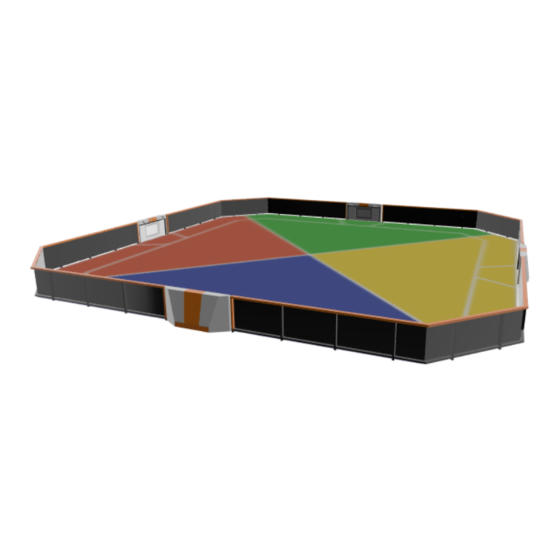

1 . Wha t is Toro? The Toro is an interactive sports field, with four interactive goals, one on each side of the square field. With the press of a button, different games can be selected. The games are designed to be fun in a challenging way, stimulating movement of the players. -
Page 4: Installation
This document describes what the Toro is, how it works, and what preparations should be made in order to make sure that the placement and connections go flawlessly. If you still have any questions after reading this document, you can always contact Yalp for more information. - Page 5 The Toro can be installed on mains power (230V AC). Every Toro comes with an adapter to connect the 230V to. It is important to use a double shielded power cable for safety reasons, and have this installed on a separate group. The type of power cable to use: Ymvk ground cable, 2 cores, 2,5mm².
-
Page 6: Online Settings
In ‘help’ you can find the product manual per product. INFO In ‘info’ you can change your account settings, contact us or log off. Homepage: click on ‘products’ and ‘my products’ to manage your products. Select Toro. EN_Product manual_Toro_v1.2 - 6 -... - Page 7 Statistics are shown per product. For each product you can look into the log. The log shows detailed back- ground information that may help with problem solving. EN_Product manual_Toro_v1.2 - 7 -...
- Page 8 In setup you can set the on/off time, the volume, the languages and select games. In info you can find the product information. EN_Product manual_Toro_v1.2 - 8 -...
-
Page 9: Games
With a push on the button, the next game is activated. After a minute of not playing, the Toro will turn into ‘idle-mode’ (standby). If the Toro feels impact on one of the panels, it will react by telling the user to push the button. - Page 10 Shifter In this game, four teams are playing and need to hit the goal of their colour. But after each goal, and after each 30 seconds, the goals change colour! Pay attention and seize the right moment to score. The team that scores three goals first will win. Switch Four teams with their own colour are playing, each has two points.
-
Page 11: Sound
If your Toro is equipped with multiple language versions, and more then one language is active, these can also be switched using the button on the Toro. Press the button for 3 seconds and the Toro will switch to another language. If no languages are selected, the Toro will switch to idle (‘standby’) mode when it is pressed for 5 seconds. -
Page 12: Manual Settings
Start with step 1 and follow instructions. 1. Access Manual Settings menu Disconnect power by pulling the plug Connect the power again Push the Toro button until you hear ‘Sutu Settings’. Release the button immediately at ‘Su...’ otherwise Toro will startup normal. 2. Volume settings You hear ‘Volume settings’, repeatedly... - Page 13 Status information The Toro has 6 different modes. You can recognize the different modes with the table below. Status information The Plaza has 6 different statuses which can be recognized on the basis of the following table. STATUS DESCRIPTION Indication...
-
Page 14: Research Movement Intensity
8. Research movement intensity 6. Research exercise intensity In June 2010 a research lasting eleven weeks for exercise- fun and intensity regarding the plaza was In June 2010 a research lasting eleven weeks for exercise- fun and intensity regarding the plaza was wrapped wrapped up, carried out by the Expertise Centrum Bewegingstechnologie (ECBT). -
Page 15: Warranty
Drop test according to NEN-EN 15312:2007 (Carried out by: TNO) During this test, a 50kg ball was dropped 1000 times from 35cm height onto a working Toro panel. As a comparison: This is comparable with a shot of approximately 140km/hr with a normal football. The weight was also dropped once from a height of 50cm, for an impact test. -
Page 16: Technical Information
Technical in formation General information ± 475 Kg (± 1047 lbs) Weight Toro: 1,65 x 0,3 x 0,8 m (L x B x H) (5,4 x 0,98 x 2,6 ft) Dimensions Electronics: 230 V Input 12 V DC/ 15 V DC... -
Page 17: Versions
1 1 . Versions Version/Date: Adjustments v1.2/16-12-2015 -Added my. y alp.nl EN_Product manual_Toro_v1.2 - 17 -...
