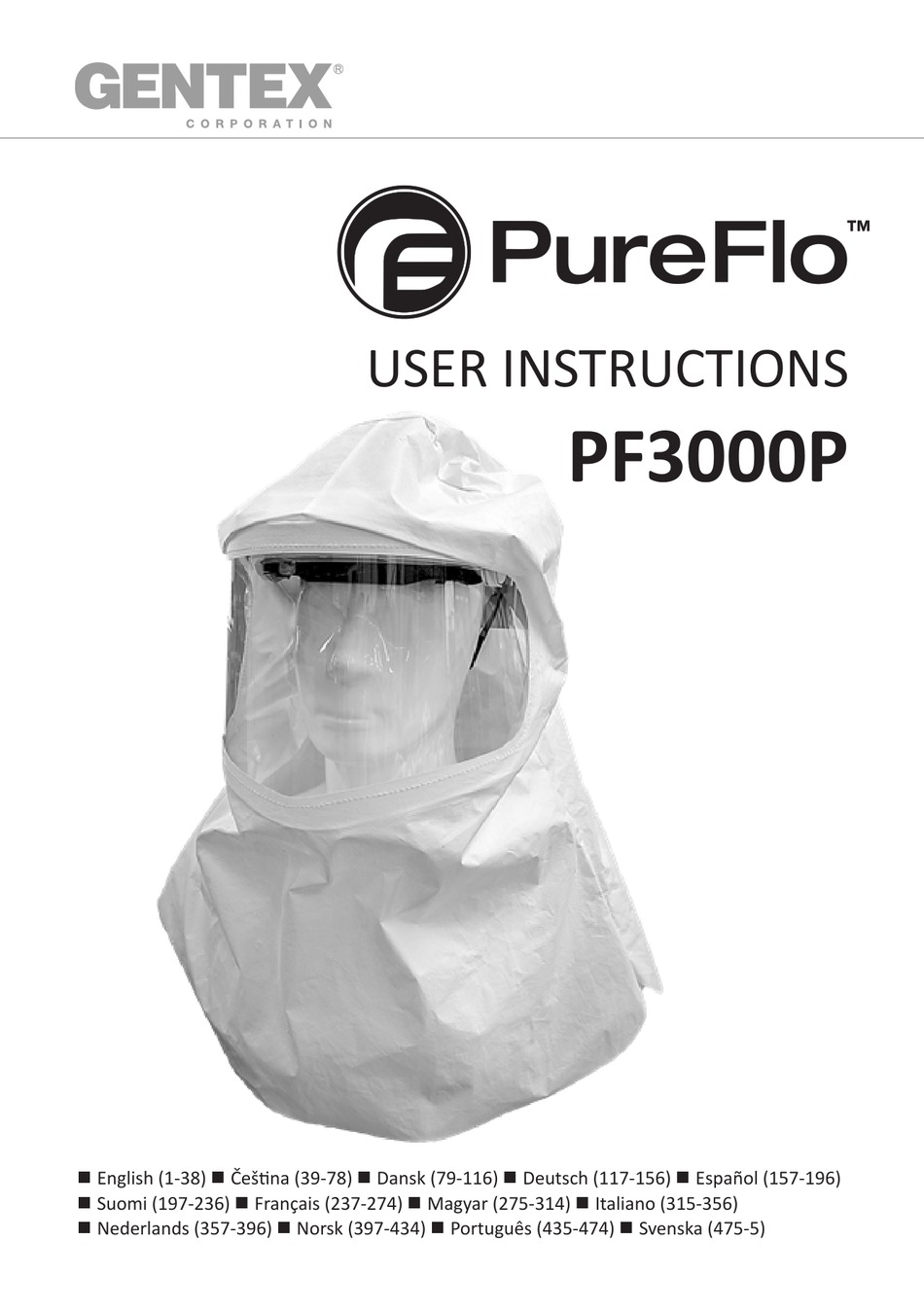

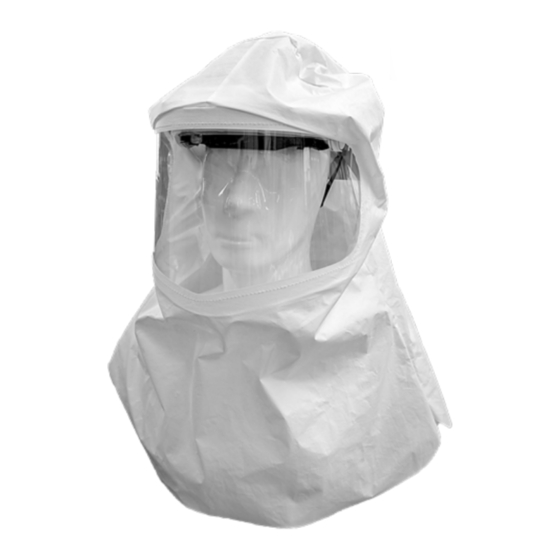

- Page 1 USER INSTRUCTIONS PF3000P English (1-38) Čeština (39-78) Dansk (79-116) Deutsch (117-156) Español (157-196) Suomi (197-236) Français (237-274) Magyar (275-314) Italiano (315-356) Nederlands (357-396) Norsk (397-434) Português (435-474) Svenska (475-5)
- Page 2 USER INSTRUCTIONS PF3000P Document ref. number PF3000-03-035 Issue 01:00...
- Page 3 PF3000P GENTEX Europe Commerce Road, Stranraer, DG9 7DX. Scotland Tel: +44 (0) 1776 704421 Fax: +44 (0) 1776 706342 Email: sales@gentexcorp.eu.com Web: www.pureflo.gentexcorp.com Declaration of Conformity available at: https://shop.gentexcorp.com/content/DoC-PF3000P.pdf USER INSTRUCTIONS...
-
Page 4: Table Of Contents
PF3000P Contents USER INSTRUCTIONS ....................... 5 CAUTIONS ........................5 WARNINGS ........................5 PUREFLO 3000P ......................7 GENERAL DESCRIPTION ....................8 APPROVAL FOR USE ......................9 Special conditions for safe use ................... 9 SUITABILITY FOR USE ....................10 TRANSPORTATION ......................10 PREPARATION FOR USE .................... - Page 5 PF3000P High efficiency particulate air filter replacement ............ 30 DISPOSAL ........................32 Disposal of respirator ....................32 Disposal of rechargeable battery ................32 Disposal of contaminated filter ................32 TROUBLESHOOTING ..................... 33 STORAGE (excluding battery) ..................33 TECHNICAL SPECIFICATION ................... 34 Environmental range (storage and use, excluding battery) ........
-
Page 6: User Instructions
PF3000P USER INSTRUCTIONS Please read these instructions and then store them in a safe place for future reference. The respirator must be fitted and used in accordance with these instructions to obtain the approved level of performance. CAUTIONS • For adequate protection this respirator must fit or be adjusted to the size of the user’s head. - Page 7 PF3000P • DO NOT HOLD OR SUSPEND THE RESPIRATOR BY THE HEADBAND OR FACE SEAL. • DO NOT WEAR THE RESPIRATOR IF THE AIR FLOW IS SWITCHED OFF. • AT VERY HIGH WORK RATES THE PRESSURE IN THE DEVICE MAY BECOME NEGATIVE AT PEAK INHALATION FLOW.
-
Page 8: Pureflo 3000P
PF3000P PUREFLO 3000P Open frame without eye protection. PUREFLO 3000P... -
Page 9: General Description
PF3000P GENERAL DESCRIPTION The respirator must be fitted and used in accordance with these instructions to obtain the approved level of performance. APPROVED PUREFLO® 3000 PARTS MUST BE USED. The PureFlo®3000 respirator box contains the following items: Item Description Part Number Powered Air Respirator module (TH3P)*. -
Page 10: Approval For Use
PF3000P APPROVAL FOR USE This product has been shown to meet the requirements of Annex V of the Personal Protective Equipment Regulation (EU) 2016/425 and is manufactured in accordance with Annex VIII Module D, and thus is CE marked. Annex V and VIII assessments conducted by BSI Netherlands. (Notified Body Number: 2797) Product assessed against the requirements of the following standards: Respiratory Protection... -
Page 11: Suitability For Use
PF3000P SUITABILITY FOR USE This respirator must be used strictly in accordance with these instructions. When using the approved PureFlo® filter, the workplace concentrations of the vapour must not exceed the O.E.L. (Occupational Exposure Limit). Intended for use against dusts, mists and aerosols. Available air filtration options: - Pre-filter PF3000-04-005 - Odour pre-filter PF3000-04-004... -
Page 12: Preparation For Use
PF3000P PREPARATION FOR USE The following tasks must be performed prior to use: Battery charging Only charge the battery in a safe area free from sources of flame and sparks, temperature between +5°C and +40°C. NOTE: Do not use mains supply and 12V supply at the same time. If using mains electricity to charge the battery, use the appropriate power cable relating to country of use. - Page 13 PF3000P Insert the battery as shown in Figure 2. Ensure the battery fully ‘clicks’ into position. For more information check ‘TROUBLESHOOTING’ section on page 33. NOTE: It is normal for the battery and charger to get warm during use. Figure 2 Observe the status indicator LEDs.
-
Page 14: Battery Charger Advisory Symbols' Legend
PF3000P When to recharge Do not force the PAPR/Unit to restart after auto-shut down following a low battery alarm. Doing so may ‘deep discharge’ the battery, which will permanently reduce available capacity. Recharging a battery at the end of each day’s use, even if the battery is not fully discharged, will help prolong the life of the battery. -
Page 15: Battery Installation And Removal
PF3000P Battery installation and removal Remove battery by pushing lightly on the release area indicated. (Figure 4) Figure 4 Observing the orientation as shown in Figure 5 install a fully charged battery into the respirator until the battery fully clicks into position. Figure 5 PREPARATION FOR USE... -
Page 16: Hepa Filter Fitting And Checking The Respirator
PF3000P HEPA filter fitting and checking the respirator Ensure that the high efficiency particulate (HEPA) filter is installed correctly as shown in Figure 6 When fitting the filter element into the filter housing, observe that the filter label faces upwards as worn. Then applying firm pressure, click to engage the filter housing with the two filter latches. - Page 17 PF3000P Correct positions of filters: 1. Housing 2. Odour / Pre-filter 3. HEPA filter Figure 8 Check that the air inlet is clean and free from any obstructions. (Figure 9) Figure 9 Activate the respirator with the on/off switch as shown in Figure 10, noting the LED display.
-
Page 18: Low Airflow Indicator Check
PF3000P If the respirator is working correctly, status indicator LED (Figure 11(1)) will illuminate green. The respirator is then ready to use. If status indicator LED is RED proceed to ‘Troubleshooting’ section on page 33. Figure 11 Low airflow indicator check Before using the respirator perform a low airflow indicator check: 1. -
Page 19: Wearing And Using
PF3000P WEARING AND USING Fitting the respirator To achieve an optimal level of respirator performance, follow the fitting instructions below. CROWN STRAP ADJUSTMENT Before first use, adjust the crown height by adjusting the crown strap following Figure 12 - Figure 15. Release the headband mounts from the 4 attachment posts in the respirator frame (Figure 12) - Page 20 PF3000P Unfasten and remove the crown pad to access the adjustment straps. (Figure 14) Figure 14 Adjust the length of the strap as required ensuring that the four locations pegs are within the highlighted EN397 range of adjustment (Figure 15). This position will ensure correct head ventilation for the product.
-
Page 21: Quick Release Headband Adjustment
PF3000P QUICK RELEASE HEADBAND ADJUSTMENT For comfort and security, the quick release headband must be adjusted each time prior to entering the work environment. (Figure 16) Modify the headband size using the headband adjuster: • To tighten - rotate the adjuster clockwise. -
Page 22: Activating Respirator
PF3000P Activating respirator Switch the respirator on using the on/off switch. (Figure 18) Figure 18 WARNING: DO NOT USE THE RESPIRATOR if LED status indicator illuminates RED. Refer to ‘Troubleshooting’ section on page 33. Status indicator (LED) (All filter types) When LED (Figure 19) illuminates green it indicates that respirator is in a useable condition. -
Page 23: Removing The Respirator
PF3000P The following indications are given when switching on the respirator: LED light Condition Green Starting sequence – investigation required. Respirator is NOT USABLE. Respirator is in a useable condition Table 5 The following warnings may be given during operation: LED light Condition Green... -
Page 24: Servicing
PF3000P If special decontamination procedures are required, take appropriate precautions and place the respirator in a suitable sealed container. Otherwise clean the respirator as indicated on page 23 after every use. SERVICING Cleaning Remove respirator from user’s head before cleaning. WARNING: Never use pressurised air on any part of the respirator. - Page 25 PF3000P Air outlet cleaning plug. Figure 20 Air inlet cleaning plug. Figure 21 Battery cavity cleaning plug. Figure 22 SERVICING...
-
Page 26: Annual Servicing
PF3000P Annual Servicing Please note that all PureFlo® respirators should be serviced annually. For further details on your nearest PureFlo® authorised servicing centre details, visit our website http://www.pureflo.gentexcorp.com. NOTE: Repair is only by replacement of defective parts in accordance with manufacturer instruction. - Page 27 PF3000P Fit the elasticated hood opening to the airflow adaptor. (Figure 25) Figure 25 Secure hood to front of the respirator using press fasteners. (Figure 26) Don respirator with the hood fitted. Hoods should be stored out of direct sunlight. Figure 26 SERVICING...
-
Page 28: Replacing The Comfort Pads
PF3000P Replacing the comfort pads Brow pad Remove brow comfort pad by pulling away from the `hook and loop` retaining strip. Place the new brow pad onto the `hook and loop` strip. Ensure the brow pad is placed centrally to the front of the headband so that it sits equally left and right to the user’s head. -
Page 29: Brow Infill Removal And Installation
PF3000P Brow infill removal and installation The infill is positioned at the front of the respirator between the headband and the frame with the concussion straps (if fitted) located inside, relative to the infill. Remove the brow infill by turning respirator upside down to gain access to the headband. - Page 30 PF3000P Remove adhesive tape backing strip then place the infill inside the respirator frame and position under the headband and, if fitted, above the concussion straps. (Figure 29) Figure 29 Push the infill in between the headband and the frame ensuring the infill is pushed up to the edge of the headband and it sits onto the frame.
-
Page 31: High Efficiency Particulate Air Filter Replacement
PF3000P High efficiency particulate air filter replacement When the status indicator LED illuminates RED, further investigation is required regarding condition of a filter and a battery. If no fault on battery has been found, the high efficiency particulate (HEPA) filter must be replaced. Install a new HEPA filter as shown in Figure 31-Figure 35 and Figure 6-Figure 7on page 15. - Page 32 PF3000P NOTE: Do not allow any dirt or elements, which may obstruct the air flow to enter the air inlet. (Figure 34) Figure 34 Make sure that the HEPA filter is fitted correctly into a filter cover housing with filter label facing upwards as fitted to the respirator.
-
Page 33: Disposal
PF3000P DISPOSAL Disposal of respirator This product should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it may be accepted free of charge. Alternatively, in some countries you may be able to return your products to your local retailer upon purchase of an equivalent new product. -
Page 34: Troubleshooting
PF3000P TROUBLESHOOTING Problem Possible Reasons Corrective actions LED is RED when switched Low battery Remove battery and charge Air flow too low Remove HEPA filter and replace LED does not illuminate Battery is drained Remove battery and when switched on charge Respirator is faulty Return to service centre... -
Page 35: Technical Specification
PF3000P TECHNICAL SPECIFICATION Weight Nominal 1.5kg Weight may increase with certain accessories fitted. Head Size Range 53.5 cm – 63.5 cm Airflow Initial flowrate: >220 l/min Minimum flowrate: 190 l/min Environmental range (storage and use, excluding battery) Humidity 0-90% for storage and use (Store out of direct sunlight.) Temperature Range Use +5°C to +40°C Storage -20°C to +50°C... -
Page 36: Battery Charger
PureFlo® DECONTAMINATION RETURN PROCEDURE WARNING: Never use pressurised air on any part of the respirator. Please contact Customer Services to confirm decontamination and return procedures. SALES & CUSTOMER SERVICE Gentex Europe 3 Commerce Rd Stranraer DG9 7DX Scotland Tel: +44 (0)1776 704421... -
Page 37: Spare Parts
PF3000P SPARE PARTS Part Number Description Type Battery Spare PF3000-03-003 Battery charger (unit only) Spare PF3000-03-004 AC power cable (EU) Spare PF3000-03-008 AC power cable (UK) Spare PF3000-03-009 AC power cable (AUS) Spare PF3000-03-010 Battery charger kit (UK) Spare PF3000-03-048 Battery charger kit (EU) Spare PF3000-03-049... -
Page 38: Accessories
PF3000P ACCESSORIES Description Type Part Number Odour pre-filter Accessory PF3000-04-004 Pre-filter Accessory PF3000-04-005 Tear-off visor protective film x 10 Accessory PF3000-04-009 Disposable wipes PUREWIPE Accessory PR01110SP Ear defender infills Accessory PF3000-04-017 Ear defenders SNR 30 Accessory PF3000-04-001 12V power cable Accessory PF3000-04-008 COSHH data sheet for rechargeable battery... - Page 39 PF3000P ACCESSORIES...
- Page 40 SALES & CUSTOMER SERVICE GENTEX Europe 3 Commerce Rd Stranraer DG9 7DX Scotland Tel: +44 (0) 1776 704421 Fax: +44 (0) 1776 706342 Email: sales@gentexcorp.eu.com www.pureflo.gentexcorp.com Document ref. No: PF3000-03-035...
