USER MANUAL

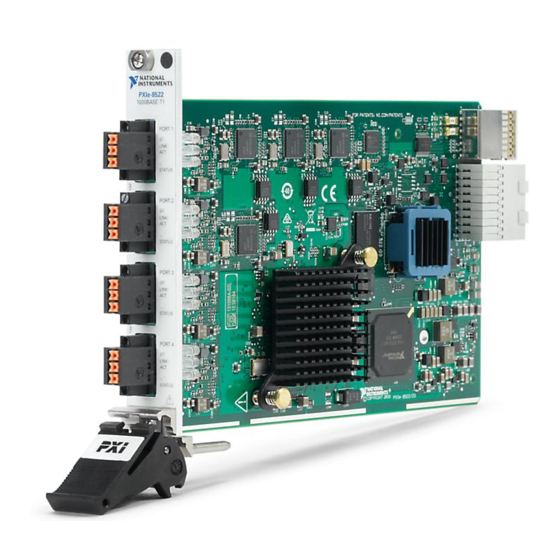

PXIe-8522/8523
4-port, 1000BASE-T1 and 100/1000BASE-T1 PXI Automotive
Ethernet Interface Modules
This document explains how to install and configure the PXIe-8522 and PXIe-8523
Automotive Ethernet interface modules.
Contents
Introduction............................................................................................................................... 1
Getting Started.......................................................................................................................... 2
Installing the Module........................................................................................................ 2
Configuring the Module in MAX..................................................................................... 3
Connection Guidelines...................................................................................................... 4
Pinouts.......................................................................................................................................5
PXIe-8522 Pinout..............................................................................................................5
PXIe-8523 Pinout..............................................................................................................6
Port Modes................................................................................................................................ 6
Data Path Overview.......................................................................................................... 7
Direct Mode...................................................................................................................... 8
Tap Mode.......................................................................................................................... 9
PHY State................................................................................................................................10
Link Speed...............................................................................................................................11
Programming the Module........................................................................................................11
LED Functionality...................................................................................................................11
Synchronization Methods....................................................................................................... 12
Local Time...................................................................................................................... 12
Network Time................................................................................................................. 13
Host Time........................................................................................................................13
PXI Triggers....................................................................................................................13
Introduction
The PXIe-8522 and PXIe-8523 modules are 4-port, unshielded twisted pair (UTP) Automotive
Ethernet interfaces for developing applications with the NI-XNET driver. These modules are
ideal for developing applications that require Automotive Ethernet to test and validate
automotive electronic control units (ECUs).
The PXIe-8522 module is fixed at 1000BASE-T1. The PXIe-8523 module is configurable
between 100BASE-T1 and 1000BASE-T1.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for National Instruments PXIe-8522
Summary of Contents for National Instruments PXIe-8522
-
Page 1: Table Of Contents
USER MANUAL PXIe-8522/8523 4-port, 1000BASE-T1 and 100/1000BASE-T1 PXI Automotive Ethernet Interface Modules This document explains how to install and configure the PXIe-8522 and PXIe-8523 Automotive Ethernet interface modules. Contents Introduction..........................1 Getting Started.......................... 2 Installing the Module......................2 Configuring the Module in MAX..................3 Connection Guidelines...................... -
Page 2: Getting Started
26 AWG x 8 mm insulated ferrules, x 20 • Screw driver for use with connector spring terminal push buttons • PXIe-8522 Safety, Environmental, and Regulatory Information or PXIe-8523 Safety, Environmental, and Regulatory Information Note This device ships with a plug connector pre-installed on each port. -
Page 3: Configuring The Module In Max
Expand your module to see the list of ports. Record the NI-XNET interface name that MAX assigns to each port of the hardware. Use this name when programming the module. PXIe-8522/8523 User Manual | © National Instruments | 3... -
Page 4: Connection Guidelines
Note A ferrule crimping tool is not included with this product. Tighten the connector screw flanges to the torque specification in the PXIe-8522 Specifications or PXIe-8523 Specifications for the best shock and vibration performance. The connector screw flanges ship in a non-torqued configuration for easy removal. -
Page 5: Pinouts
STATUS Table 1. PXIe-8522 Pinout Signal Descriptions Pin Number Signal Type Signal Direction Signal Description Signal Required TRX_P Bi-directional Transceiver plus Required TRX_M Bi-directional Transceiver minus Required Shield — Shield Optional PXIe-8522/8523 User Manual | © National Instruments | 5... -
Page 6: Pxie-8523 Pinout
The module includes four ports that can be configured as independent network interfaces. The ports can function in Direct mode or Tap mode. Regardless of mode, traffic on each port can be monitored. When monitoring is enabled, all traffic that is transmitted or received on that 6 | ni.com | PXIe-8522/8523 User Manual... -
Page 7: Data Path Overview
AVB endpoint. The OS stack path transmits and receives data using standard network sockets via the operating system's network stack. The OS stack is typically used with applications designed to use traditional TCP- or UDP-based protocols for its network communication. PXIe-8522/8523 User Manual | © National Instruments | 7... -
Page 8: Direct Mode
This helps guarantee a high degree of synchronization accuracy for each port's network time. Note The PXIe-8522 and PXIe-8523 modules only support jumbo frames at 1000BASE-T1. Refer to the Link Speed section for more information. -
Page 9: Tap Mode
In Tap mode, a pair of adjacent ports on the device, called tap partners, are connected to form a Tap that allows the module to monitor traffic. In Tap mode, physical Port 1 and Port 2 are Tap PXIe-8522/8523 User Manual | © National Instruments | 9... -
Page 10: Phy State
Tap partner, which mimics the behavior of an Ethernet cable. Note For more information about Tap latency, refer to the PXIe-8522 Specifications or PXIe-8523 Specifications. When an input session is created using an XNET interface for either Tap partner, and the "/ monitor"... -
Page 11: Link Speed
Link Speed Note The interfaces on the PXIe-8522 module are fixed at 1000 Mb/s (1000BASE-T1). You can configure the PXIe-8523 module ports to either 100 Mb/s (100BASE-T1) or 1000 Mb/s (1000BASE-T1). Configure the link speed to match the connected link partner. -
Page 12: Synchronization Methods
When in Tap Mode, ports that are paired fade in phase with each other, but out of phase with other ports. In the case of a catastrophic error, recover by invoking Reset on the module in MAX. Contact NI for further support if the error continues to occur. 12 | ni.com | PXIe-8522/8523 User Manual... -
Page 13: Network Time
Each of the eight PXI triggers on the module can be simultaneously timestamped by the local time keeper and the network time keeper for each port. PXI triggers can be used to synchronize the module time keepers with trigger events on other PXI modules. PXIe-8522/8523 User Manual | © National Instruments | 13... - Page 14 NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at . You can find patents.txt ni.com/patents...
