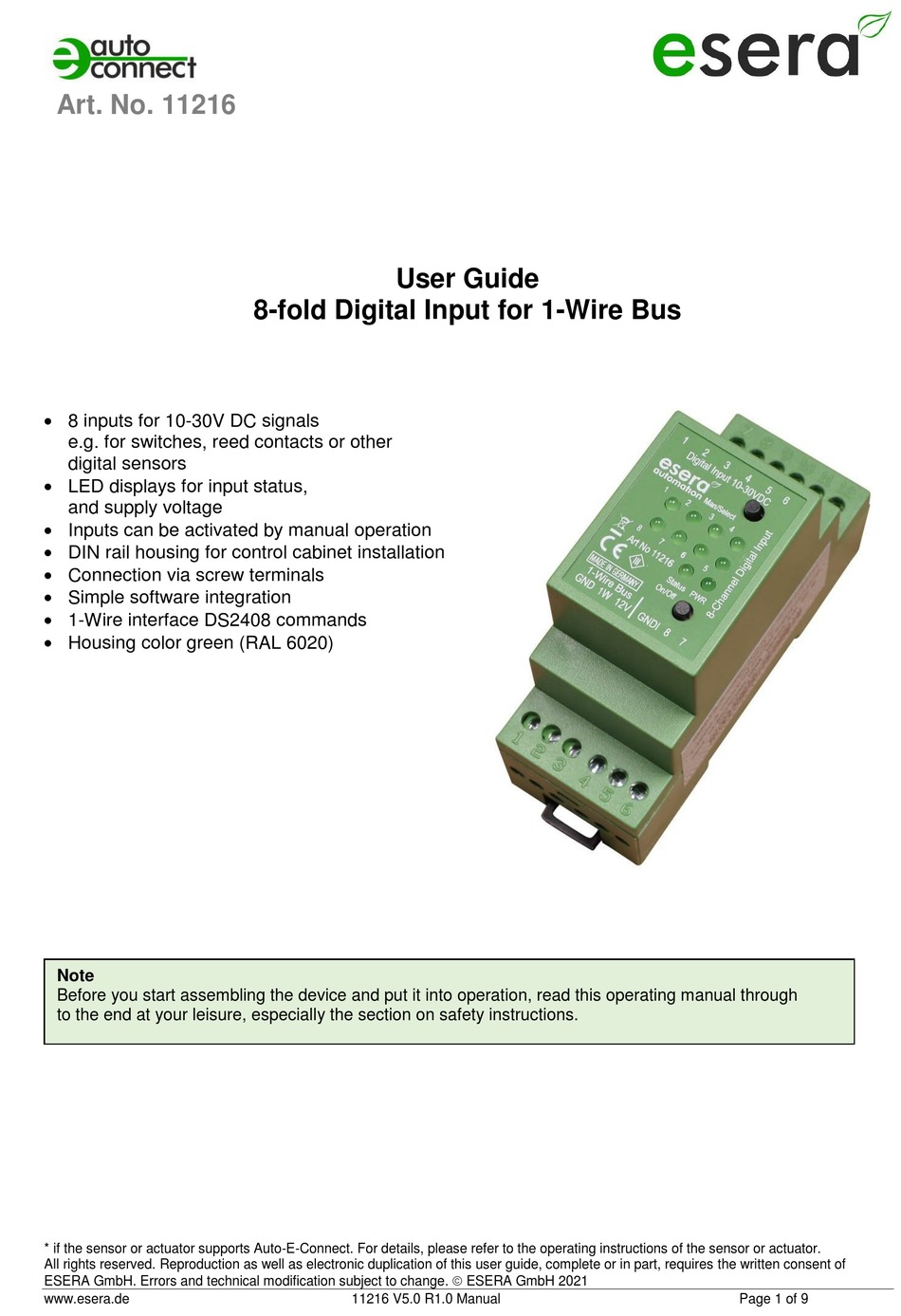

esera automation 11216 User Manual

Art. No. 11216
 8 inputs for 10-30V DC signals
e.g. for switches, reed contacts or other
digital sensors
 LED displays for input status,
and supply voltage
 Inputs can be activated by manual operation
 DIN rail housing for control cabinet installation
 Connection via screw terminals
 Simple software integration
 1-Wire interface DS2408 commands
 Housing color green (RAL 6020)
Note
Before you start assembling the device and put it into operation, read this operating manual through
to the end at your leisure, especially the section on safety instructions.
* if the sensor or actuator supports Auto-E-Connect. For details, please refer to the operating instructions of the sensor or actuator.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH 2021
www.esera.de
User Guide
8-fold Digital Input for 1-Wire Bus
11216 V5.0 R1.0 Manual Page 1 of 9
