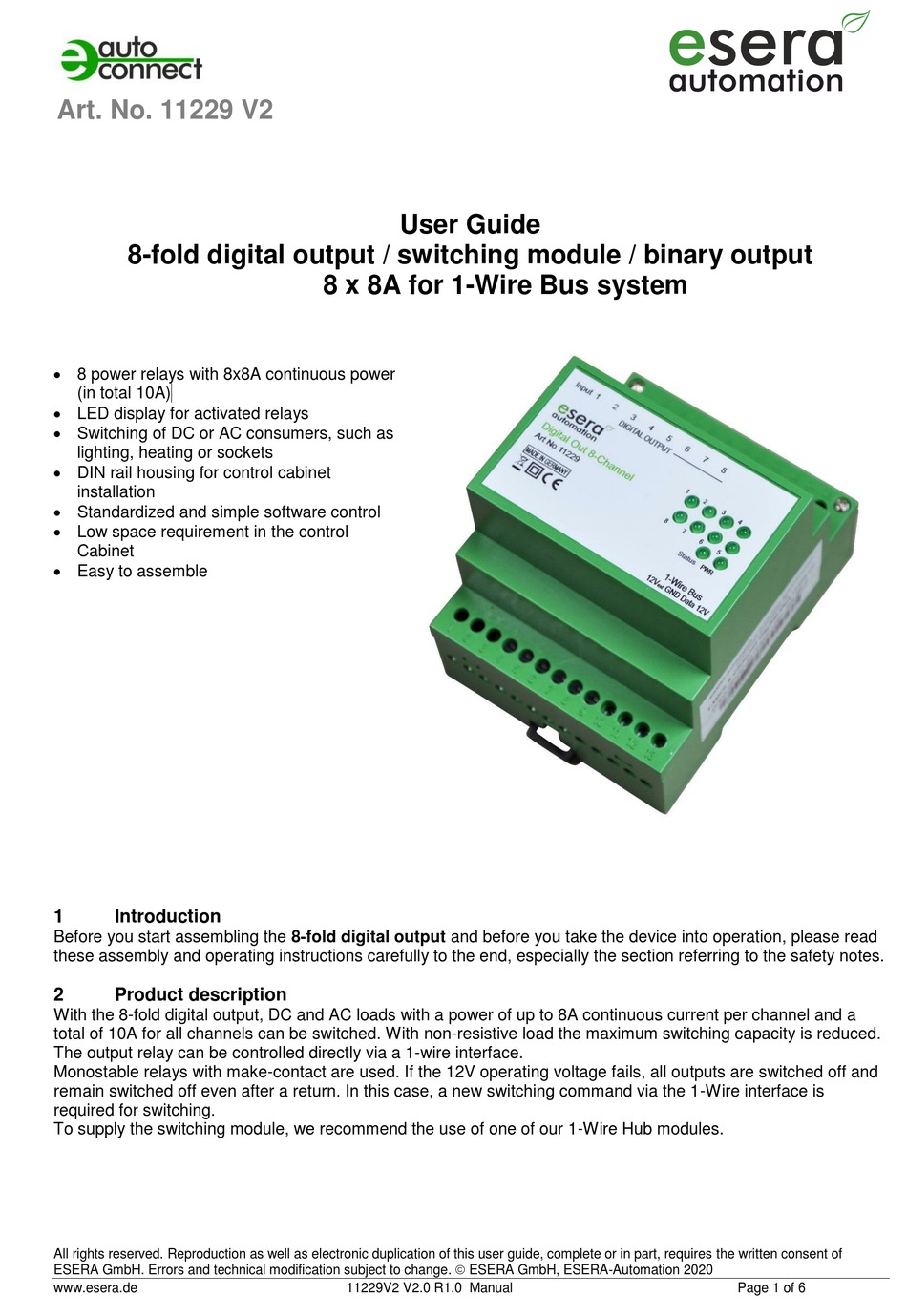

esera automation 11229 V2 User Manual

Art. No. 11229 V2

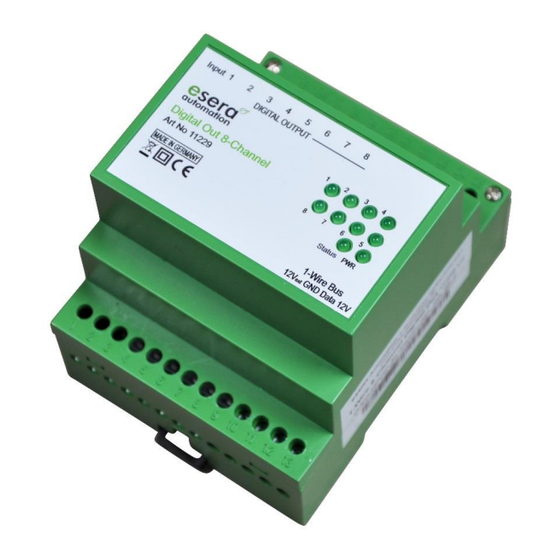

8-fold digital output / switching module / binary output
 8 power relays with 8x8A continuous power
(in total 10A)
)
 LED display for activated relays
 Switching of DC or AC consumers, such as
lighting, heating or sockets
 DIN rail housing for control cabinet
installation
 Standardized and simple software control
 Low space requirement in the control
Cabinet
 Easy to assemble
1

Introduction

Before you start assembling the 8-fold digital output and before you take the device into operation, please read
these assembly and operating instructions carefully to the end, especially the section referring to the safety notes.
2

Product description

With the 8-fold digital output, DC and AC loads with a power of up to 8A continuous current per channel and a
total of 10A for all channels can be switched. With non-resistive load the maximum switching capacity is reduced.
The output relay can be controlled directly via a 1-wire interface.
Monostable relays with make-contact are used. If the 12V operating voltage fails, all outputs are switched off and
remain switched off even after a return. In this case, a new switching command via the 1-Wire interface is
required for switching.
To supply the switching module, we recommend the use of one of our 1-Wire Hub modules.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH, ESERA-Automation 2020
www.esera.de
User Guide
8 x 8A for 1-Wire Bus system
11229V2 V2.0 R1.0 Manual Page 1 of 6
