Keypad

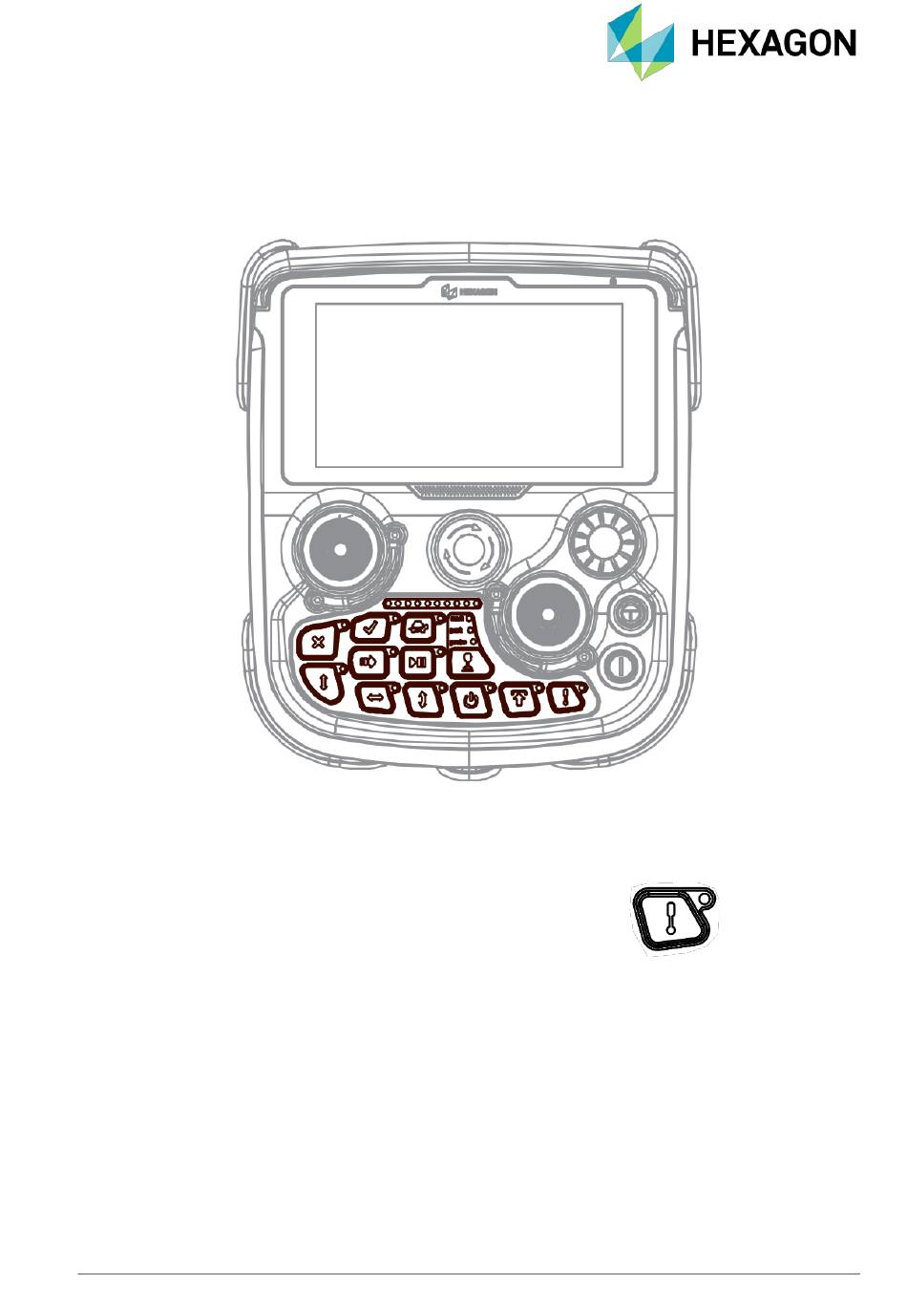

The JOGBOX keypad contains controls for operating the machine. The symbols in the following list of
functions refer to the symbols on the Keypad diagram. The functions of these buttons are:
PROBE ENABLE:
This informs the operator of one of the following three conditions:
NOT ILLUMINATED - The probe is enabled, but the controller
will not report hits. Note: Since all probe signals are ignored by
the controller, the machine will not stop moving after the probe
has registered a hit.
Attempting to take points while this condition exists may
result in damage to probe.
ILLUMINATED - The probe is enabled and the host computer is
ready to accept a point location.
FLASHING - This temporarily disables probe. This feature is
useful when manually aligning a part to a machine axis or when
cleaning a probe tip. Hits taken will not be recorded. Re-enabling
the probe changes the indicator light from flashing to illuminated.
