Summary of Contents for Hexagon JOGBOX

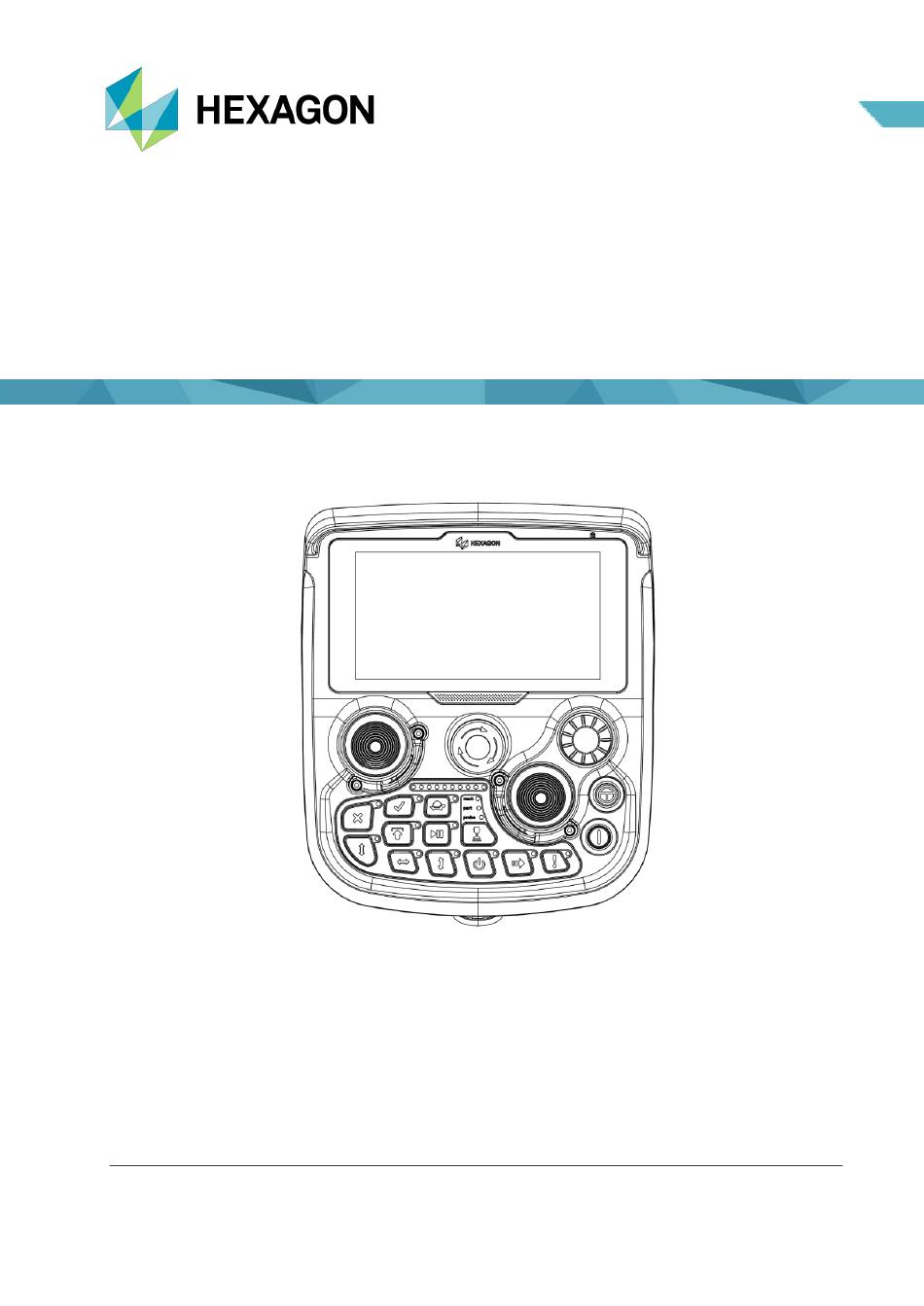

- Page 1 CMM ACCESSORIES dCC (DIGITAL CONTROL CENTER) JOGBOX – CORDLESS AND TETHERED VERSIONS USER MANUAL H00017135 Rev01...
- Page 2 All rights reserved. Hexagon Manufacturing Intelligence is part of Hexagon. Other brands and product names are trademarks of their respective owners. Hexagon Manufacturing Intelligence believes the information in this publication is accurate as of its publication date. Such information is subject to change without notice What is documented in this manual is a product of Hexagon Metrology, Inc.
-
Page 3: Table Of Contents
Contents Contents ..........................iii Preface ..........................5 Documentation Provided with the Jogbox ..................6 User Manual......................... 6 Conventions ............................. 6 Safety Information ......................7 EMERGENCY STOP ....................7 2.5. Warnings ........................... 8 2.6. Safety Devices .......................... 9 Overview..........................10 Dimensions ............................. 12 Operation ............................ -
Page 5: Preface
This document is a supplement to the operating manual of the CMM. Only after you have read and understood both will you be able to operate the CMM safely with the Jogbox. Which functions you can run from the Jogbox depends on which CMM is connected to it. Therefore, you will find the machine-specific functions in the operating manual of the CMM that is connected to the Jogbox. -
Page 6: Documentation Provided With The Jogbox
Documentation Provided with the Jogbox The information provided with the Jogbox offers a wide range of solutions for getting to know and using its functions. The Jogbox comes with a USB key containing the following documentation. User Manual Contains essential information on how to use the Jogbox safely and efficiently. The manual includes a detailed description of the Jogbox, the instructions for use, and the routine maintenance procedures recommended by Hexagon. -
Page 7: Safety Information
In case of conflict with said directives, please contact Hexagon. Purpose-conformant use The jogbox is available as a tethered or wireless version. In any event, the wireless version shall be able to be operated in a tethered configuration (Cable will supply power only). The wireless communications between the jogbox and the PC as well as the wireless communications between the jogbox and the controller shall be encrypted to avoid hacking or monitoring of signals. -
Page 8: 2.5. Warnings
Make sure to use exclusively fuses of the specified type and nominal current. Danger Basically, all international and national safety standards have to be observed. Repair operations are to be carried out by authorized personnel of Hexagon Metrology GmbH only. The warranty expires in the event of unauthorized tampering with the System. -
Page 9: 2.6. Safety Devices
2.6. Safety Devices Danger The system is equipped with specific safety devices for operator protection. These devices should never be put out of use, not even partially. Any infraction can lead to physical injuries! All safety devices have to be checked regularly for correct operation. Possible malfunctions have to be reported immediately to our local subsidiary. -
Page 10: Overview
Overview JogBox tethered and JogBox wireless with Base station The JogBox is a wireless interaction platform for all Hexagon CMM’s. It improves user experience, provides advanced functionality and allows for future enhancement, customization, and integration with the HMI Ecosystem. •... - Page 11 ENABLE ENABLE Figure 2 - The Jogbox - Rear Radio Base Station : Connects to the controller and allows the jogbox to communicate with the controller. Optional: Magnetic attachment pads Status pad Status pad 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 • 11...
-
Page 12: Dimensions
Compact housing design featuring a 5.7” touch panel. Jogbox Weight: Wireless 1.55 kg (3.42 lb) Tethered 1.40 kg (3.09 lb) Power Requirements Software requirements Windows 10 BATTERY Lithium rechargeable BATTERY LIFE 8 HOUR 12 • dCC Jogbox – User Manual... - Page 13 BB 8 Software Architecture 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 • 13...
-
Page 14: Operation
ENABLE Must be pressed and held while deflecting the joystick to allow the machine to move. This prevents unwanted movement. This button has no function in jogbox mode as the CMM has control of this button JOYSTICK Provides operator with an independent means of moving the machine's axes at variable speeds. A connection to the three DC servo motors within the controller allows independent axis selection and movement. -
Page 15: Keypad
Keypad The JOGBOX keypad contains controls for operating the machine. The symbols in the following list of functions refer to the symbols on the Keypad diagram. The functions of these buttons are: PROBE ENABLE: This informs the operator of one of the following three conditions: •... - Page 16 SHIFT inactive. RUN resumes execution of a program placed in HOLD state, activated by SHIFT (lighting SHIFT LED) then pressing RUN; RUN LED lights. 16 • dCC Jogbox – User Manual...
- Page 17 JOG MODE: PROBE/PART/MACH LEDs light to identify each motion mode that machine is in. These settings can be toggled to vary the way probe is manually steered. This promotes probe contact at right angles to part, which improves measuring accuracy and repeatability. •...
-
Page 18: Touchscreen Display
TOUCHSCREEN DISPLAY TOUCHSCREEN DISPLAY Log In Enter Passcode • Operator • Programmer 18 • dCC Jogbox – User Manual... - Page 19 Change Passkey Setting – Customize • Change Machine Picture • Language • Zero Joysticks • Set Logout time 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 • 19...
- Page 20 Audio - Notification sounds o Volume o Mute Power Management Change Backlight Brightness Set Auto Backlight Timeout 20 • dCC Jogbox – User Manual...
- Page 21 Position – set the operator postition Check for updates Swipe left to go to the Home page 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 • 21...
- Page 22 Swipe right to return to the Settings page • Type/Model of CMM • User Data • Interactive Manual jogbox • Machine Name • User Type Swipe right to go to the Routine page 22 • dCC Jogbox – User Manual...
- Page 23 Swipe down to go to the JOGMode Routine Page Swipe left to return to the Home page Run Routine • Load Edit programs o Load recent programs o Load favorite programs o Browse programs • Results View Routine - 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 • 23...
- Page 24 Swipe down to go to the JOGMode Swipe down to go to the JOGMode JOGMode XYZ Swipe right to go to the JOGModeWABC Swipe right to return to JOGMode XYZ Swipe up to return to the previous page 24 • dCC Jogbox – User Manual...
- Page 25 Take picture / Favorite 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 • 25...
- Page 26 Alert (Popup) • Crash Detected • Controller Error • Software Error Resolve/Close/Dismiss Alert, returns to previous screen 26 • dCC Jogbox – User Manual...
-
Page 27: Appendix A - Battery Replacement
Appendix A – Battery Replacement Only personnel trained in proper handling and disposal should replace the Lithium batteries. Replace only with Lithium batteries of the same type from Hexagon and no others. Danger Do not handle the Lithium batteries without protection gear. -
Page 28: Appendix B - Glossary
Appendix B - Glossary Text… 28 • dCC Jogbox – User Manual... -
Page 29: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity – Applies to European Union 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 • 29... - Page 30 FCC Statement FCC 15.19 (a) (3) This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC 15.21 NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
- Page 31 5G Wi-Fi Restriction information Operation in the band 5150-5350MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. IC statement This device complies with RSS-247 and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 32 www.hexagonMI.com...
