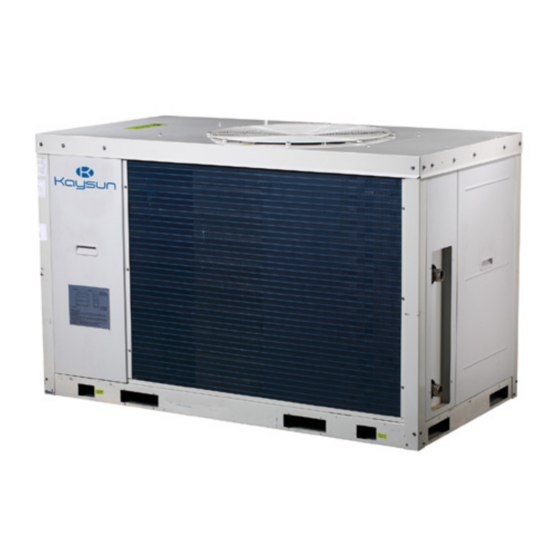

Kaysun KEM-30 DRS4 Service Manual

Dc inverter air-cooled modular chiller
Hide thumbs Also See for KEM-30 DRS4:
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
DC Inverter Air-cooled Modular Chiller
KEM-30 DRS4
KEM-60 DRS4
KEM-30 DRS4 KH
KEM-60 DRS4 KH
