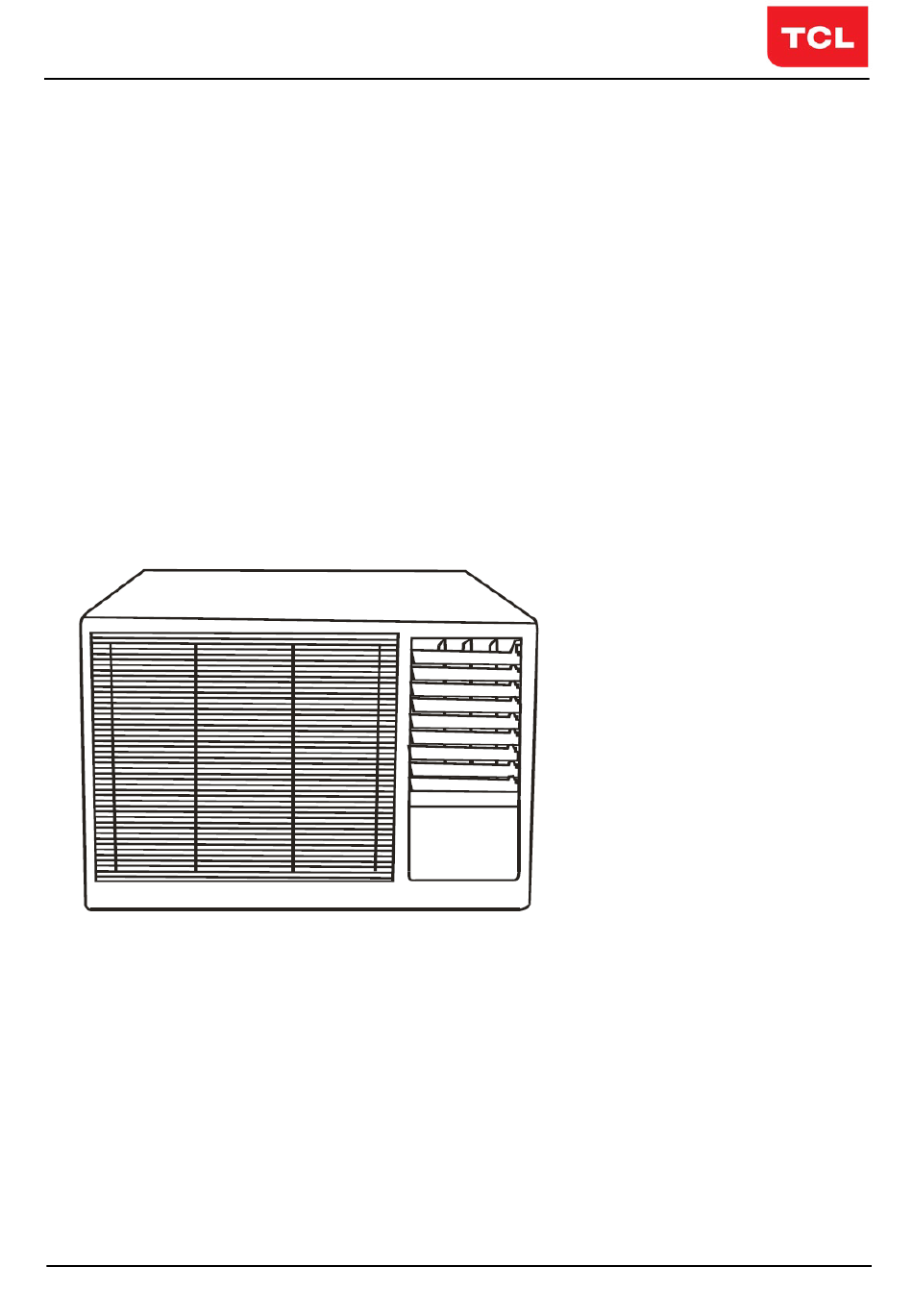

- Page 1 Window/Wall Box Air Conditioner Cooling Only: TCLWB05C, TCLWB07C & TCLWB09C Reverse Cycle: TCLWB07, TCLWB09 & TCLWB14 INSTRUCTION MANUAL PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT. www.tclac.com.au...
-
Page 2: Table Of Contents
Table of Contents Page Introduction Operating Instructions Electrical Specifications Installation Instructions Care and Maintenance Trouble Shooting Guide - 1 -... -
Page 3: Introduction
Introduction Front Cover Air inlet grille (Indoor) Cabinet Air outlet grille (Indoor) Air inlet grille (Outdoor) Vent Lever Control Panel Air filter Fig.1-1 TCLWB05C/TCLWB07C/TCLWB09C SLEEP TCLWB07/TCLWB09 TCLWB14 - 2 -... - Page 4 Compressor running...
-
Page 5: Operating Instructions
Operating Instructions Remote controller The remote controller transmits signals to the system. Button Function SLEEP TIMER ON TMIER OFF FEEL AUTO HIGH COOL (TEMP UP) Increase the temperature or time by 1 unit SWING SLEEP (TEMP DN) Decrease the temperature or time by 1 unit TIMER SWING MODE... -
Page 6: Electrical Specifications
CAUTION If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. TCLWB05C/TCLWB07C/TCLWB09C RECEPTACLE AND FUSE TYPES TCLWB05C TCLWB07C TCLWB09C RATED VOLTS 250V 250V 250V 7.1A... -
Page 7: Installation Instructions
Installation instructions REMOVE ALL THE SHIPPING PARTS BEFORE INSTALLATION LOCATION Select a location that can support the weight of the air conditioner and one that will not cause increased operation noise and vibration. Direct sunlight is unfavorable for efficient cooling. Select a place where there is no obstacles near the air inlet and outlet. - Page 8 Installation instructions CAUTION Do not install air conditioner in the place where flammable gas leaks are a possibility. The minimum clearance from the appliance to combustible surfaces is 100mm; (Only for electric heating) The range of external static pressures at which the appliance was tested is 0-5Pa OPERATION Check the capacity of wiring and power outlet.
- Page 9 Installation instructions 1) Remove the front panel. (Fig.5) Remove the air filter. (Fig.6) Remove screw at the botton of the front panel. (Fig.7) Open the panel cover. Fig.5 2) Remove the screws fix the chassis-fixing board and cabinet. some Models have two more screws on the back of the cabinet.
-
Page 10: Care And Maintenance
Care and Maintenance AIR FILTER The air filter should be washed at least once a month. lf the air filter remains full of dust, the air flow will decrease and the cooling capacity will be reduced. The filter is behind the cover and to be pulled out from right hand side. Wash the air filter with water and detergent. -
Page 11: Troubleshooting Guide
Troubleshooting Guide Never use hot water above 50 ,benzine,gasoline,acid,thinner or brush to wipe off dirt because they will damage the plastic surface and the coating. LONG OFF PERIOD MAINTENANCE Operate the fan alone ("LOW FAN"or"HIGH FAN") for half a day to dry out the inside of the unit. - Page 12 CONTACT DETAILS Glen Dimplex Australia Pty Ltd 1340 Ferntree Gully Road Scoresby VIC 3179 Australia Ph: 1300 556 816 http:// 封底 Http://www.tclac.com.au...
