Installation

1

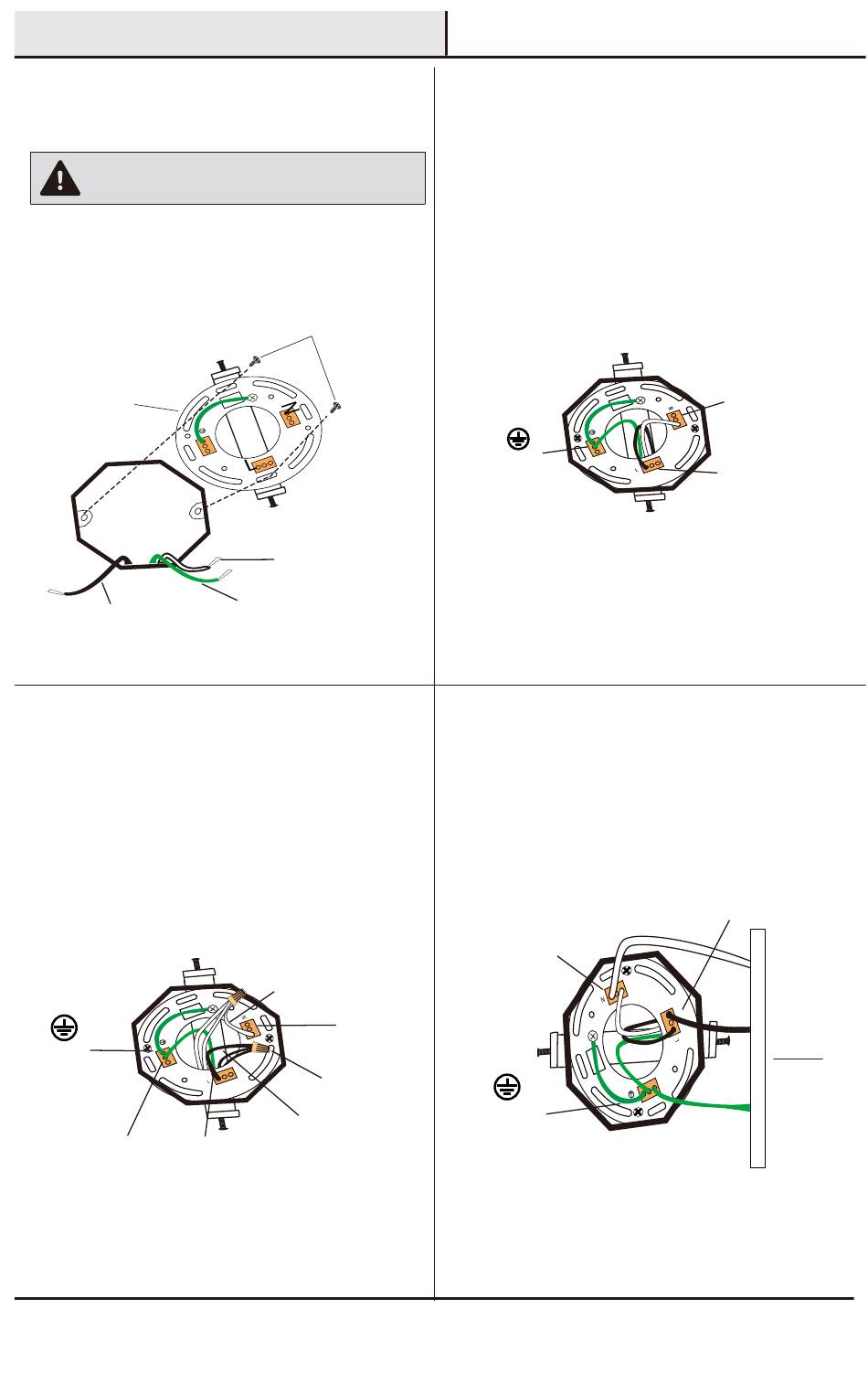

Installing the mounting bracket
DANGER: Turn off the electrical power before starting
installation.
□
Attach the easy connect mounting bracket (BB)
to the electrical box with electrical box screws
(not included).
BB
Electrical
Box
Black
(Live)
Option 2 - multiple electrical
box wires
□
For multiple green (ground), black (live) and
white (neutral) wires joined in the electrical
box (house wiring), attach a single "green" (FF),
"black" (EE) and "white" (DD) jumper wire before
connecting. Strip 7 mm from the 6 in. jumper wires
(AWG 12-24) supplied. Then connect (push) wires
into the correct inserts.
Green
(Ground)
FF
Electrical box screws
White
(Neutral)
Green
(Ground)
DD
(N)
White
(Neutral)
AA
(L)
Black
EE
(Live)
2
Connecting the house wires
Option 1
□
Connect (push) electrical wires from the electric
box (house wiring) into the correct inserts.
Green
(Ground)
3
Connecting the light fixture
□
Connect (push) electrical wires from the
fixture (A) into the correct inserts.
(N)
White
(Neutral)
Green
(Ground)
5
WWW.HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
(N)
White
(Neutral)
(L)
Black (Live)
(L)
Black
(Live)
A
